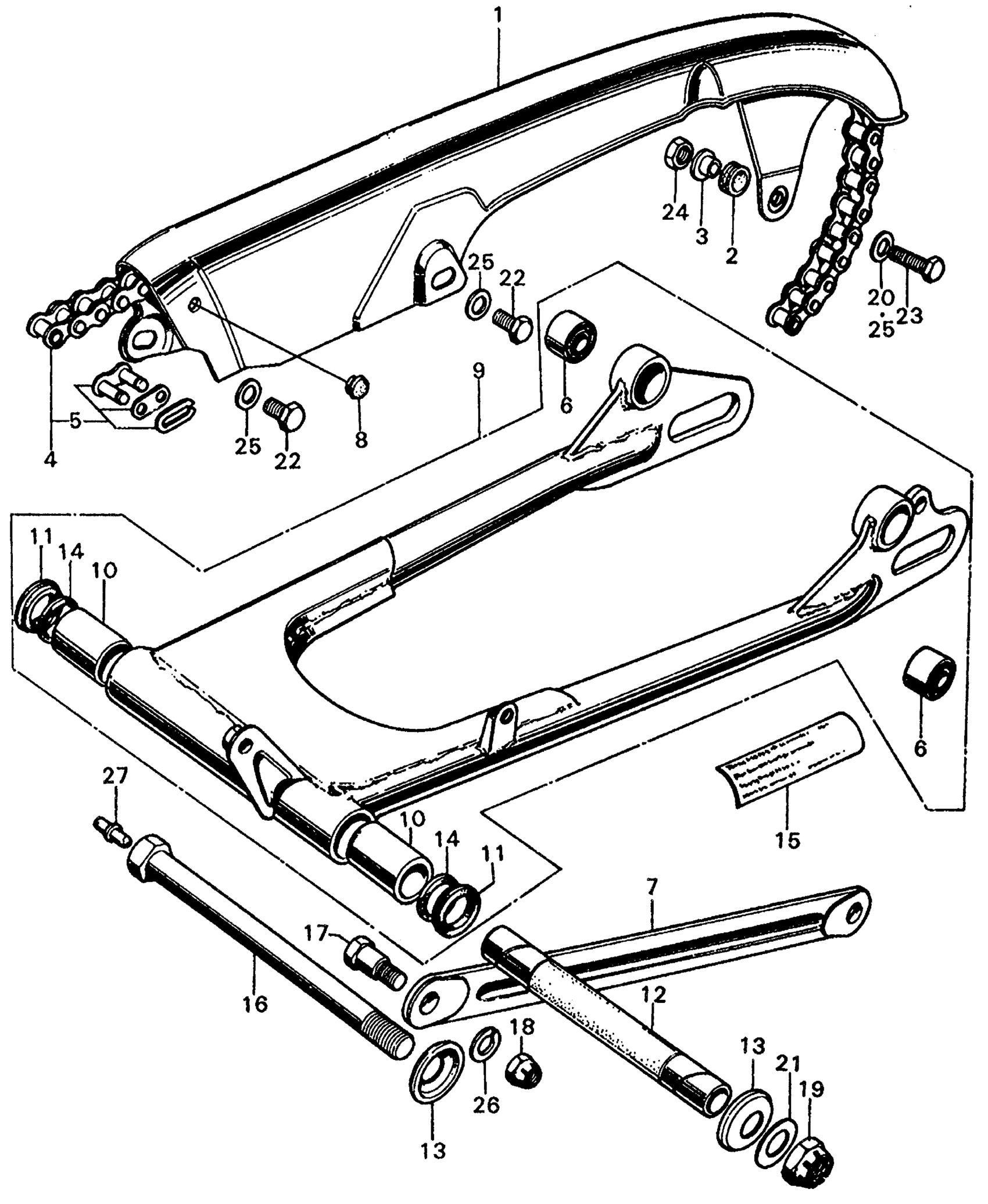

Honda CL450K4A MOTORCYCLE, JPN, VIN# CL450-4100001 SWINGARM + DRIVE CHAIN Diagram

#

Description
Price

4

CHAIN, DRIVE (DK530HT-92L)

40530-292-305

Unavailable

4

CHAIN, DRIVE (DK530HT-92L) | Use up to Frame SN 4109034 This part replaces 40530-292-611.

40530-292-305

Unavailable

5

MASTER LINK (NOT AVAILABLE) | Use up to Frame SN 4102369

40531-300-003

Unavailable

5

MASTER LINK (STAKING TYPE) (NOT AVAILABLE) | Use from Frame SN 4109035 This part replaces 40531-300-751.

40531-341-305

Unavailable

5

MASTER LINK (STAKING TYPE) (NOT AVAILABLE) | Use from Frame SN 4109035

40531-341-305

Unavailable

6

RUBBER, RR. SWINGARM (LOWER)

40548-268-000

$7.95

7

ARM, R. BRAKE STOPPER (NOT AVAILABLE)

43431-292-000

Unavailable

9

SWINGARM (NOT AVAILABLE)

52100-292-000Z

Unavailable

10

BUSH, RR. SWINGARM PIVOT This part replaces 52108-292-300.

52108-300-300

Unavailable

10

BUSH, RR. SWINGARM PIVOT

52108-300-300

Unavailable

11

BUSH, RR. SWINGARM PIVOT THRUST

52109-283-300

$14.64

12

COLLAR, SWINGARM CENTER (NOT AVAILABLE)

52141-292-000

Unavailable

13

CAP, DUST SEAL

52144-283-010

$4.66

14

RING, RR. SWINGARM FELT

52145-283-000

Unavailable

15

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

16

BOLT, SWINGARM PIVOT (NOT AVAILABLE)

90121-292-000

Unavailable

17

BOLT, RR. BRAKE STOPPER ARM (NOT AVAILABLE)

90133-283-000

Unavailable

18

NUT, SELF-LOCK (8MM)

90349-001-000

$2.83

19

NUT, LOCK (14MM)

90354-268-000

$6.78

21

WASHER, RR. SWINGARM PIVOT BOLT

90526-268-000

$3.10

22

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

22

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

22

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

23

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

23

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

23

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

23

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

23

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

23

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

25

WASHER, PLAIN (6MM)

94101-06800

$1.49

26

WASHER, SPRING (8MM)

94111-10000

$1.49

27

FITTING, GREASE (A.45)

96201-30001

$1.49
