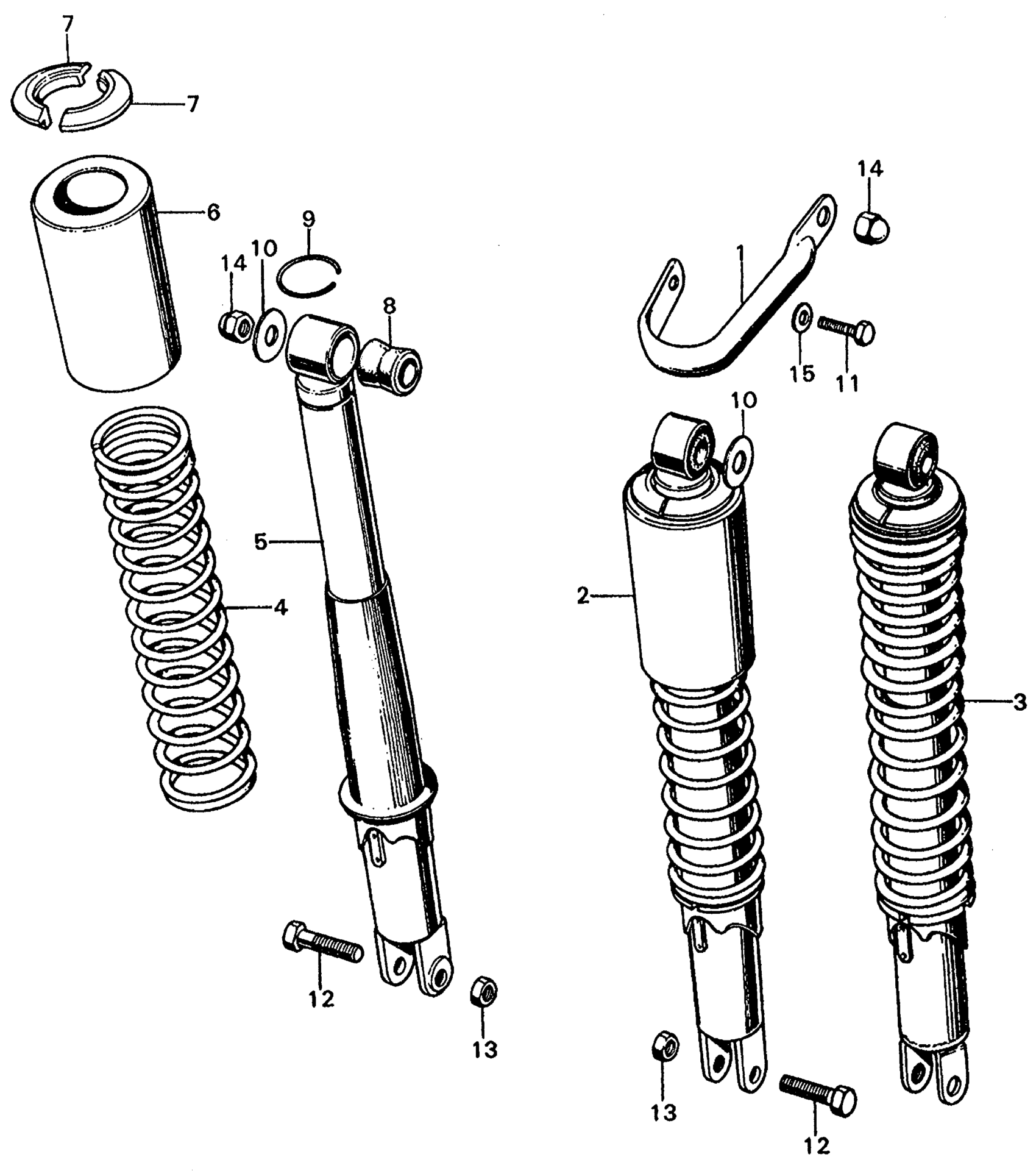

Honda CL450K4A MOTORCYCLE, JPN, VIN# CL450-4100001 REAR SHOCK ABSORBER K3-K4 Diagram

#

Description
Price

1

GRIP, SET (NOT AVAILABLE)

50316-292-000

Unavailable

3

SHOCK ABSORBER ASSY., RR. (NOT AVAILABLE)

52400-320-670

Unavailable

4

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)

52401-292-670

Unavailable

7

STOPPER, SPRING SEAT (NOT AVAILABLE)

52424-292-000

Unavailable

8

RUBBER, JOINT

52484-292-000

$5.87

9

STOPPER (NOT AVAILABLE)

52446-074-003

Unavailable

9

STOPPER (NOT AVAILABLE) This part replaces 52485-300-000.

52446-074-003

Unavailable

10

WASHER, PLAIN (10.3MM)

90527-230-000

$1.95

11

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

11

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

11

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

11

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

11

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

11

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

12

BOLT, HEX. (10X36) This part replaces 92000-10036-0B.

92101-10036-0B

Unavailable

13

NUT, HEX. (10MM)

94002-10000-0S

$4.06

14

NUT, FLANGE (10MM)

90309-315-000

$5.35

15

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

15

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

15

WASHER, PLAIN (6MM)

94101-06800

$1.49
