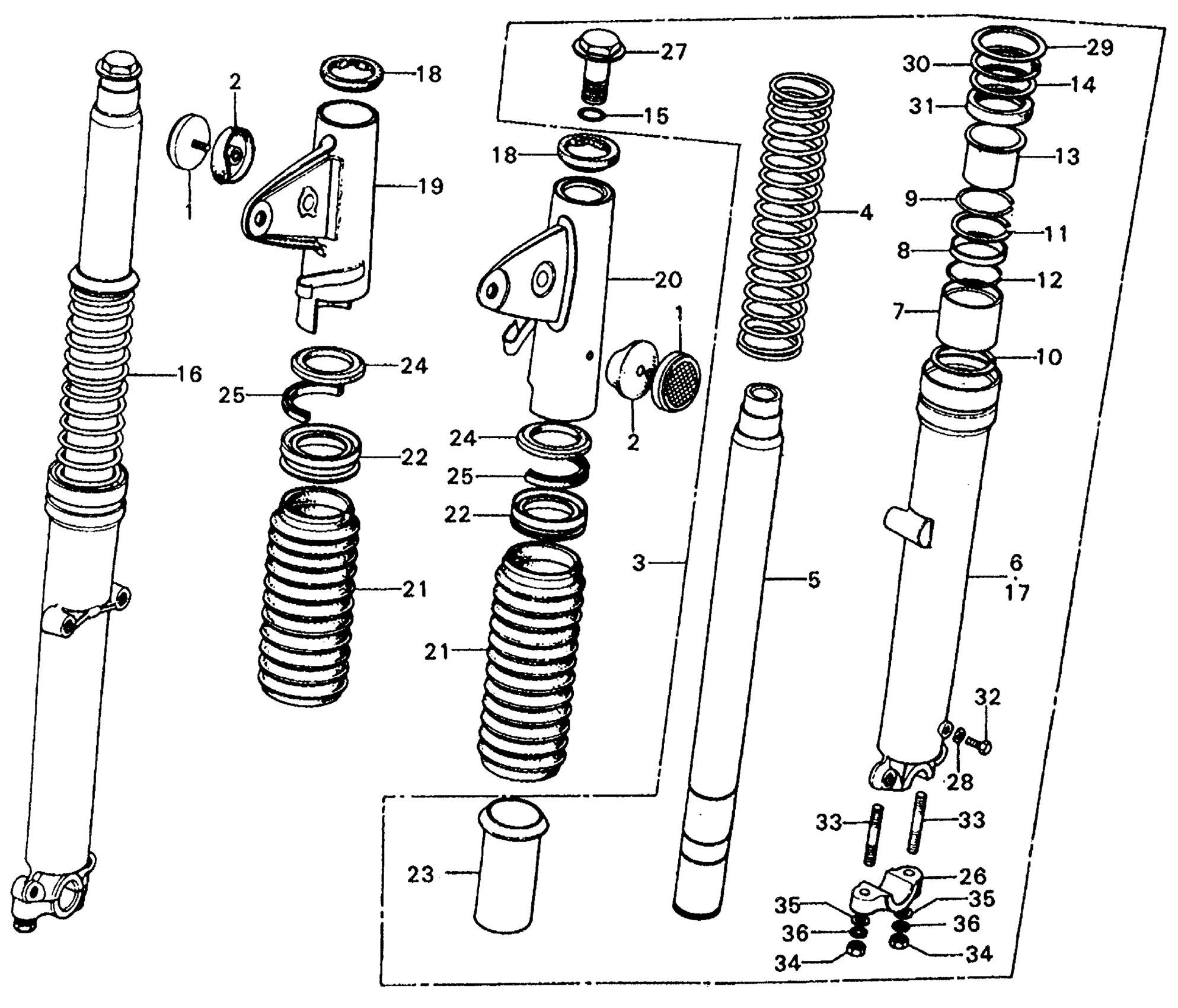

Honda CL450K4A MOTORCYCLE, JPN, VIN# CL450-4100001 FRONT FORK K3-K4 Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX This part replaces 33741-286-670.

33741-315-000

$25.26

1

REFLECTOR, FR. REFLEX

33741-315-000

$25.26

2

BASE, FR. REFLEX REFLECTOR This part replaces 33743-286-670.

33743-341-670

Unavailable

2

BASE, FR. REFLEX REFLECTOR

33743-341-670

Unavailable

3

FORK ASSY., R. FR.

51400-320-010

Unavailable

4

SPRING, FR. FORK (NOT AVAILABLE)

51401-292-010

Unavailable

5

PIPE, FR. FORK (NOT AVAILABLE)

51410-320-010

Unavailable

6

CASE, R. FR. FORK (LOWER) (NOT AVAILABLE)

51420-320-010

Unavailable

7

PISTON, FR. FORK

51442-319-000

Unavailable

8

VALVE, FR. DAMPER (NOT AVAILABLE)

51443-273-000

Unavailable

9

RING, FR. FORK STOPPER (NOT AVAILABLE)

51444-273-000

Unavailable

10

RING, FR. FORK PISTON SNAP (NOT AVAILABLE)

51445-319-000

Unavailable

11

RING, SHOCK VALVE STOPPER (NOT AVAILABLE)

51446-273-000

Unavailable

12

RING, PISTON STOPPER (NOT AVAILABLE)

51447-273-000

Unavailable

13

GUIDE, FR. FORK PIPE

51451-319-000

Unavailable

14

RING, BACK-UP (NOT AVAILABLE)

51452-319-000

Unavailable

15

O-RING (11X3) (NOT AVAILABLE)

51493-292-780

Unavailable

16

CUSHION ASSY., L. FR.

51500-320-010

Unavailable

17

CASE, L. FR. FORK (LOWER)

51520-320-010

Unavailable

18

RUBBER, FORK COVER (UPPER)

51601-292-010

Unavailable

19

COVER, R. FR. FORK (UPPER) (NOT AVAILABLE)

51602-294-670Z

Unavailable

20

COVER, L. FR. FORK (UPPER) (NOT AVAILABLE)

51606-294-670Z

Unavailable

21

BOOT, FR. FORK

51611-292-020

Unavailable

22

CAP, SPRING SEAT (NOT AVAILABLE)

51612-292-010

Unavailable

23

SEAT, SPRING (NOT AVAILABLE)

51613-292-000

Unavailable

24

RUBBER, FR. FORK COVER (LOWER)

51622-292-010

$5.84

25

GASKET, FR. FORK RIB (NOT AVAILABLE)

51625-292-300

Unavailable

26

HOLDER 1C, FR. FORK AXLE This part replaces 51634-292-000.

95014-41000

$13.38

26

HOLDER 1C, FR. FORK AXLE

95014-41000

$13.38

27

BOLT, FR. FORK (NOT AVAILABLE)

90123-292-780

Unavailable

28

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

29

WASHER, SPRING SEAT (NOT AVAILABLE)

90550-292-000

Unavailable

30

CIRCLIP (OUTER) (47MM) (NOT AVAILABLE)

90601-319-000

Unavailable

31

OIL SEAL (35X46X11)

91255-292-003

$14.61

31

OIL SEAL (35X46X11) This part replaces 91255-300-013.

91255-292-003

$14.61

32

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

32

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

33

BOLT, STUD (8X50) This part replaces 92700-08050-3B.

92900-08028-3B

$1.59

33

BOLT, STUD (8X50) This part replaces 92700-08050-30.

92900-08028-3B

$1.59

33

BOLT, STUD (8X50)

92900-08028-3B

$1.59

34

NUT, HEX. (8MM)

94030-08000

$1.49

35

WASHER, PLAIN (8MM)

94101-08000

$1.49

36

WASHER, SPRING (8MM)

94111-08000

$1.49
