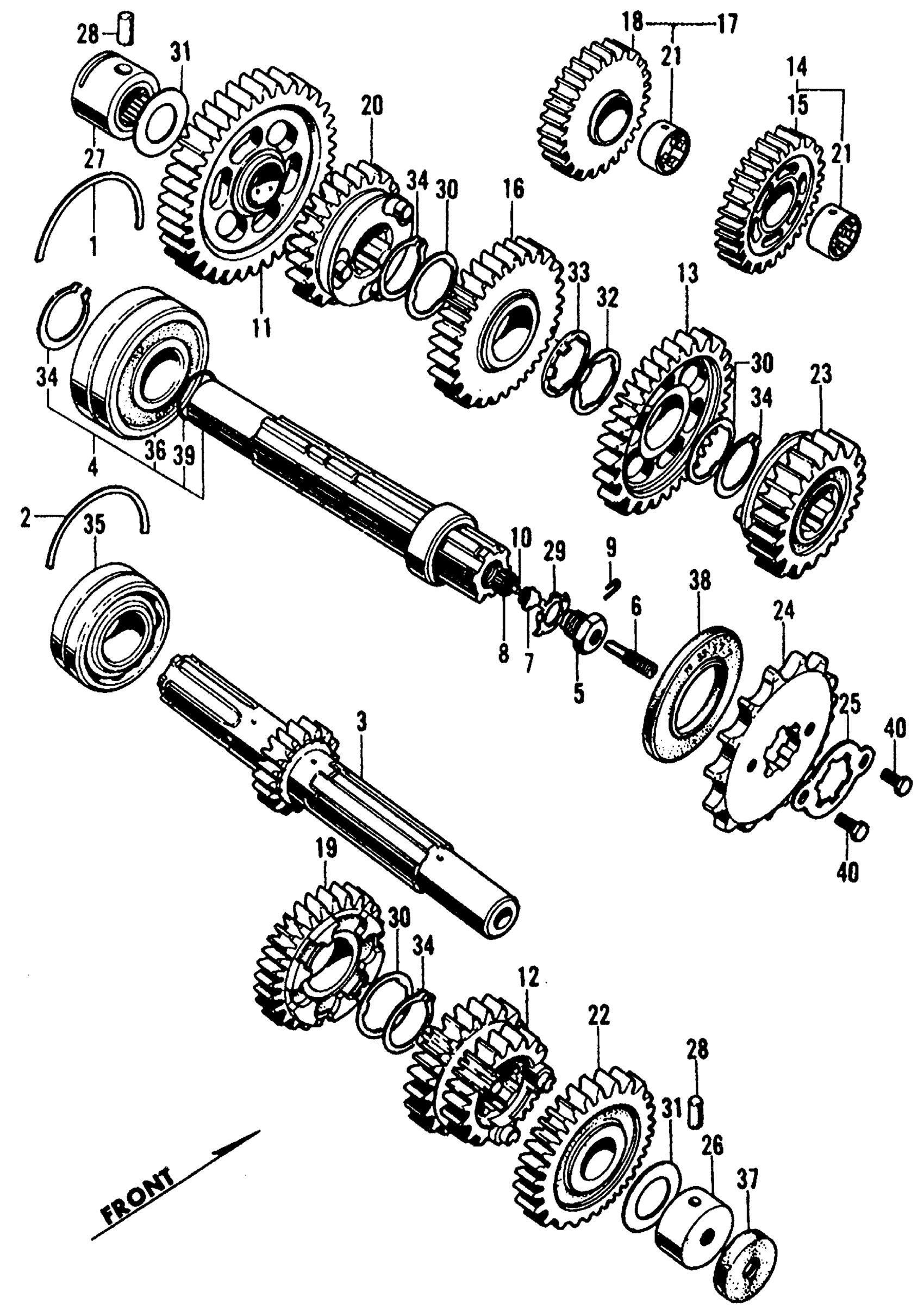

Honda CL450K3A MOTORCYCLE, JPN, VIN# CL450-4000001 TRANSMISSION Diagram

#

Description
Price

1

RING, BEARING SETTING (57MM) (NOT AVAILABLE)

13491-283-000

Unavailable

2

SET-RING (520) This part replaces 13492-283-000.

95015-25200

Unavailable

2

SET-RING (520)

95015-25200

Unavailable

3

MAINSHAFT, TRANSMISSION (NOT AVAILABLE)

23211-292-040

Unavailable

4

COUNTERSHAFT, TRANSMISSION

23220-319-030

Unavailable

5

PLUG, OIL RESERVE (NOT AVAILABLE)

23311-319-320

Unavailable

6

SCREW, ADJUSTING OIL RESERVE (NOT AVAILABLE)

23312-319-310

Unavailable

7

RUBBER, ORIFICE (NOT AVAILABLE)

23314-319-300

Unavailable

8

ELEMENT, OIL RESERVE (NOT AVAILABLE)

23315-319-300

Unavailable

9

CLIP, SCREW SET (NOT AVAILABLE)

23317-319-300

Unavailable

10

PIN, STOPPER (NOT AVAILABLE)

23318-319-310

Unavailable

11

GEAR, COUNTERSHAFT LOW (41T)

23421-292-010

Unavailable

12

GEAR, SECOND THIRD MAINSHAFT (22T-26T)

23431-292-060

Unavailable

14

GEAR SET, COUNTERSHAFT (NOT AVAILABLE)

23441-292-345

Unavailable

17

GEAR, THIRD COUNTERSHAFT (NOT AVAILABLE)

23461-292-345

Unavailable

19

GEAR, MAINSHAFT FOURTH (29T)

23471-292-030

Unavailable

20

GEAR, COUNTERSHAFT FOURTH (29T)

23481-292-030

Unavailable

21

BUSH, SPLINE (28MM) | Use from Engine SN 3006033

23485-319-000

Unavailable

22

GEAR, MAINSHAFT FIFTH (32T)

23491-292-030

Unavailable

23

GEAR, COUNTERSHAFT FIFTH (27T)

23511-292-040

Unavailable

24

SPROCKET, DRIVE (15T) (NOT AVAILABLE) This part replaces 23801-292-000.

23801-348-690

Unavailable

24

SPROCKET, DRIVE (15T) (NOT AVAILABLE) This part replaces 23801-346-000.

23801-348-690

Unavailable

24

SPROCKET, DRIVE (15T) (NOT AVAILABLE)

23801-348-690

Unavailable

25

PLATE, DRIVE SPROCKET FIXING

23811-292-000

$2.51

26

BEARING, MAINSHAFT

23931-292-000

Unavailable

27

BEARING, COUNTERSHAFT

23932-292-000

Unavailable

28

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

29

WASHER, LOCK (14MM) (NOT AVAILABLE)

90433-319-000

Unavailable

30

WASHER A, THRUST (25MM) (NOT AVAILABLE)

90451-286-000

Unavailable

31

WASHER, THRUST (20MM)

90458-292-000

$3.54

32

WASHER B, THRUST (25MM)

90461-286-000

Unavailable

33

WASHER, LOCK (25MM) (NOT AVAILABLE)

90462-286-000

Unavailable

34

CIRCLIP (OUTER) (25MM)

90602-259-010

$6.16

35

BEARING, RADIAL BALL This part replaces 91001-283-003.

91001-KE8-003

Unavailable

36

BEARING, SPECIAL BALL (5205) (NOT AVAILABLE)

91002-283-000

Unavailable

36

BEARING, SPECIAL BALL (5205) (NOT AVAILABLE) This part replaces 91002-283-003.

91002-283-000

Unavailable

37

OIL SEAL (8X34X8) This part replaces 91203-292-003.

91203-292-005

$13.88

37

OIL SEAL (8X34X8)

91203-292-005

$13.88

38

OIL SEAL (33X57X7) This part replaces 91205-283-010.

91205-283-015

Unavailable

38

OIL SEAL (33X57X7)

91205-283-015

Unavailable

39

O-RING (24.5X1.5) (NOT AVAILABLE)

91306-703-000

Unavailable

40

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

40

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

40

BOLT, HEX. (6X12)

92101-06012-0A

$1.49
