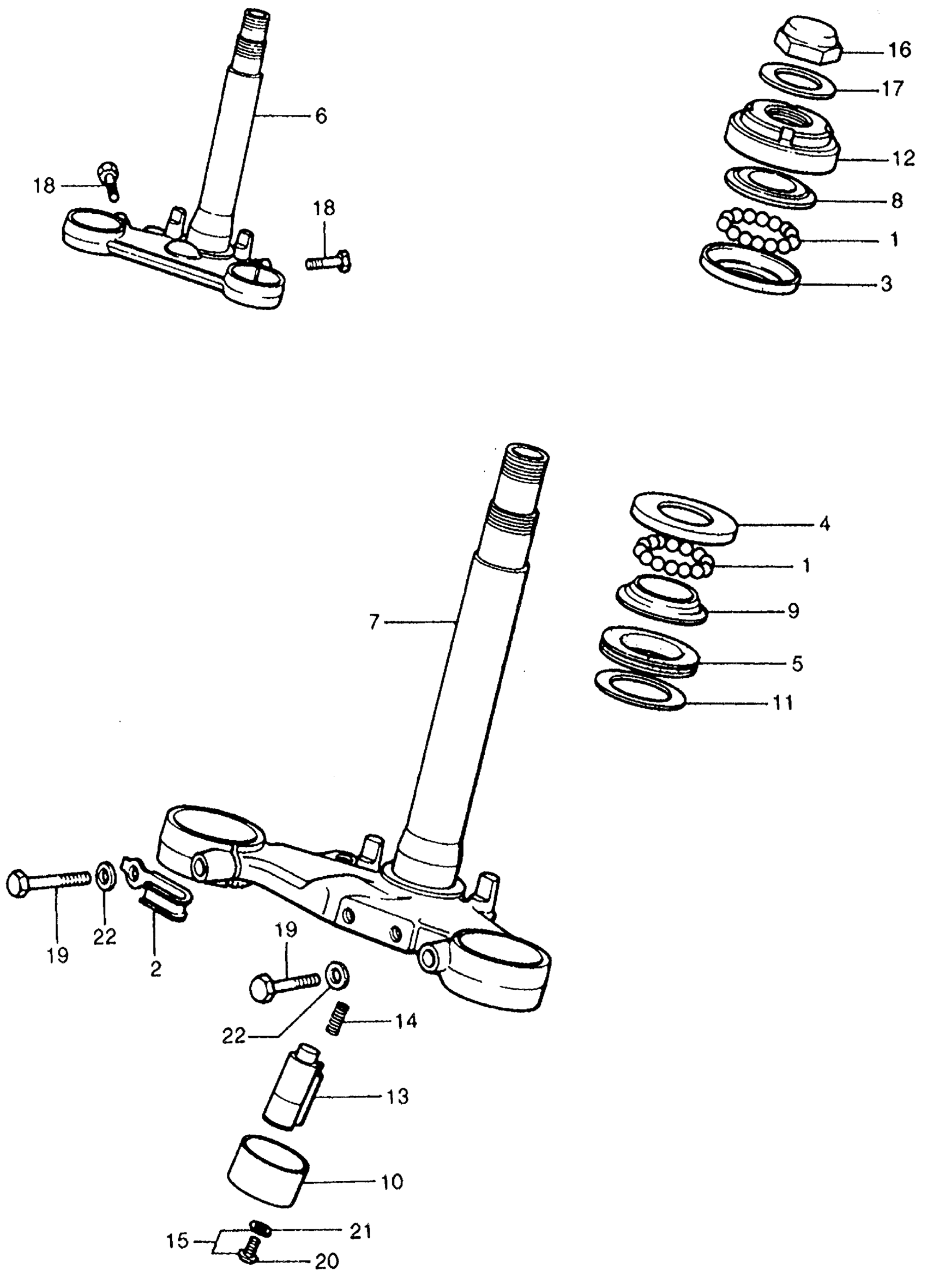

Honda CL450K3A MOTORCYCLE, JPN, VIN# CL450-4000001 STEERING STEM Diagram

#

Description
Price

1

BALL, STEEL (#8) (1/4)

96211-08000

$1.49

3

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$22.12

3

RACE, STEERING BALL (UPPER)

50301-268-010

$22.12

3

RACE, STEERING TOP BALL This part replaces 50301-268-305.

50301-268-010

$22.12

4

RACE, STEERING BALL (LOWER) This part replaces 50302-268-000.

50302-268-010

$21.73

4

RACE, STEERING BALL (LOWER)

50302-268-010

$21.73

4

RACE, STEERING BALL (LOWER) This part replaces 50302-268-305.

50302-268-010

$21.73

5

DUST SEAL This part replaces 53124-250-000.

53214-K0T-J00

$3.03

5

DUST SEAL This part replaces 53214-250-000.

53214-K0T-J00

$3.03

6

STEM, STEERING *NH1* (BLACK) (NOT AVAILABLE) | Use from Frame SN 4012564

53200-292-020B

Unavailable

8

RACE, STEERING TOP CONE This part replaces 53211-268-000.

53211-268-010

$26.89

8

RACE, STEERING CONE (UPPER)

53211-268-010

$26.89

8

RACE, STEERING TOP CONE This part replaces 53211-268-305.

53211-268-010

$26.89

9

RACE, STEERING CONE (LOWER) This part replaces 53212-250-000.

53212-250-010

$21.57

9

RACE, STEERING CONE (LOWER)

53212-250-010

$21.57

9

RACE, STEERING CONE (LOWER) This part replaces 53212-250-305.

53212-250-010

$21.57

10

COVER, HANDLEBAR LOCK CASE (NOT AVAILABLE) | Use up to Frame SN 4012563

53215-230-000

Unavailable

10

COVER, HANDLEBAR LOCK CASE (NOT AVAILABLE) | Use from Frame SN 4012564

53215-317-000

Unavailable

11

WASHER, STEERING HEAD DUST SEAL

53215-250-000

$2.34

12

THREAD, STEERING HEAD TOP

53220-283-010

Unavailable

13

LOCK, HANDLEBAR

35010-230-010

Unavailable

13

LOCK, HANDLEBAR This part replaces 53600-230-000.

35010-230-010

Unavailable

14

SPRING, HANDLEBAR LOCK (NOT AVAILABLE)

53631-268-020

Unavailable

16

NUT, STEERING STEM This part replaces 90304-300-000.

90304-415-000

$19.83

16

NUT, STEERING STEM This part replaces 90304-323-670.

90304-415-000

$19.83

16

NUT, STEERING STEM

90304-415-000

$19.83

16

NUT, STEERING STEM This part replaces 95020-11300.

90304-415-000

$19.83

17

WASHER, STEERING STEM

90503-283-000

$4.37

18

BOLT, HEX. (10X36) This part replaces 92000-10036-0A.

92101-10036-0A

Unavailable

20

SCREW, PAN (3X8)

93500-03008-0A

$1.49

21

WASHER, PLAIN (3MM)

94101-03000

$1.49

22

WASHER, PLAIN (10MM)

94102-10000

$1.49
