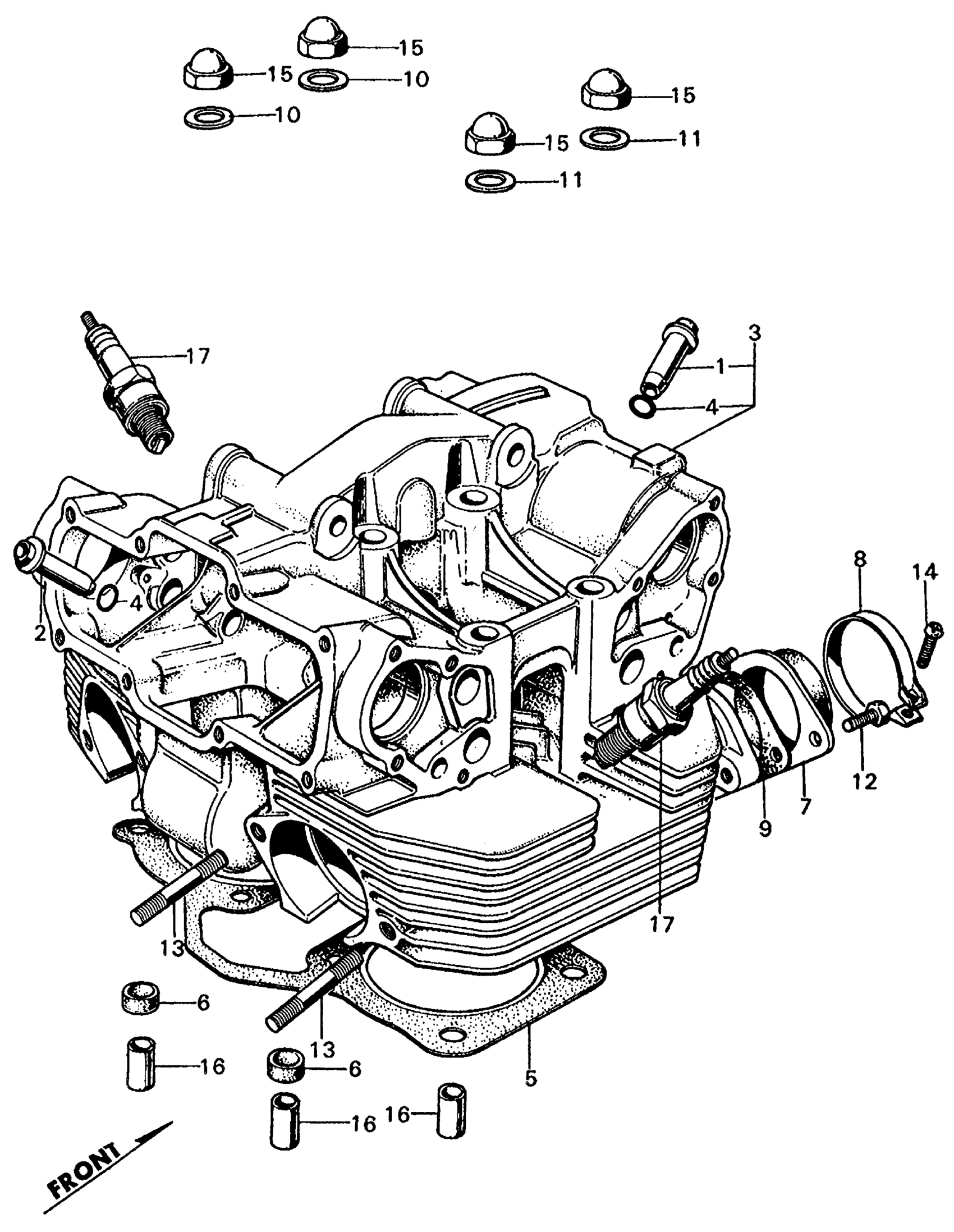

Honda CL450K3A MOTORCYCLE, JPN, VIN# CL450-4000001 CYLINDER HEAD Diagram

#

Description
Price

1

GUIDE, EX. VALVE This part replaces 12021-292-300.

12023-319-405

Unavailable

1

GUIDE, EX. VALVE

12023-319-405

Unavailable

3

CYLINDER HEAD (NOT AVAILABLE) This part replaces 12200-292-080.

12200-292-090

Unavailable

3

CYLINDER HEAD (NOT AVAILABLE)

12200-292-090

Unavailable

4

O-RING (12X1) (NOT AVAILABLE)

12209-283-000

$9.45

5

GASKET, CYLINDER HEAD This part replaces 12251-283-010.

12251-283-306

Unavailable

5

GASKET, CYLINDER HEAD This part replaces 12251-283-020.

12251-283-306

Unavailable

5

GASKET, CYLINDER HEAD

12251-283-306

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12909-283-000.

12909-428-003

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12909-333-000.

12909-428-003

Unavailable

6

GASKET, CYLINDER HEAD

12909-428-003

Unavailable

7

INSULATOR, CARBURETOR

16211-283-000

Unavailable

8

BAND, AIR CLEANER CONNECTING TUBE (50) This part replaces 16223-283-000.

95018-50250

$7.58

8

BAND, AIR CLEANER CONNECTING TUBE (50) This part replaces 90652-GHB-680.

95018-50250

$7.58

8

BAND, AIR CLEANER CONNECTING TUBE (50)

95018-50250

$7.58

9

GASKET This part replaces 16229-283-010.

16229-283-306

Unavailable

10

WASHER, SEALING (10MM) (NOT AVAILABLE)

90441-283-000

Unavailable

11

WASHER B, SEALING (10MM)

90442-283-000

$2.51

12

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

12

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

12

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

12

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

12

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

12

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

13

BOLT, STUD (8X56) (NOT AVAILABLE)

92700-08056-05

Unavailable

14

SCREW, PAN (5X16)

93500-05016-0A

$1.49

15

NUT, CAP (10MM) This part replaces 94021-10020.

94021-10020-0S

$2.08

15

NUT, CAP (10MM)

94021-10020-0S

$2.08

15

NUT, CAP (10MM) This part replaces 94022-10000.

94021-10020-0S

$2.08

16

PIN, KNOCK (12X24) (NOT AVAILABLE)

94301-12240

Unavailable

17

SPARK PLUG (B8ES) (NGK) This part replaces 98079-58810.

98079-58840

$2.56

17

SPARK PLUG (B8ES) (NGK)

98079-58840

$2.56

17

SPARK PLUG (B8ES) (NGK) This part replaces 98079-58840-S.

98079-58840

$2.56

17

SPARK PLUG (B8ES) (NGK) This part replaces 98079-58860.

98079-58840

$2.56

17

SPARK PLUG (W24ES) (DENSO) (NOT AVAILABLE)

98079-59851

Unavailable
