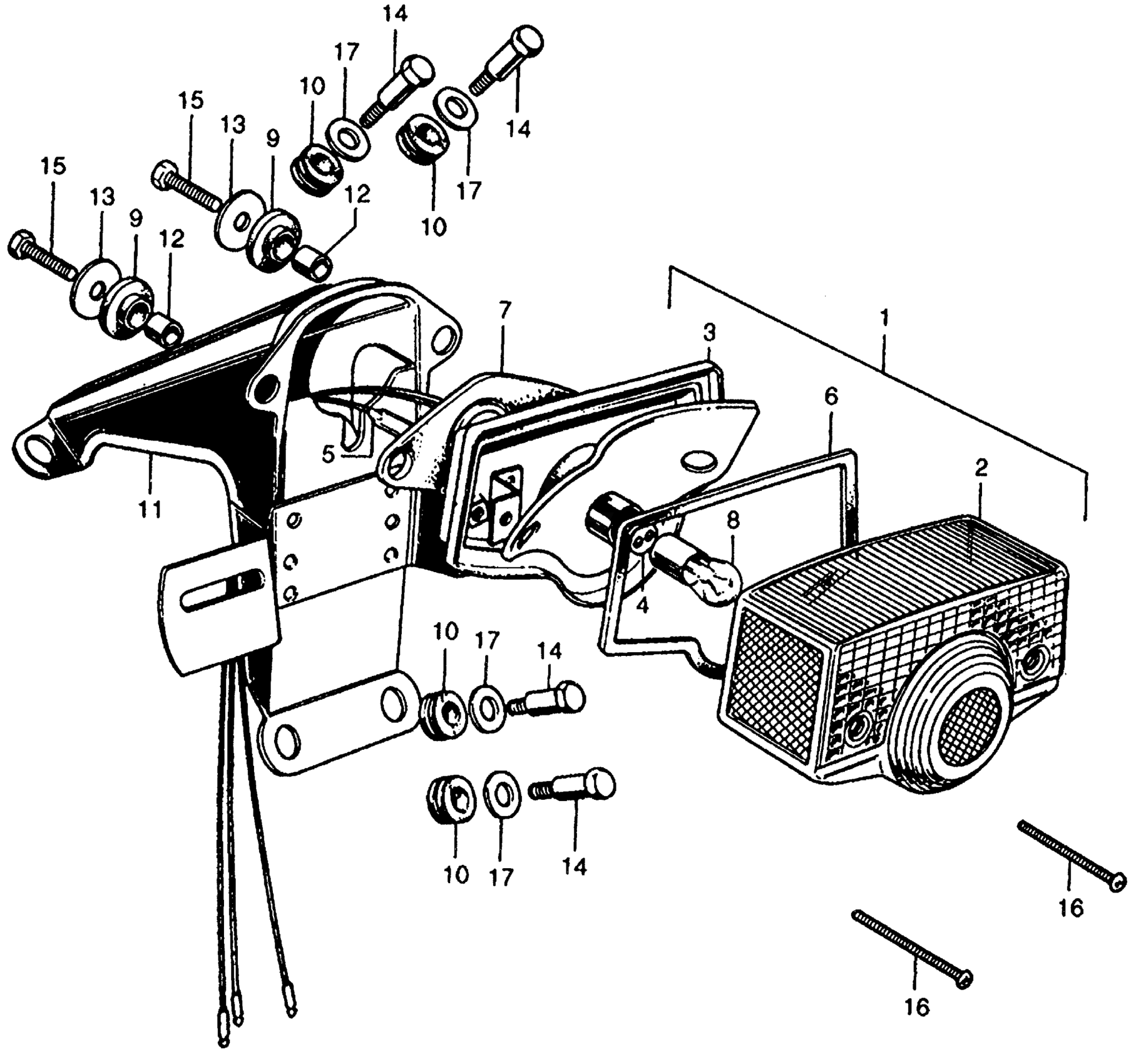

Honda CL450K2A MOTORCYCLE, JPN, VIN# CL450-1012469 TAILLIGHT II Diagram

#

Description
Price

1

TAILLIGHT ASSY. (NOT AVAILABLE)

33700-292-671

Unavailable

2

LENS, TAILLIGHT

33702-077-671

$36.90

3

BASE, TAILLIGHT

33703-077-671

Unavailable

4

CABLE, TAILLIGHT (NOT AVAILABLE)

33707-292-013

Unavailable

4

WIRE, TAILLIGHT

33708-077-671

Unavailable

5

CABLE, TAILLIGHT GROUND (NOT AVAILABLE)

33708-292-670

Unavailable

6

GASKET, TAILLIGHT

33709-077-671

$3.41

7

GASKET, TAILLIGHT BASE (NOT AVAILABLE)

33718-077-671

Unavailable

8

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 33551-568-610.

34906-313-671

$6.67

8

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 34901-504-003.

34906-313-671

$6.67

8

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 34906-268-810.

34906-313-671

$6.67

8

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY)

34906-313-671

$6.67

9

GASKET B, TAILLIGHT BASE

33719-077-671

$1.59

10

RUBBER, BRACKET CUSHION

84705-292-000

$2.79

11

BRACKET *NH1* This part replaces 84701-292-671B.

84701-292-305B

Unavailable

12

COLLAR, NUMBER BRACKET SETTING

84706-286-000

$2.99

13

WASHER (18MM)

90581-831-650

$1.87

14

BOLT, TAILLIGHT SETTING

90162-283-000

$4.24

14

BOLT, TAILLIGHT SET (NOT AVAILABLE)

90165-292-000

Unavailable

15

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

15

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

15

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

16

SCREW, PAN (4X50)

93500-04050-0A

$1.49

17

WASHER, PLAIN (8MM)

94101-08000

$1.49
