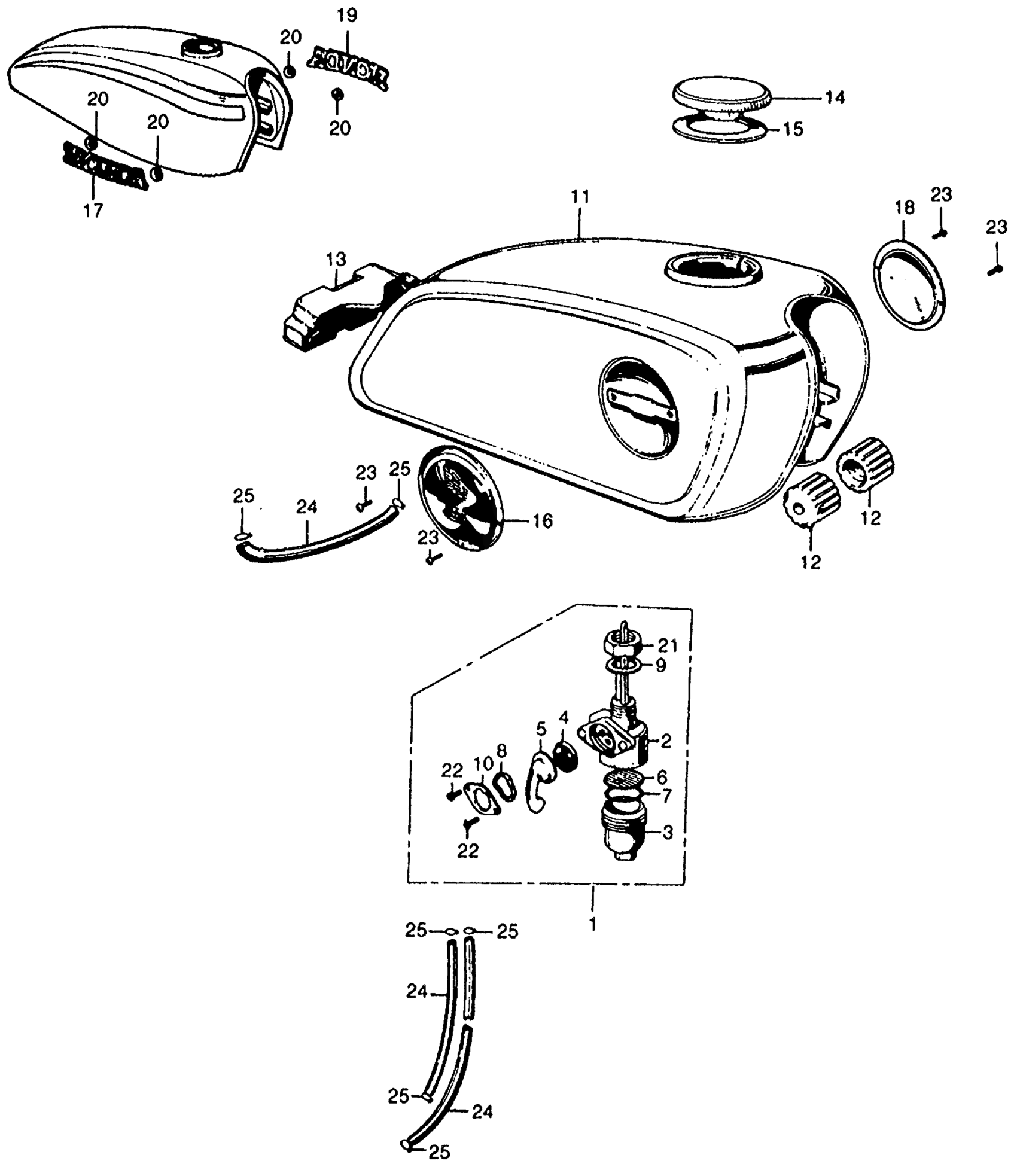

Honda CL450K2A MOTORCYCLE, JPN, VIN# CL450-1012469 FUEL TANK Diagram

#

Description
Price

1

PETCOCK ASSY.

16950-292-000

$72.05

2

BODY, PETCOCK (NOT AVAILABLE)

16951-292-000

Unavailable

3

CUP, FUEL STRAINER

16952-028-000

Unavailable

3

CUP, FUEL STRAINER This part replaces 16952-283-000.

16952-028-000

Unavailable

4

GASKET, PETCOCK

16953-283-000

$12.77

5

LEVER, FUEL (NOT AVAILABLE)

16953-298-000

Unavailable

6

SCREEN, FUEL STRAINER This part replaces 16954-283-000.

16957-028-000

$16.22

6

SCREEN, FUEL STRAINER This part replaces 16957-011-000.

16957-028-000

$16.22

6

SCREEN, FUEL STRAINER

16957-028-000

$16.22

6

SCREEN, FUEL STRAINER This part replaces 16957-028-004.

16957-028-000

$16.22

7

O-RING (2.4X18.6) This part replaces 16955-283-000.

16075-GHB-B00

$4.67

8

SPRING, PETCOCK LEVER

16955-816-004

Unavailable

9

GASKET, JOINT NUT

16956-283-000

$4.67

10

PLATE, PETCOCK LEVER SETTING (NOT AVAILABLE)

16961-298-000

Unavailable

11

TANK, FUEL *NH2M* (METALLIC SILVER) (NOT AVAILABLE)

17050-294-671T

Unavailable

11

TANK, FUEL *R3C* (CANDY RED) (NOT AVAILABLE)

17050-294-671XJ

Unavailable

11

TANK, FUEL *PB1C* (CANDY BLUE) (NOT AVAILABLE)

17050-294-671XK

Unavailable

12

RUBBER, FR. FUEL TANK

17611-283-010

$8.04

13

RUBBER, RR. FUEL TANK

17613-292-000

$19.21

14

CAP, FUEL FILLER This part replaces 17620-317-000.

17620-402-020

$17.03

14

CAP, FUEL FILLER This part replaces 17620-329-000.

17620-402-020

$17.03

14

CAP, FUEL FILLER This part replaces 17620-329-010.

17620-402-020

$17.03

14

CAP, FUEL FILLER This part replaces 17620-402-000.

17620-402-020

$17.03

14

CAP, FUEL FILLER This part replaces 17620-402-010.

17620-402-020

$17.03

15

GASKET (39X58X3) This part replaces 17631-329-000.

17631-ZE1-000

$2.85

15

GASKET (39X58X3) This part replaces 17631-329-003.

17631-ZE1-000

$2.85

17

EMBLEM, R. FUEL TANK (NOT AVAILABLE)

87121-294-670

Unavailable

19

EMBLEM, R. FUEL TANK (NOT AVAILABLE) This part replaces 87122-294-670.

87121-294-670

Unavailable

20

NUT, EMBLEM CLAMP This part replaces 87311-516-000.

87311-634-600

$4.79

20

NUT, EMBLEM CLAMP

87311-634-600

$4.79

21

NUT, FUEL VALVE JOINT (NOT AVAILABLE)

90303-268-000

Unavailable

22

SCREW, PAN (3X6)

93500-03006-0A

$1.49

23

SCREW, OVAL (3X6) (NOT AVAILABLE)

93700-03006-0A

Unavailable

23

SCREW, PAN (3X8) (NOT AVAILABLE)

93500-03008-0B

Unavailable

24

TUBE (5.5X350) This part replaces 95001-50000-90.

95001-55000-40

Unavailable

24

BULK HOSE, FUEL (5.5X3000) (5.5X350)

95001-55003-60M

$47.32

25

CLIP, TUBE (C9)

95002-50000

$1.49
