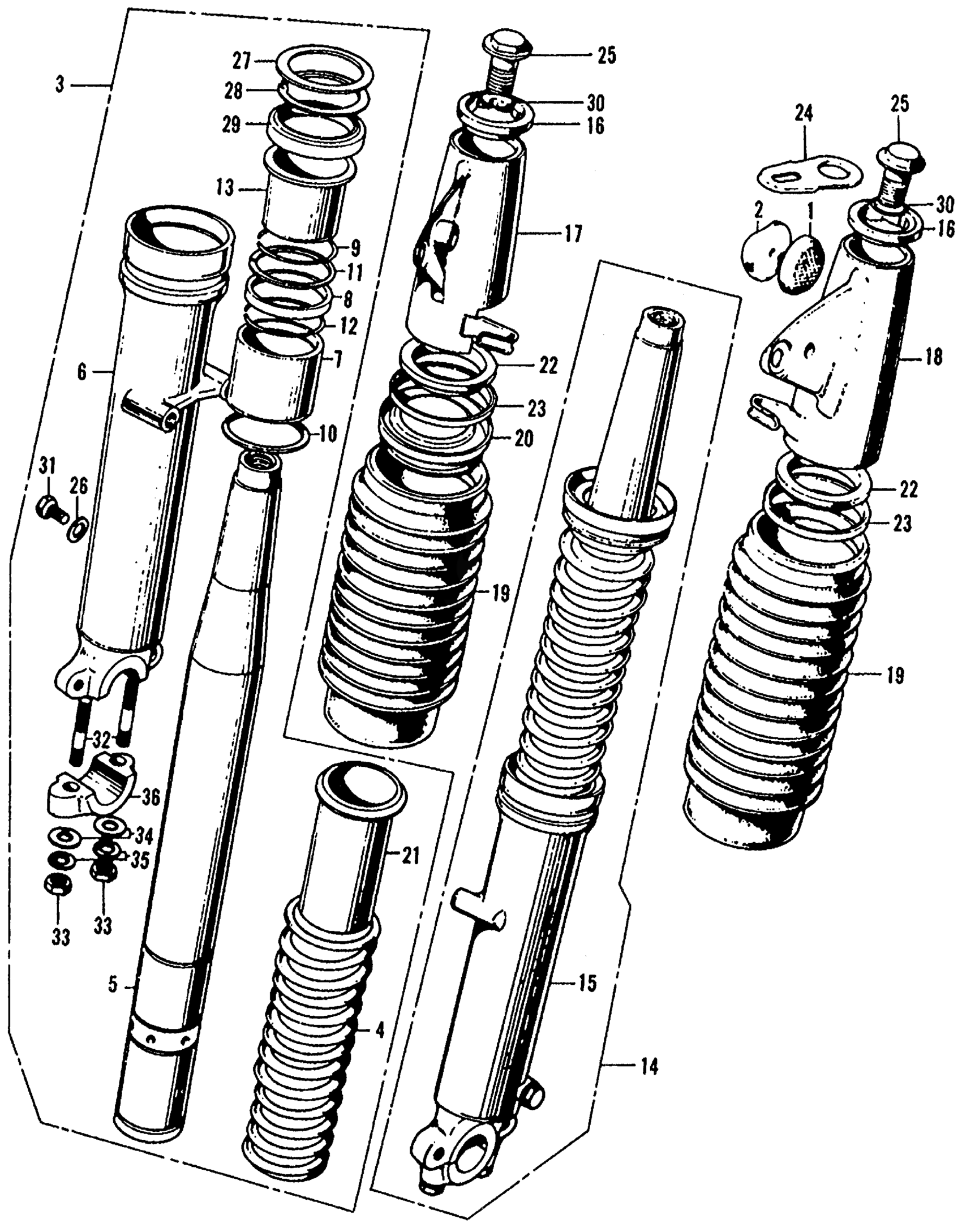

Honda CL450K2A MOTORCYCLE, JPN, VIN# CL450-1012469 FRONT FORK Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX | Use from Frame SN 1013409 This part replaces 33741-286-670.

33741-315-000

$25.26

1

REFLECTOR, FR. REFLEX | Use from Frame SN 1013409

33741-315-000

$25.26

2

BASE, FR. REFLEX REFLECTOR This part replaces 33743-286-670.

33743-341-670

Unavailable

2

BASE, FR. REFLEX REFLECTOR

33743-341-670

Unavailable

3

FORK ASSY., R. FR.

51400-292-010

Unavailable

4

SPRING, FR. FORK (NOT AVAILABLE)

51401-292-010

Unavailable

5

PIPE, FR. FORK (NOT AVAILABLE)

51410-292-000

Unavailable

6

CASE, R. FR. FORK (LOWER)

51420-292-010

Unavailable

7

PISTON, FR. FORK (NOT AVAILABLE)

51442-292-000

Unavailable

8

VALVE, FR. DAMPER (NOT AVAILABLE)

51443-273-000

Unavailable

9

RING, FR. FORK STOPPER (NOT AVAILABLE)

51444-273-000

Unavailable

10

RING, FR. FORK PISTON SNAP (NOT AVAILABLE)

51445-273-000

Unavailable

11

RING, SHOCK VALVE STOPPER (NOT AVAILABLE)

51446-273-000

Unavailable

12

RING, PISTON STOPPER (NOT AVAILABLE)

51447-273-000

Unavailable

13

GUIDE, FR. FORK PIPE (NOT AVAILABLE)

51451-300-000

Unavailable

14

FORK ASSY., L. FR.

51500-292-010

Unavailable

15

CASE, L. FR. FORK (LOWER)

51520-292-010

Unavailable

16

RUBBER, FORK COVER (UPPER)

51601-292-010

Unavailable

17

COVER, R. FR. FORK (NOT AVAILABLE) | Use up to Frame SN 1013408

51602-292-030Z

Unavailable

17

COVER, R. FR. FORK (UPPER) (NOT AVAILABLE) | Use from Frame SN 1013409

51602-294-670Z

Unavailable

18

COVER, L. FR. FORK | Use up to Frame SN 1013408

51606-292-030Z

Unavailable

18

COVER, L. FR. FORK (UPPER) (NOT AVAILABLE) | Use from Frame SN 1013409

51606-294-670Z

Unavailable

19

BOOT, FR. FORK

51611-292-020

Unavailable

20

CAP, SPRING SEAT (NOT AVAILABLE)

51612-292-010

Unavailable

21

SEAT, SPRING (NOT AVAILABLE)

51613-292-000

Unavailable

22

RUBBER, FR. FORK COVER (LOWER)

51622-292-010

$5.84

23

GASKET, FR. FORK RIB (NOT AVAILABLE)

51625-292-300

Unavailable

24

KEEPER, HELMET (NOT AVAILABLE)

53126-292-670

Unavailable

25

BOLT, FR. FORK (NOT AVAILABLE)

90123-292-000

Unavailable

26

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

27

WASHER, SPRING SEAT (NOT AVAILABLE)

90550-292-000

Unavailable

28

CIRCLIP (OUTER) (47MM) (NOT AVAILABLE)

90601-292-000

Unavailable

29

OIL SEAL (35X46X11)

91255-292-003

$14.61

29

OIL SEAL (35X46X11) This part replaces 91255-300-013.

91255-292-003

$14.61

30

O-RING (11.9X2.2) This part replaces 91304-703-000.

91370-461-000

$2.39

30

O-RING (11.9X2.2)

91370-461-000

$2.39

31

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

31

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

32

BOLT, STUD (8X32) This part replaces 92700-08049.

92900-08032-0B

$2.30

32

BOLT, STUD (8X32)

92900-08032-0B

$2.30

33

NUT, HEX. (8MM)

94001-08000-0S

$1.49

34

WASHER, PLAIN (8MM)

94101-08000

$1.49

35

WASHER, SPRING (8MM)

94111-08000

$1.49

36

HOLDER 1C, FR. FORK AXLE

95014-41000

$13.38
