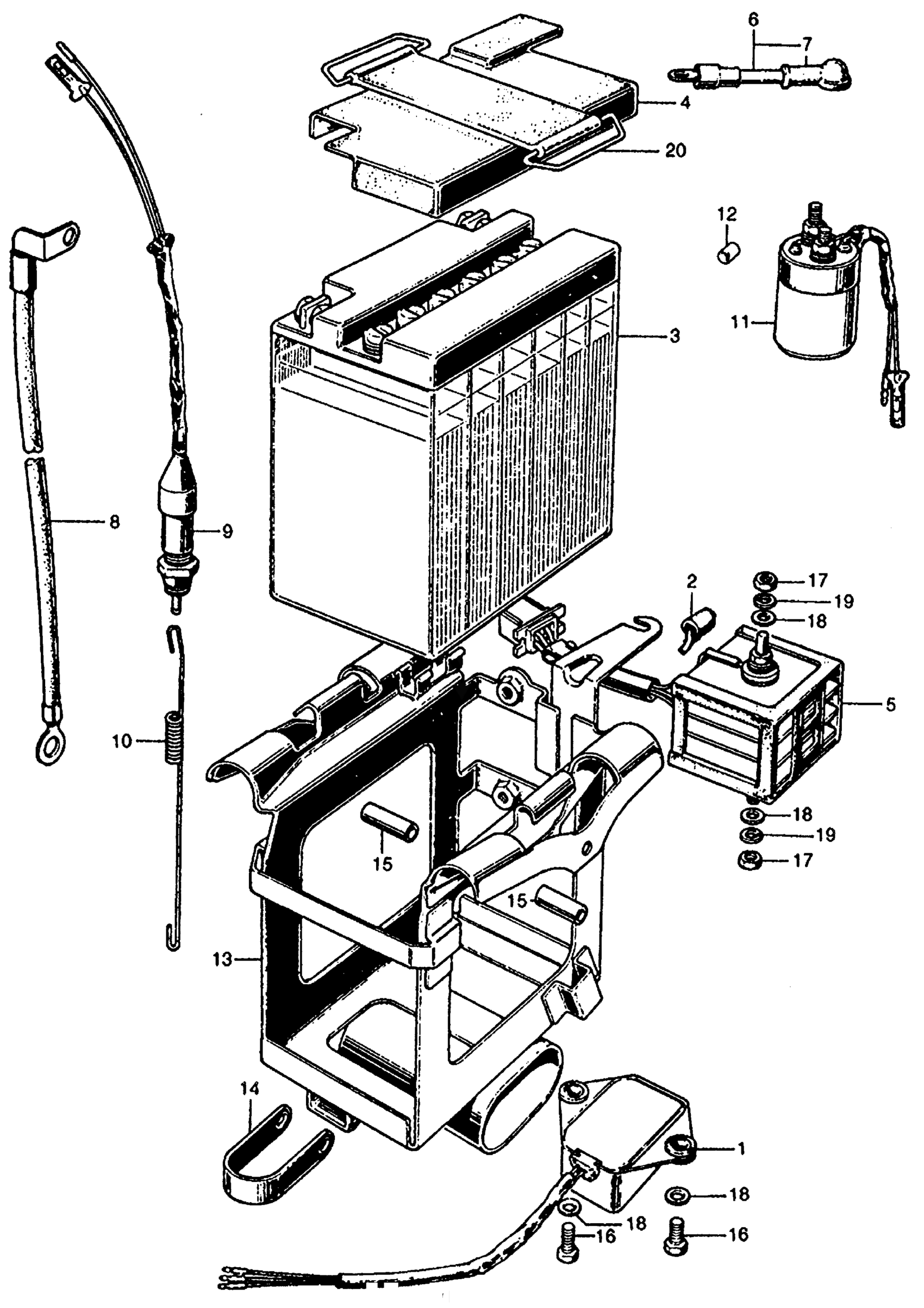

Honda CL450K2A MOTORCYCLE, JPN, VIN# CL450-1012469 BATTERY + MAGNETIC SWITCH Diagram

#

Description
Price

NI

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

NI

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

1

REGULATOR (NOT AVAILABLE)

31400-292-670

Unavailable

2

COVER, BATTERY TERMINAL (NOT AVAILABLE) | Use from Frame SN 1005506

31468-253-000

Unavailable

3

BATTERY (12V12) This part replaces 31500-460-672.

31500-460-672AH

Unavailable

3

BATTERY (12V12) This part replaces 98203-22250.

31500-460-672AH

Unavailable

4

COVER, BATTERY (NOT AVAILABLE)

31532-292-010

Unavailable

5

RECTIFIER ASSY.

31700-455-671

Unavailable

6

CABLE, STARTER BATTERY (NOT AVAILABLE)

32401-292-000

Unavailable

7

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

7

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

8

CABLE, BATTERY GROUND (NOT AVAILABLE)

32601-292-000

Unavailable

9

SWITCH ASSY., RR. STOP

35350-KJ9-405

$16.97

9

SWITCH ASSY., RR. STOP This part replaces 35350-336-000.

35350-KJ9-405

$16.97

10

SPRING, STOP SWITCH (NOT AVAILABLE)

35357-292-010

Unavailable

11

SWITCH ASSY., STARTER MAGNETIC

35850-292-017

Unavailable

12

COLLAR, STARTER MAGNETIC SWITCH SETTING (NOT AVAILABLE) | Use from Frame SN 1011108

35851-292-000

Unavailable

13

BOX, BATTERY *NH1* (BLACK)

50325-292-020B

Unavailable

14

STAY, BATTERY BOX (LOWER) (NOT AVAILABLE)

50327-346-000

Unavailable

15

COLLAR, BATTERY BOX (NOT AVAILABLE)

50328-292-010

Unavailable

16

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

16

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

16

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM)

94001-06200-0S

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

18

WASHER, PLAIN (6MM)

94101-06800

$1.49

19

WASHER, SPRING (6MM)

94111-06000

$1.49

20

BAND E, BATTERY This part replaces 95012-16000.

95012-16001

$7.19

20

BAND E, BATTERY

95012-16001

$7.19
