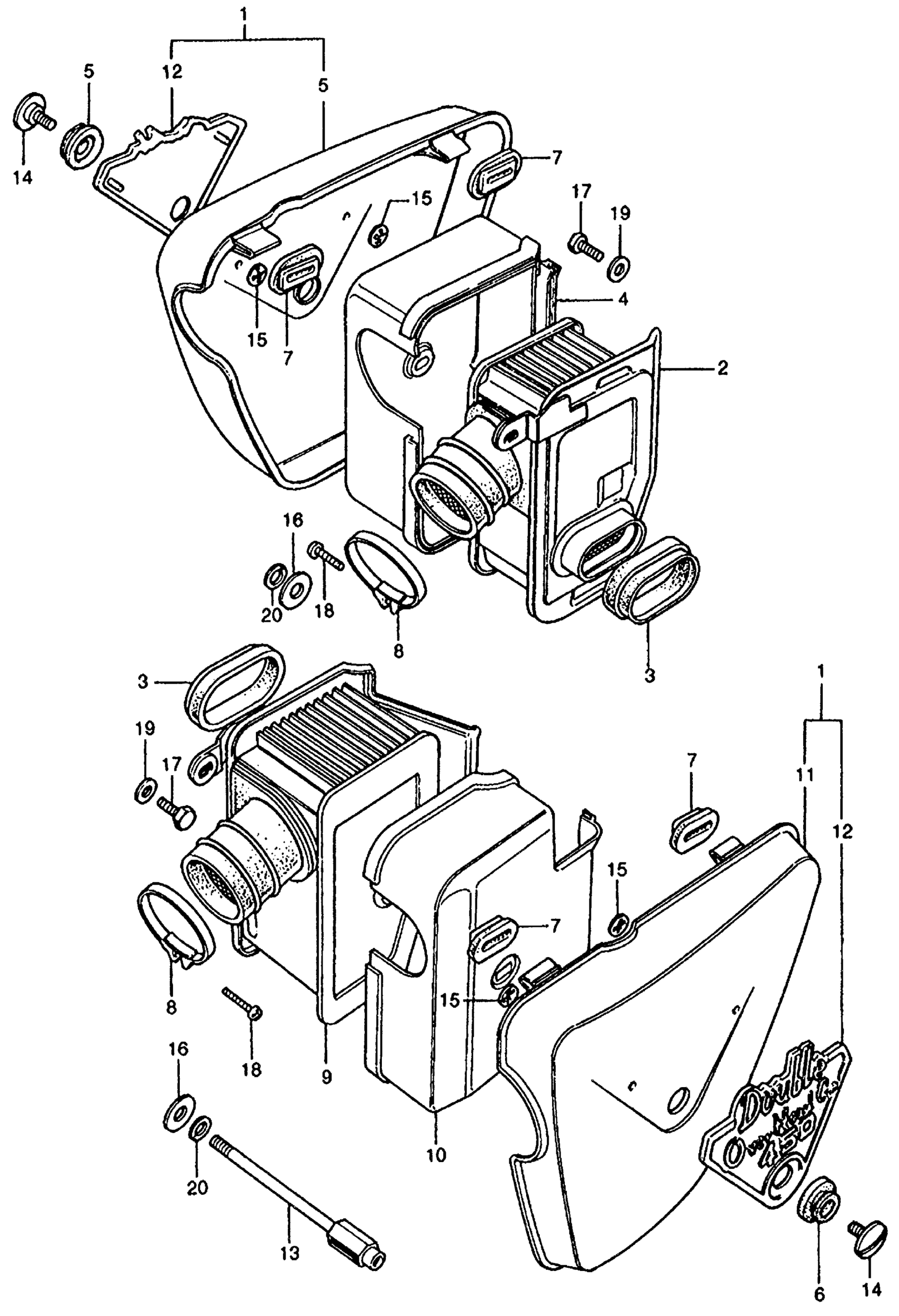

Honda CL450K2A MOTORCYCLE, JPN, VIN# CL450-1012469 AIR CLEANER CASE Diagram

#

Description
Price

2

ELEMENT, R. AIR CLEANER (NOT AVAILABLE)

17211-292-014

Unavailable

3

TUBE, AIR CLEANER JOINT (NOT AVAILABLE)

17213-292-000

Unavailable

4

COVER, R. AIR CLEANER (NOT AVAILABLE)

17214-283-000

Unavailable

5

CASE, R. AIR CLEANER

17231-294-020Z

Unavailable

6

GROMMET B, AIR CLEANER HOUSING

17245-292-010

Unavailable

7

GROMMET A, AIR CLEANER HOUSING

17247-292-010

$3.89

8

BAND, AIR CLEANER CONNECTING TUBE (56) This part replaces 17255-286-000.

95018-56200

$9.55

8

BAND, AIR CLEANER CONNECTING TUBE (56) This part replaces 90651-GHB-710.

95018-56200

$9.55

8

BAND, AIR CLEANER CONNECTING TUBE (56)

95018-56200

$9.55

9

ELEMENT, L. AIR CLEANER (NOT AVAILABLE)

17311-292-014

Unavailable

10

COVER, L. AIR CLEANER (NOT AVAILABLE)

17313-283-000

Unavailable

11

CASE, L. AIR CLEANER (NOT AVAILABLE)

17331-294-020Z

Unavailable

12

EMBLEM, AIR CLEANER HOUSING (NOT AVAILABLE)

87130-294-010

Unavailable

13

BOLT, R. AIR CLEANER SETTING (NOT AVAILABLE)

90112-292-000

Unavailable

14

BOLT, AIR CLEANER SETTING (NOT AVAILABLE)

90113-292-000

Unavailable

15

NUT, SPEED (3MM)

90313-567-000

$3.97

16

WASHER, SHIFT DRUM SIDE (NOT AVAILABLE) This part replaces 90465-283-000.

90417-001-000

Unavailable

17

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

17

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

18

SCREW, PAN (5X16)

93500-05016-0A

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

19

WASHER, PLAIN (6MM)

94101-06800

$1.49

20

WASHER, SPRING (6MM)

94111-06000

$1.49
