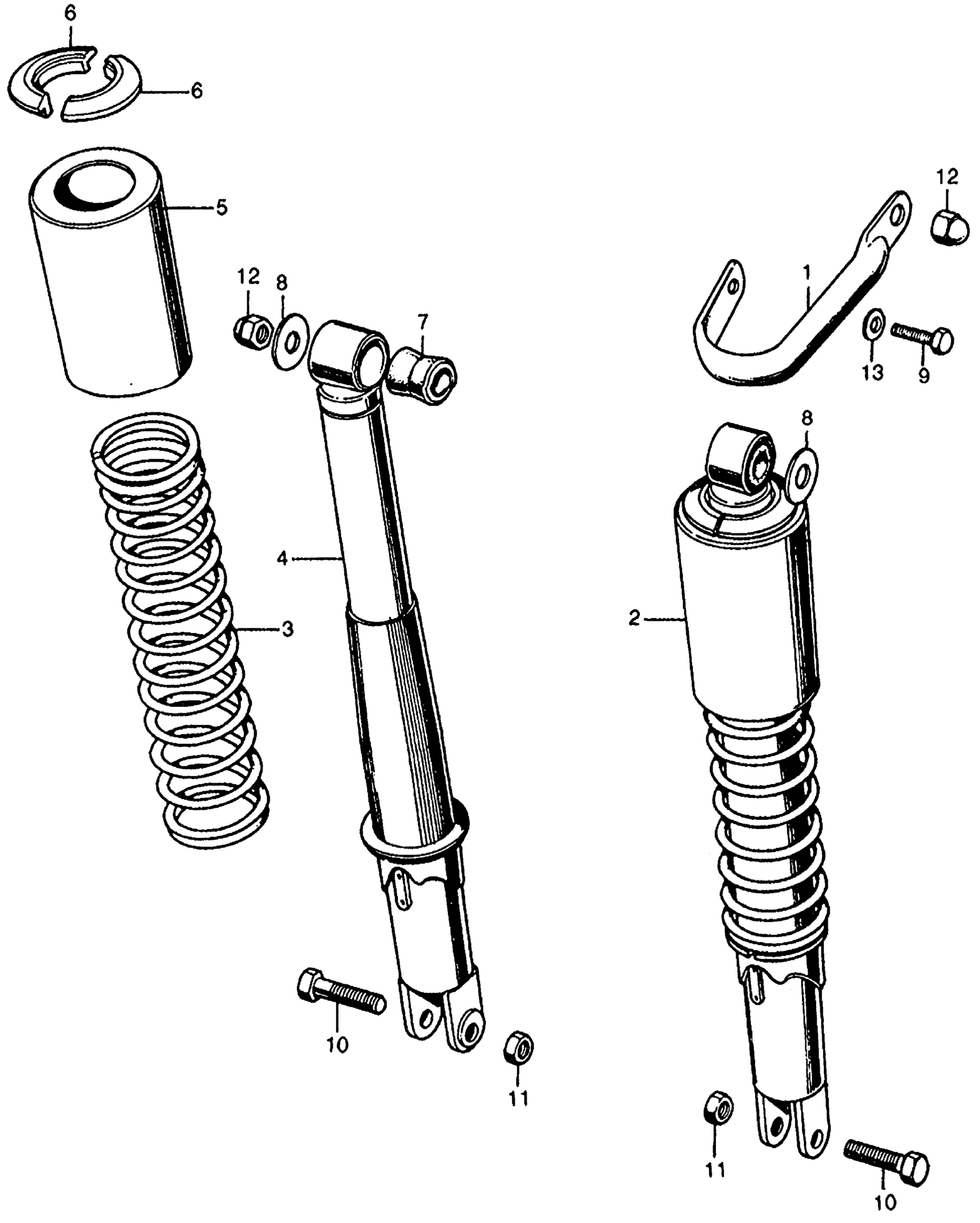

Honda CL450A MOTORCYCLE, JPN, VIN# CL450-1000001 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

GRIP, SET (NOT AVAILABLE)

50316-292-000

Unavailable

2

SHOCK ABSORBER ASSY., RR. *MRCR2* (CHROME PLATING) (NOT AVAILABLE)

52400-292-670XW

Unavailable

3

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)

52401-292-670

Unavailable

4

DAMPER ASSY., RR. (NOT AVAILABLE)

52410-292-670

Unavailable

5

CASE, SHOCK ABSORBER (UPPER) *MRCR2* (CHROME PLATING)

52421-292-670XW

Unavailable

6

STOPPER, SPRING SEAT (NOT AVAILABLE)

52424-292-000

Unavailable

7

RUBBER, JOINT

52484-292-000

$5.87

8

WASHER (10.3MM)

90521-292-000

$3.42

9

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

9

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

9

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

9

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

9

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

9

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

10

BOLT, HEX. (10X36) This part replaces 92000-10036-0B.

92101-10036-0B

Unavailable

11

NUT, HEX. (10MM)

94002-10000-0S

$4.06

12

NUT, CAP (10MM)

94021-10020-0S

$2.08

13

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

13

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

13

WASHER, PLAIN (6MM)

94101-06800

$1.49
