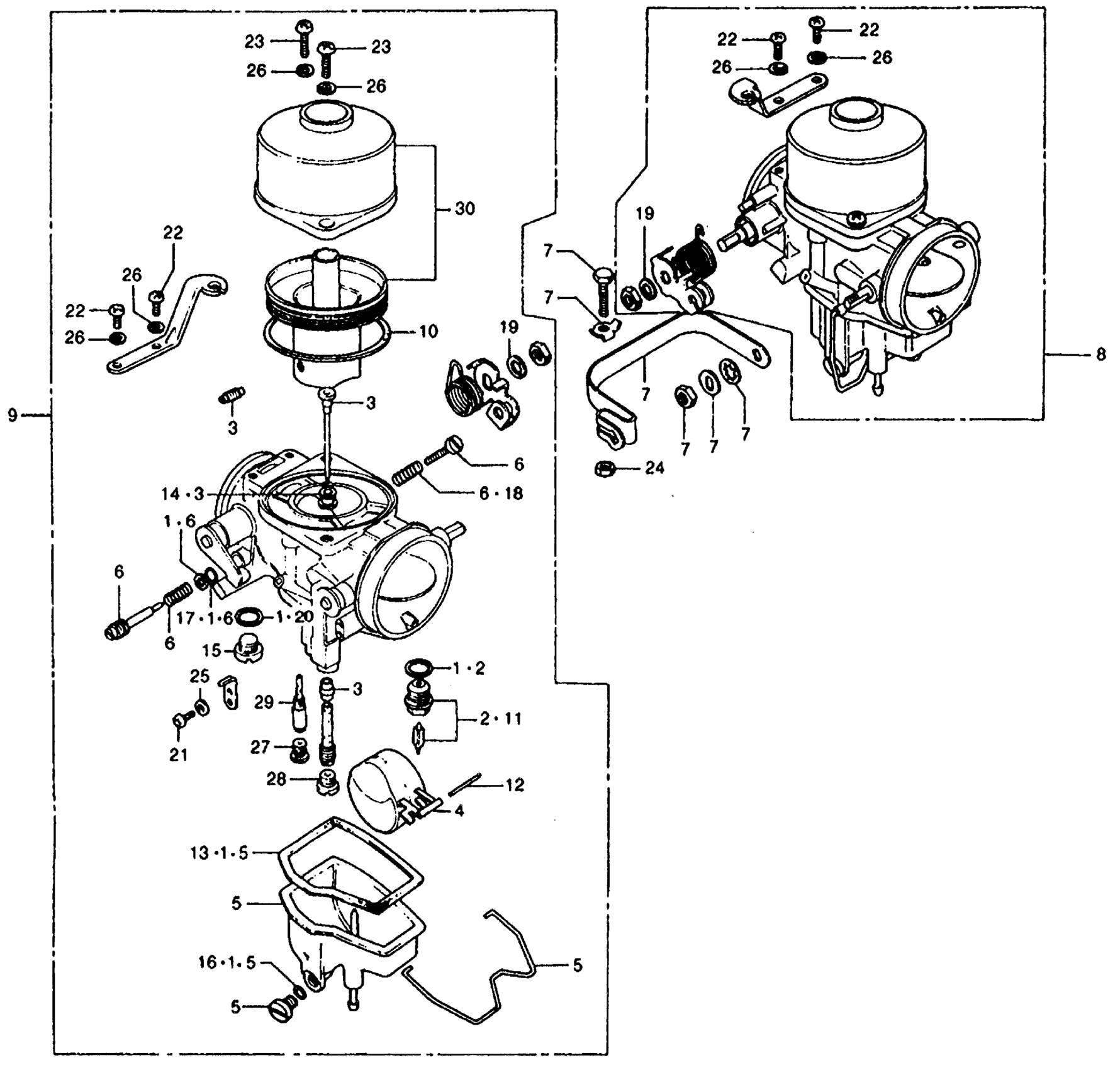

Honda CL450A MOTORCYCLE, JPN, VIN# CL450-1000001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-283-004.

16010-346-305

$9.23

1

GASKET SET

16010-346-305

$9.23

2

GASKET SET This part replaces 16010-302-004.

16010-302-305

Unavailable

2

VALVE SET, FLOAT This part replaces 16011-302-004.

16011-375-004

$28.96

2

VALVE SET, FLOAT

16011-375-004

$28.96

3

NEEDLE SET, JET (NOT AVAILABLE)

16012-283-004

Unavailable

4

FLOAT SET (KEIHIN)

16013-283-004

Unavailable

5

CHAMBER SET, FLOAT (KEIHIN) (NOT AVAILABLE)

16015-346-004

Unavailable

6

SCREW SET A (NOT AVAILABLE)

16016-283-004

Unavailable

7

JOINT SET, CONNECTOR (NOT AVAILABLE)

16025-283-004

Unavailable

8

CARBURETOR ASSY., R. (NOT AVAILABLE)

16100-283-315

Unavailable

9

CARBURETOR ASSY., L. (NOT AVAILABLE)

16102-283-315

Unavailable

10

GASKET, VACUUM PISTON (NOT AVAILABLE)

16113-516-004

Unavailable

11

VALVE SET, FLOAT

16011-375-004

$28.96

11

VALVE SET, FLOAT This part replaces 16125-259-004.

16011-375-004

$28.96

12

PIN, FLOAT ARM (NOT AVAILABLE)

16126-548-004

Unavailable

13

O-RING This part replaces 16129-500-004.

16129-504-004

Unavailable

13

O-RING

16129-504-004

Unavailable

14

HOLDER, JET

16132-516-004

Unavailable

14

HOLDER, JET This part replaces 16139-516-004.

16132-516-004

Unavailable

15

SCREW, PLUG (8MM) (NOT AVAILABLE)

16165-500-004

Unavailable

16

O-RING (4.5MM)

16175-001-004

Unavailable

16

WASHER, FIBER

16189-056-004

Unavailable

17

O-RING (2.8MM) (NOT AVAILABLE)

16175-260-004

Unavailable

18

SPRING, THROTTLE STOP

16186-548-004

Unavailable

19

WASHER, SPRING (7MM)

16195-551-955

Unavailable

20

WASHER, FIBER (8MM)

16198-500-004

Unavailable

21

SCREW, PAN (3X6) (NOT AVAILABLE) This part replaces 93500-03005-0B.

93500-03006-0B

Unavailable

21

SCREW, PAN (3X6) | (Optional).

93500-03006-0A

$1.49

21

SCREW, PAN (3X6) (NOT AVAILABLE)

93500-03006-0B

Unavailable

21

SCREW, PAN (3X6) (NOT AVAILABLE) This part replaces 93500-03006-02.

93500-03006-0B

Unavailable

22

SCREW, PAN (5X10) This part replaces 93500-05010.

93500-05010-0A

$1.49

22

SCREW, PAN (5X10)

93500-05010-0A

$1.49

22

SCREW, PAN (5X10) | (Optional).

93500-05010-0A

$1.49

22

SCREW, PAN (5X10) This part replaces 93500-05010-1A.

93500-05010-0A

$1.49

22

SCREW, PAN (5X10) This part replaces 93510-05010-0A.

93500-05010-0A

$1.49

23

SCREW, PAN (5X16) (NOT AVAILABLE)

93500-05016

Unavailable

23

SCREW, PAN (5X16) | (Optional).

93500-05016-0A

$1.49

24

NUT, HEX. (5MM)

94001-05000-0S

$2.74

25

WASHER, SPRING (3MM)

94111-03000

$1.49

26

WASHER, SPRING (5MM)

94111-05000

$1.49

27

JET, PILOT (#35) (NOT AVAILABLE)

99104-03504

Unavailable

27

JET, PILOT (#40) (NOT AVAILABLE) This part replaces 99104-04004.

99144-292-0400

Unavailable

27

JET, PILOT (#35) (NOT AVAILABLE) This part replaces 99144-292-0350.

99104-03504

Unavailable

27

JET, PILOT (#38) (NOT AVAILABLE) | (Optional).

99144-292-0380

Unavailable

27

JET, PILOT (#40) (NOT AVAILABLE)

99144-292-0400

Unavailable

27

JET, PILOT (#42) (NOT AVAILABLE)

99144-292-0420

Unavailable

27

JET, PILOT (#45) (NOT AVAILABLE)

99144-292-0450

Unavailable

28

JET, MAIN (#125) (NOT AVAILABLE)

99106-12504

Unavailable

28

JET, MAIN (#110) (NOT AVAILABLE)

99114-292-1100

Unavailable

28

JET, MAIN (#115) (NOT AVAILABLE)

99114-292-1150

Unavailable

28

JET, MAIN (#120) (NOT AVAILABLE)

99114-292-1200

Unavailable

28

JET, MAIN (#125) (NOT AVAILABLE)

99114-292-1250

Unavailable

28

JET, MAIN (#130) (NOT AVAILABLE)

99114-292-1300

Unavailable

28

JET, MAIN (#135)

99114-292-1350

Unavailable

28

JET, MAIN (#140) (NOT AVAILABLE)

99114-292-1400

Unavailable

28

JET, MAIN (#145) (NOT AVAILABLE)

99114-292-1450

Unavailable

28

JET, MAIN (#150) (NOT AVAILABLE)

99114-292-1500

Unavailable

29

JET, SLOW (#35) (NOT AVAILABLE) | (Optional).

99124-292-0350

Unavailable

29

JET, SLOW (#38) (NOT AVAILABLE)

99124-292-0380

Unavailable

29

JET, SLOW (#40) (NOT AVAILABLE)

99124-292-0400

Unavailable

29

JET, SLOW (#42)

99124-292-0420

Unavailable

29

JET, SLOW (#45)

99124-292-0450

Unavailable

29

JET, SLOW (#35) (NOT AVAILABLE) | (Optional). This part replaces 99135-03594.

99124-292-0350

Unavailable

29

JET, SLOW (#38) (NOT AVAILABLE) This part replaces 99135-03804.

99124-292-0380

Unavailable

30

PISTON SET, VACUUM (NOT AVAILABLE)

16022-292-004

Unavailable
