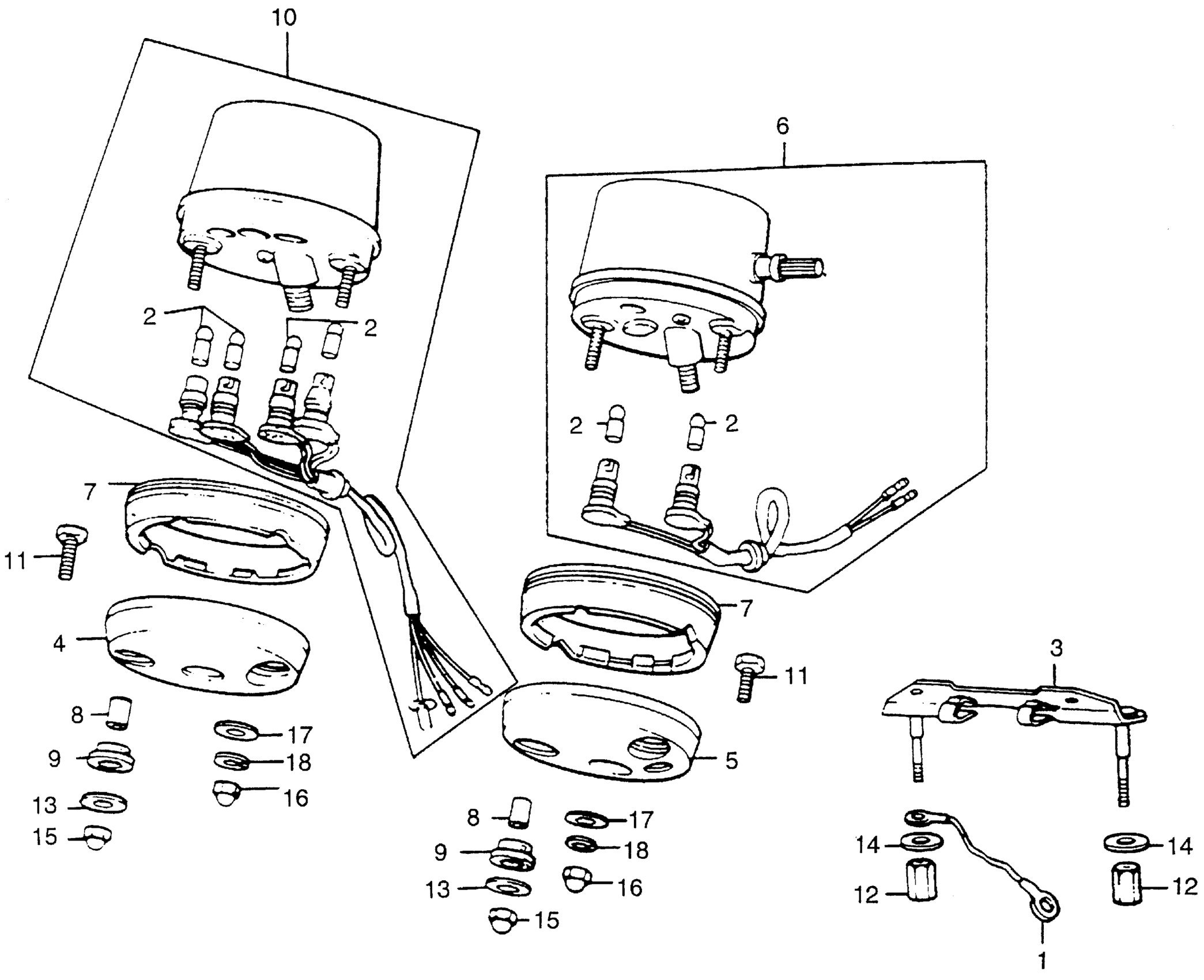

Honda CL360A MOTORCYCLE, JPN, VIN# CL360-1000001 SPEEDOMETER + TACHOMETER Diagram

#

Description
Price

1

WIRE, HANDLE SWITCH GROUND (NOT AVAILABLE)

32111-319-000

Unavailable

2

BULB, DASH (12V3.4W) (IMASEN)

34902-259-000

$2.18

3

PLATE, METER SET *NH1* (BLACK) (NOT AVAILABLE)

37211-370-000B

Unavailable

4

RING, R. METER SETTING

37212-447-000

$39.25

4

RING, R. METER SETTING This part replaces 37212-455-000.

37212-447-000

$39.25

5

RING, L. METER SETTING

37213-447-000

$38.89

5

RING, L. METER SETTING This part replaces 37213-455-000.

37213-447-000

$38.89

6

SPEEDOMETER ASSY. (MPH) (NOT AVAILABLE)

37200-388-602

Unavailable

7

RUBBER, METER

37242-323-701

$17.26

8

COLLAR, INSTRUMENT SETTING

37243-457-000

Unavailable

9

RUBBER, METER SETTING

37244-307-670

$2.67

10

TACHOMETER ASSY. (NOT AVAILABLE) This part replaces 37250-370-008.

37250-370-740

Unavailable

10

TACHOMETER ASSY. (NOT AVAILABLE)

37250-370-740

Unavailable

11

BOLT, METER SETTING

90159-356-000

$4.58

12

NUT (6X15)

90282-329-000

$4.67

13

WASHER, INSTRUMENT MOUNT (19MM) (NOT AVAILABLE)

90500-455-000

$2.82

14

WASHER (6.5X20)

90545-292-000

$1.77

15

NUT, CAP (6MM)

94021-06220-0S

$1.61

16

NUT, CAP (8MM) (NOT AVAILABLE)

94021-08220-0S

Unavailable

17

WASHER, PLAIN (8MM)

94101-08000

$1.49

18

WASHER, SPRING (8MM)

94111-08000

$1.49
