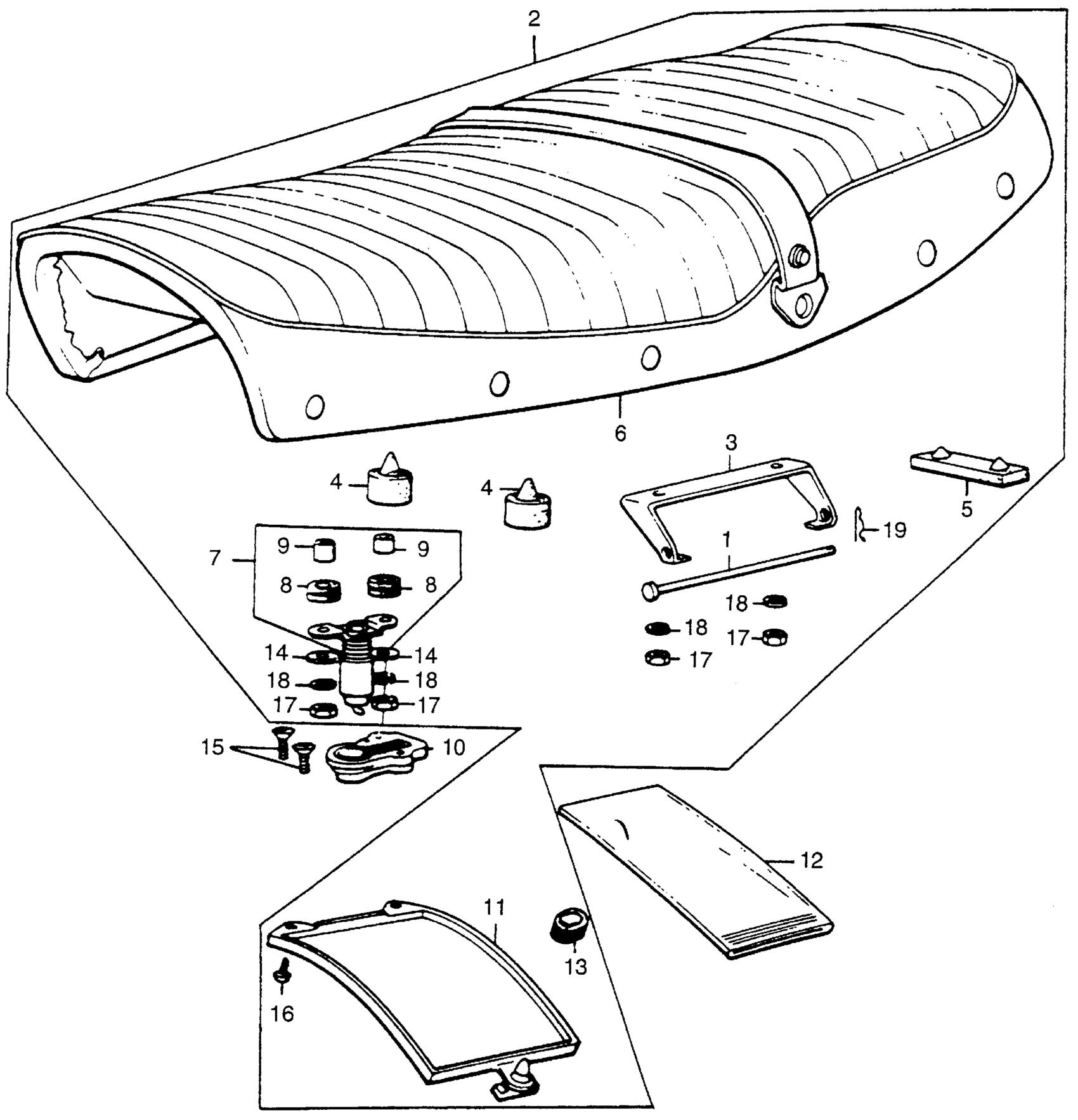

Honda CL360A MOTORCYCLE, JPN, VIN# CL360-1000001 SEAT Diagram

#

Description
Price

1

BAR, SEAT HINGE (NOT AVAILABLE)

77103-369-000

Unavailable

2

SEAT ASSY. (NOT AVAILABLE)

77200-370-000

Unavailable

3

HINGE, SEAT (NOT AVAILABLE)

77201-369-000

Unavailable

4

RUBBER A, SEAT SETTING

77204-286-020

$10.02

5

RUBBER, SEAT SETTING

77204-312-000

$5.05

6

COVER, SEAT (NOT AVAILABLE)

77210-370-810

Unavailable

7

BAR ASSY., SEAT LOCK

77220-340-003

Unavailable

7

BAR ASSY., SEAT LOCK This part replaces 77220-340-010.

77220-340-003

Unavailable

7

BAR ASSY., SEAT LOCK This part replaces 77220-340-011.

77220-340-003

Unavailable

8

RUBBER, SEAT LOCK BAR CUSHION This part replaces 77228-340-000.

77228-340-003

$4.24

8

RUBBER, SEAT LOCK BAR CUSHION This part replaces 77228-340-001.

77228-340-003

$4.24

8

RUBBER, SEAT LOCK BAR CUSHION

77228-340-003

$4.24

9

COLLAR, SEAT LOCK BAR This part replaces 77229-340-000.

77229-340-003

$2.92

9

COLLAR, SEAT LOCK BAR This part replaces 77229-340-001.

77229-340-003

$2.92

9

COLLAR, SEAT LOCK BAR

77229-340-003

$2.92

10

LOCK ASSY., SEAT (HONDALOCK)

77230-107-711

Unavailable

11

LID, SEAT (LOWER)

77250-340-000

Unavailable

12

BAG, SERVICE BOOK This part replaces 77251-342-000.

77251-GR1-000

$4.30

13

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

14

WASHER, PLAIN (6MM) This part replaces 90514-700-000.

94103-06800

$1.49

14

WASHER, PLAIN (6MM)

94103-06800

$1.49

15

SCREW, FLAT (6X12)

93600-06012-0G

$1.49

15

SCREW, FLAT (6X12) This part replaces 93600-06012-07.

93600-06012-0G

$1.49

16

SCREW, TAPPING (5X8)

93901-25080

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM)

94001-06200-0S

$1.49

18

WASHER, SPRING (6MM)

94111-06000

$1.49

19

PIN, LOCK (6MM)

94251-06000

$1.49
