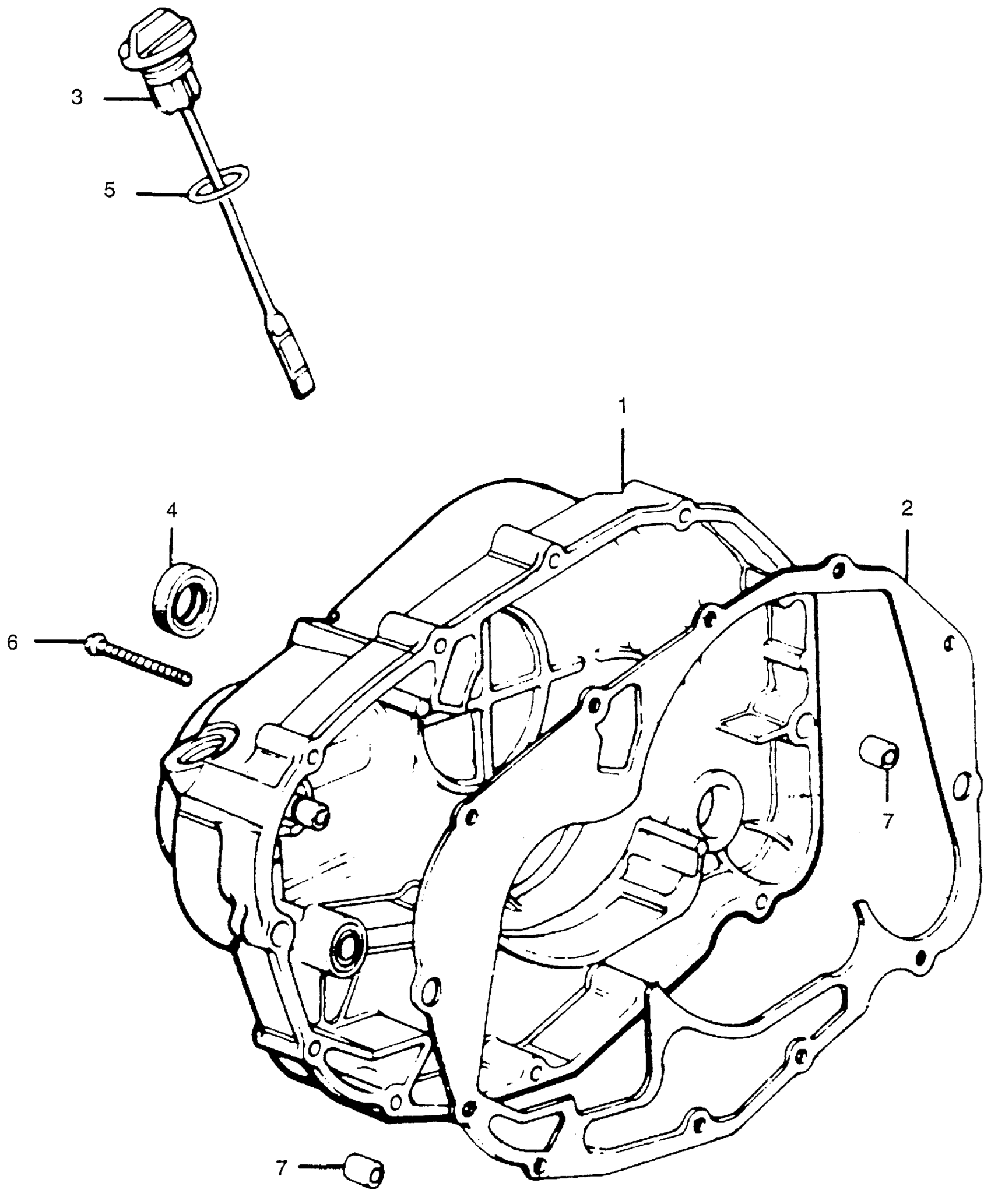

Honda CL360A MOTORCYCLE, JPN, VIN# CL360-1000001 RIGHT CRANKCASE COVER Diagram

#

Description

Price

1

COVER, R. CRANKCASE

11330-369-010

Unavailable

2

GASKET, R. CRANKCASE COVER This part replaces 11394-369-000.

11394-369-306

Unavailable

2

GASKET, R. CRANKCASE COVER

11394-369-306

Unavailable

3

DIPSTICK, OIL (NOT AVAILABLE)

15650-286-010

Unavailable

4

OIL SEAL (18X29X7)

91204-286-003

$4.12

5

O-RING (23X2)

91354-371-000

$3.04

5

O-RING (23X2) This part replaces 91354-702-000.

91354-371-000

$3.04

6

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.31

6

SCREW, PAN (6X40)

93500-06040-0A

$1.31

7

PIN A, DOWEL (10X14)

94301-10140

$2.80
