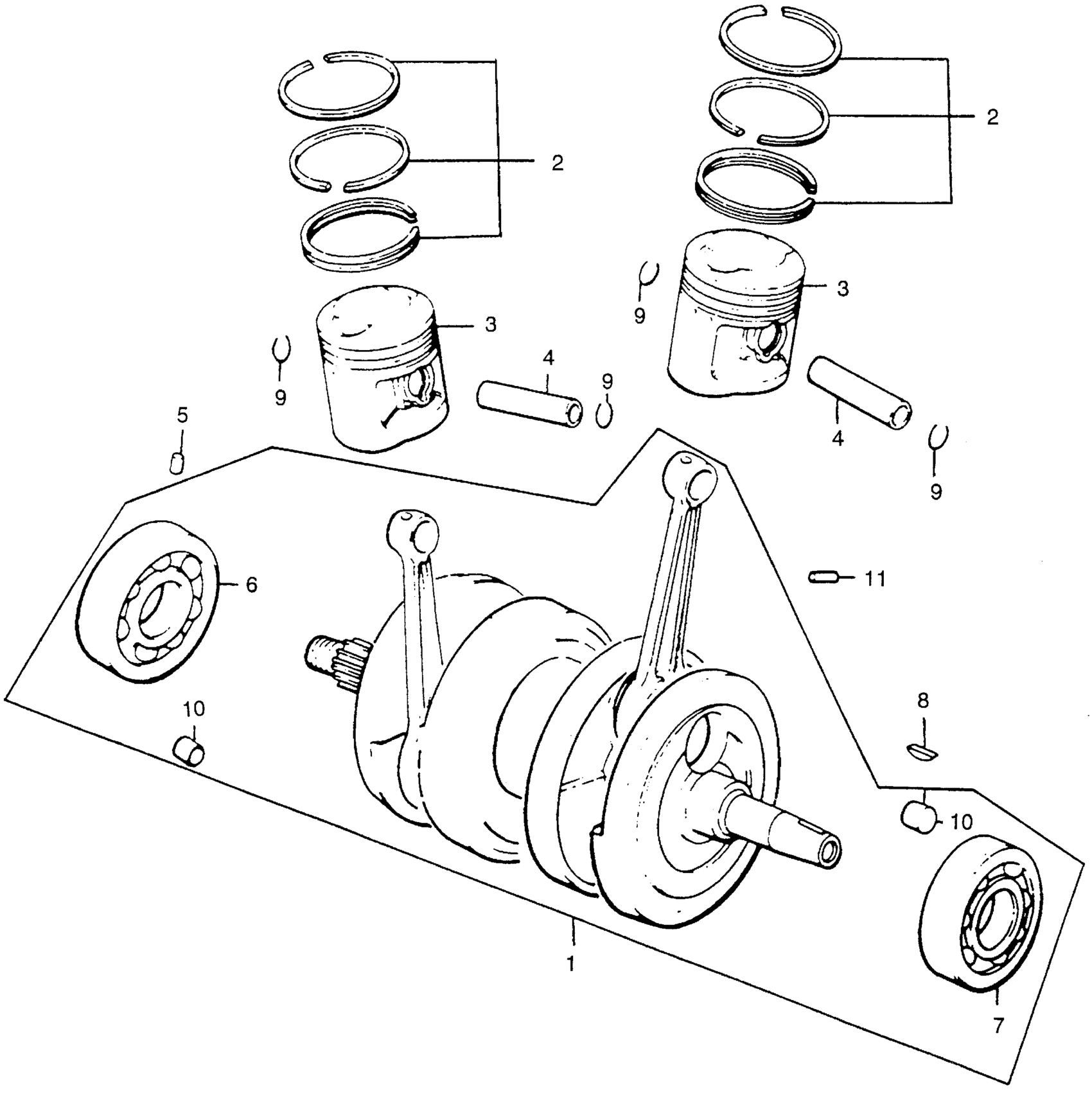

Honda CL360A MOTORCYCLE, JPN, VIN# CL360-1000001 CRANKSHAFT + PISTON Diagram

#

Description

Price

1

CRANKSHAFT (NOT AVAILABLE)

13000-369-000

Unavailable

2

RING SET, PISTON (STD)

13011-369-305

$35.69

2

RING SET, PISTON (OS 0.25) (NOT AVAILABLE)

13021-369-305

Unavailable

2

RING SET, PISTON (OS 0.50)

13031-369-305

Unavailable

2

RING SET, PISTON (0.75) (NOT AVAILABLE)

13041-369-305

Unavailable

2

RING SET, PISTON (1.00)

13051-369-305

Unavailable

3

PISTON (STD) (NOT AVAILABLE)

13101-369-000

Unavailable

3

PISTON (OS 0.25) (NOT AVAILABLE)

13102-369-000

Unavailable

3

PISTON (OS 0.50) (NOT AVAILABLE)

13103-369-000

Unavailable

3

PISTON (0.75) (NOT AVAILABLE)

13104-369-000

Unavailable

3

PISTON (1.00) (NOT AVAILABLE)

13105-369-000

Unavailable

4

PIN, PISTON

13111-369-000

Unavailable

5

PIN, DOWEL (7X12) (NOT AVAILABLE)

90708-286-000

Unavailable

6

BEARING, SPECIAL BALL (6306) (NOT AVAILABLE)

91001-369-000

Unavailable

7

BEARING, SPECIAL BALL (6328) (TOYO)

91002-369-008

Unavailable

8

KEY, WOODRUFF (25X14)

94401-25140

$1.75

9

CLIP, PISTON PIN (16MM)

94601-16000

$1.49

10

PLUG, CONE TYPE (9X10) (NOT AVAILABLE)

96205-09010

Unavailable

11

ROLLER (4X10)

96220-40100

$1.49
