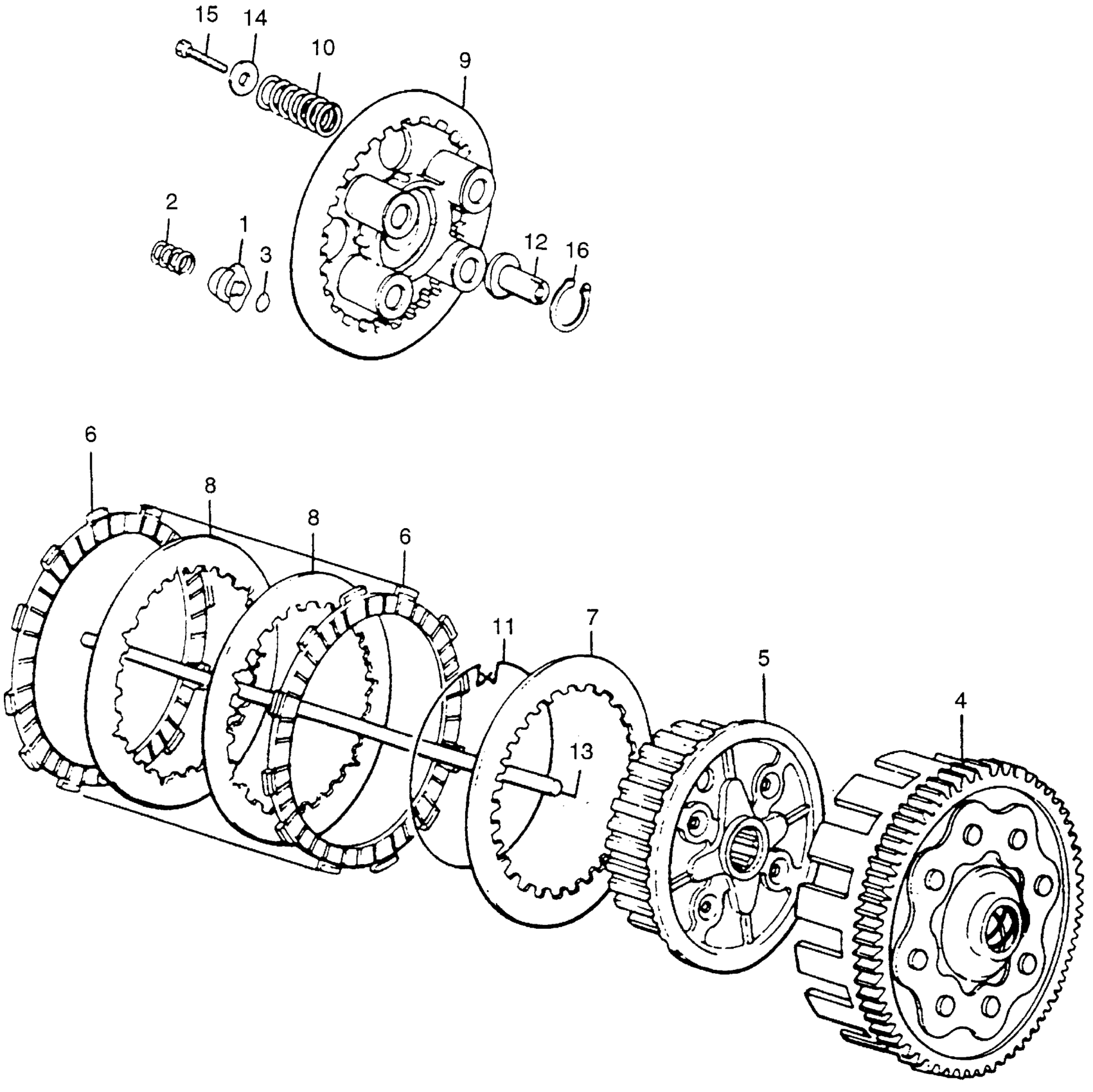

Honda CL360A MOTORCYCLE, JPN, VIN# CL360-1000001 CLUTCH Diagram

#

Description
Price

1

METAL, OIL GUIDE (NOT AVAILABLE)

15594-286-000

Unavailable

2

SPRING, OIL GUIDE METAL

15595-286-000

Unavailable

3

RING, OIL GUIDE METAL STOPPER (NOT AVAILABLE)

15597-286-000

Unavailable

4

CLUTCH (OUTER) (78T) (NOT AVAILABLE)

22100-369-000

Unavailable

5

CENTER, CLUTCH (NOT AVAILABLE) This part replaces 22120-312-010.

22120-369-305

Unavailable

5

CENTER, CLUTCH (NOT AVAILABLE)

22120-369-305

Unavailable

6

DISK, CLUTCH FRICTION

22201-286-010

$19.81

6

DISK, CLUTCH FRICTION This part replaces 22201-369-000.

22201-286-010

$19.81

6

DISK, CLUTCH FRICTION This part replaces 22201-376-000.

22201-286-010

$19.81

7

PLATE A, CLUTCH (NOT AVAILABLE)

22311-286-000

Unavailable

8

PLATE B, CLUTCH

22321-KA4-700

$21.59

8

PLATE B, CLUTCH | Use up to Engine SN 1002476 This part replaces 22321-323-000.

22321-KA4-700

$21.59

8

PLATE B, CLUTCH | Use from Engine SN 1002477 This part replaces 22321-357-010.

22321-KA4-700

$21.59

9

PLATE, CLUTCH PRESSURE

22350-329-000

Unavailable

10

SPRING, CLUTCH This part replaces 22401-275-000.

22401-323-003

$7.70

10

SPRING, CLUTCH This part replaces 22401-323-000.

22401-323-003

$7.70

10

SPRING, CLUTCH

22401-323-003

$7.70

10

SPRING, CLUTCH This part replaces 22401-369-000.

22401-323-003

$7.70

11

RING, CLUTCH PLATE STOPPER (NOT AVAILABLE)

22431-259-000

Unavailable

12

PIECE, CLUTCH LIFTER JOINT (NOT AVAILABLE)

22838-286-000

Unavailable

13

ROD, CLUTCH LIFTER (NOT AVAILABLE)

22850-369-010

Unavailable

14

WASHER (6X19)

90481-259-000

Unavailable

15

BOLT, HEX. (6X20) This part replaces 92018-06020.

92101-06020-0A

$1.49

15

BOLT, HEX. (6X20)

92101-06020-0A

$1.49
