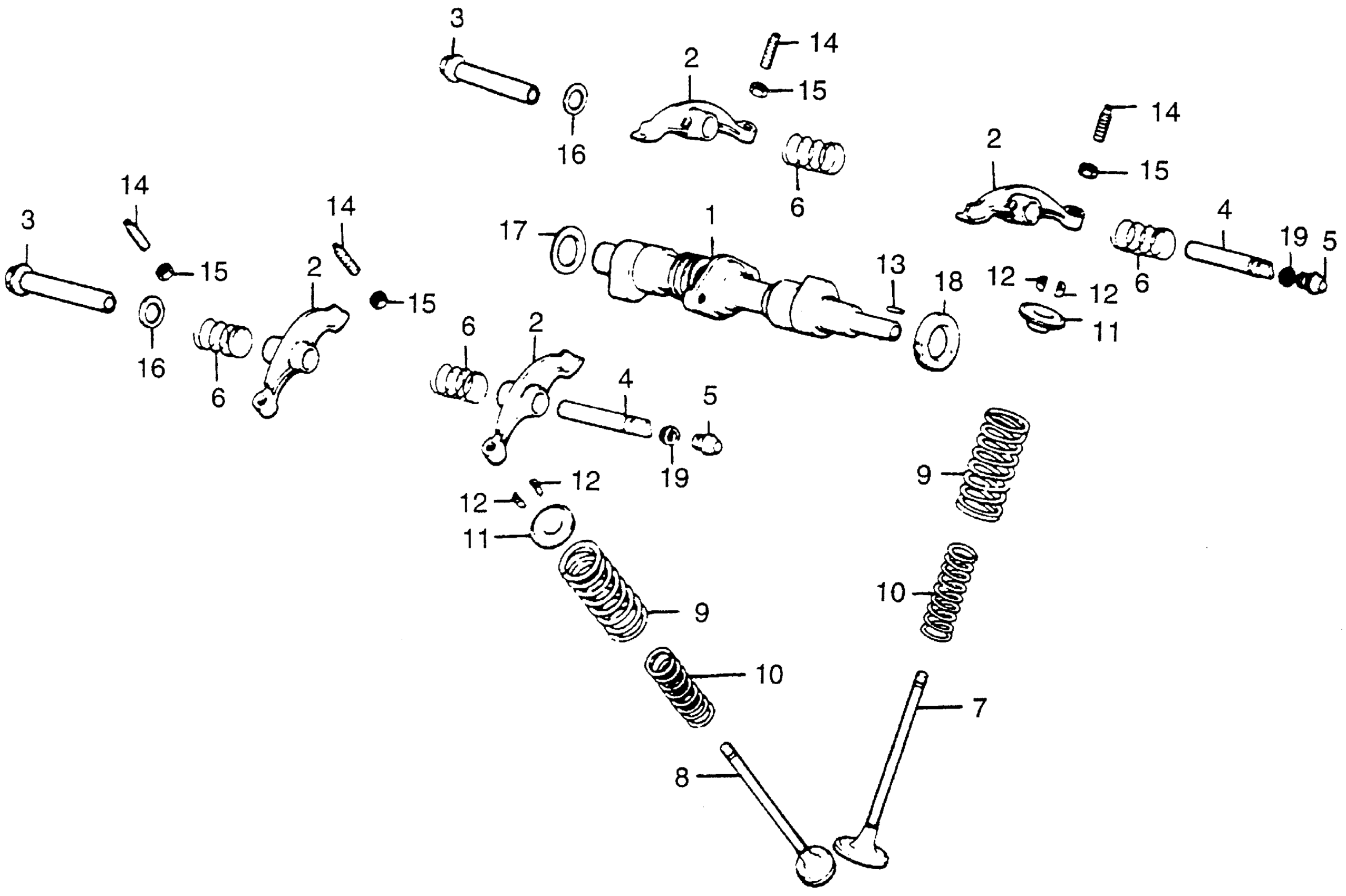

Honda CL360A MOTORCYCLE, JPN, VIN# CL360-1000001 CAMSHAFT + VALVE Diagram

#

Description
Price

1

CAMSHAFT (NOT AVAILABLE)

14101-369-000

Unavailable

2

ARM, VALVE ROCKER

14432-369-000

Unavailable

3

SHAFT, R. ROCKER ARM

14451-369-010

Unavailable

4

SHAFT, L. ROCKER ARM

14452-369-010

Unavailable

5

PLUG, RUBBER

14455-369-004

Unavailable

6

SPRING, ROCKER ARM SIDE (NOT AVAILABLE)

14481-369-000

Unavailable

7

VALVE, IN.

14711-286-030

Unavailable

8

VALVE, EX. This part replaces 14721-286-020.

14721-286-305

$86.67

8

VALVE, EX.

14721-286-305

$86.67

9

SPRING, VALVE (OUTER)

14751-286-000

Unavailable

10

SPRING, VALVE (INNER) (NOT AVAILABLE)

14761-286-020

Unavailable

11

RETAINER, VALVE SPRING (NOT AVAILABLE) This part replaces 14771-369-000.

14771-369-010

Unavailable

11

RETAINER, VALVE SPRING

14771-369-010

Unavailable

12

COTTER, VALVE

14781-286-020

Unavailable

13

PIN, CAMSHAFT (3X5.2)

30905-216-000

$2.67

14

SCREW, TAPPET ADJUSTING This part replaces 90012-300-000.

90012-426-000

$5.94

14

SCREW, TAPPET ADJ.

90012-426-000

$5.94

15

NUT, TAPPET ADJ.

90206-250-000

$2.94

16

WASHER, SEALING (16MM) (NOT AVAILABLE)

90442-369-000

Unavailable

17

WASHER A, THRUST (1.1MM +0 +0.08) (NOT AVAILABLE)

90483-369-000

Unavailable

17

WASHER B, THRUST (1.0MM -0.05 +0.03) (NOT AVAILABLE)

90484-369-000

Unavailable

18

OIL SEAL (22X35X5) This part replaces 91202-286-023.

91251-KM1-003

$6.96

18

OIL SEAL (22X35X5) This part replaces 91202-286-025.

91251-KM1-003

$6.96

18

OIL SEAL (22X35X5)

91251-KM1-003

$6.96

19

RUBBER, SEAL (9X13) (NOT AVAILABLE)

91205-706-000

Unavailable
