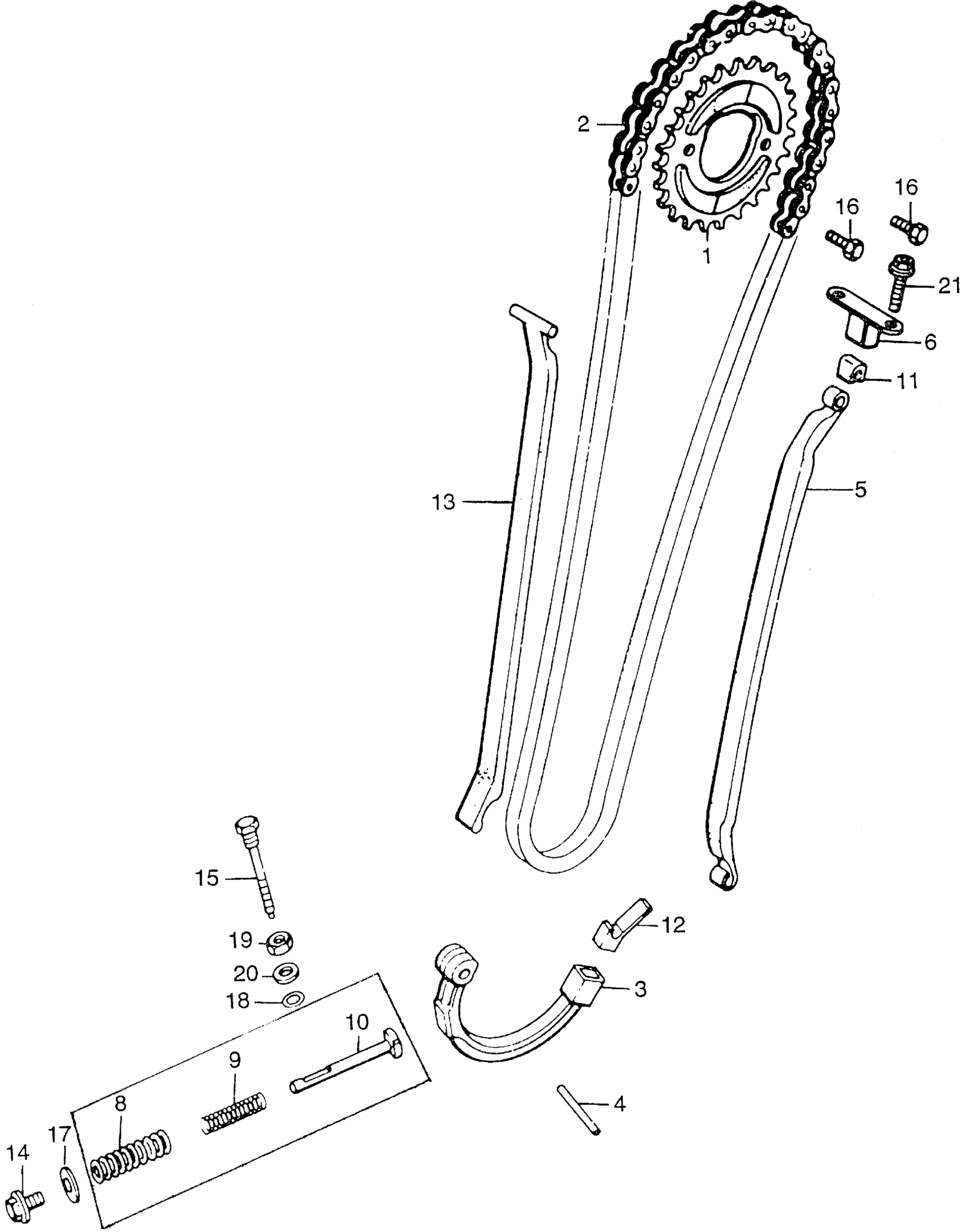

Honda CL360A MOTORCYCLE, JPN, VIN# CL360-1000001 CAM CHAIN + TENSIONER Diagram

#

Description
Price

1

SPROCKET, CAM (34T)

14321-369-000

Unavailable

2

CHAIN, CAM (92L) (DAIDO) (NOT AVAILABLE)

14401-369-003

Unavailable

3

ARM, CAM CHAIN TENSIONER

14501-369-010

Unavailable

4

PIN, CAM CHAIN TENSIONER (NOT AVAILABLE)

14502-369-000

Unavailable

5

SLIPPER, TENSIONER (NOT AVAILABLE)

14520-369-010

Unavailable

6

HOLDER, CAM CHAIN TENSIONER (NOT AVAILABLE)

14530-369-020

Unavailable

8

SPRING, TENSIONER (OUTER) (NOT AVAILABLE)

14541-369-030

Unavailable

9

SPRING, TENSIONER (INNER)

14543-369-030

Unavailable

10

BAR, CAM CHAIN TENSIONER PUSH (NOT AVAILABLE)

14550-369-020

Unavailable

11

DAMPER A, TENSIONER (NOT AVAILABLE)

14565-369-010

Unavailable

12

DAMPER B, TENSIONER (NOT AVAILABLE)

14567-369-000

Unavailable

13

GUIDE, CAM CHAIN (NOT AVAILABLE)

14611-369-000

Unavailable

14

BOLT, OIL CHECK (NOT AVAILABLE)

25911-500-000

Unavailable

15

BOLT, TENSIONER ADJUSTING (NOT AVAILABLE)

90016-369-000

Unavailable

16

BOLT, FLANGE KNOCK (7X10.5) This part replaces 90081-246-000.

90082-HA0-000

$1.97

16

BOLT, FLANGE KNOCK (7X10.5)

90082-HA0-000

$1.97

17

WASHER (8MM)

90474-333-000

$3.30

18

O-RING (6X1.7)

91317-171-003

$2.92

18

O-RING (6X1.7) (ARAI) This part replaces 91317-703-000.

91317-171-003

$2.92

19

NUT, HEX. (8MM)

94002-08000-0S

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

20

WASHER, PLAIN (6MM)

94101-06800

$1.49

21

BOLT, FLANGE (6X16) This part replaces 95700-06016.

95701-06016-00

$1.55

21

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

21

BOLT, FLANGE (6X16)

95701-06016-00

$1.55
