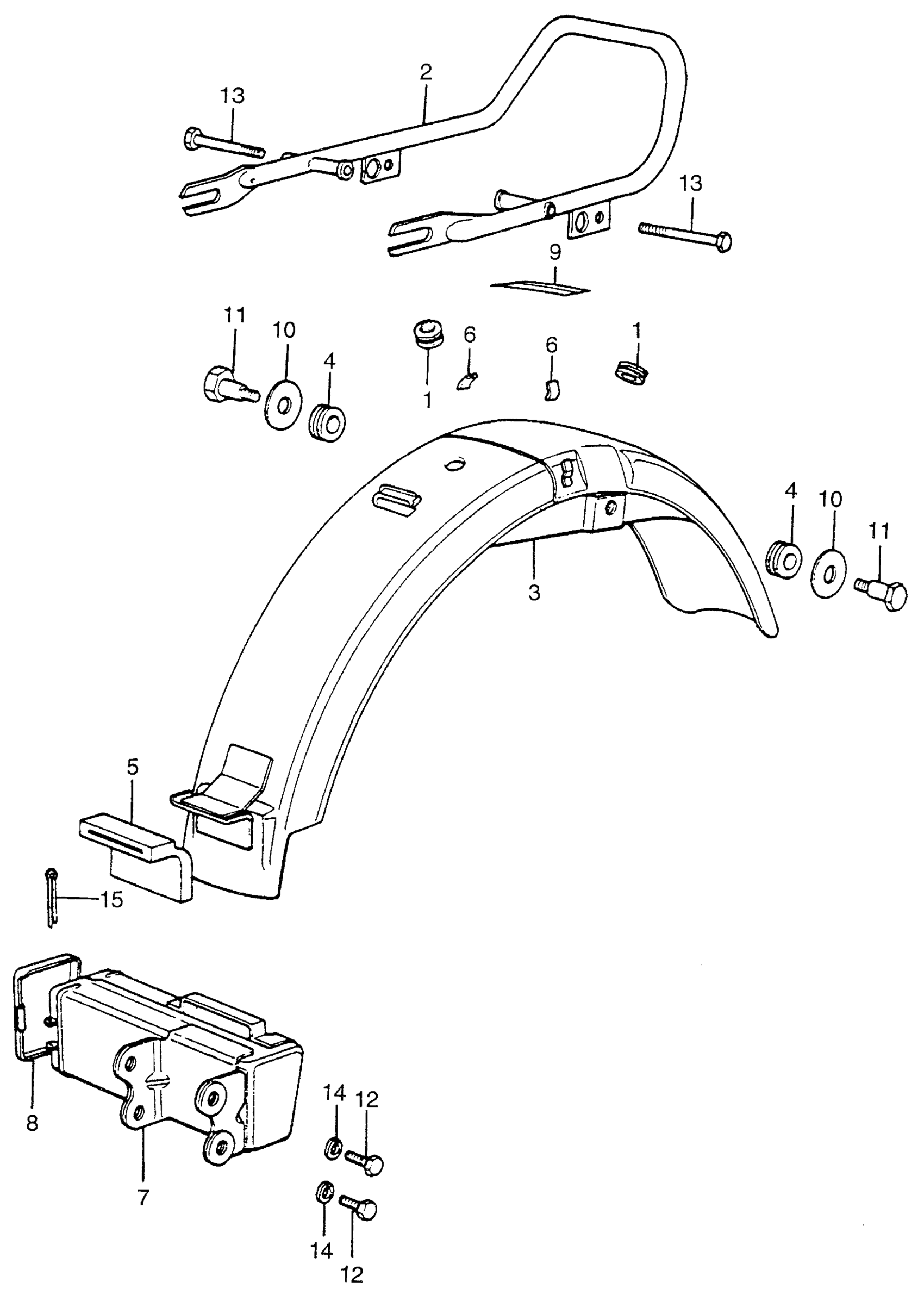

Honda CL350K5A MOTORCYCLE, JPN, VIN# CL350-5000001 REAR FENDER + TOOL BOX Diagram

#

Description
Price

1

GROMMET, WIRE HARNESS

32983-011-000

$3.31

2

PIPE, RR. GRIP (NOT AVAILABLE)

50400-456-670

Unavailable

3

FENDER, RR. *MRCR2* (CHROME PLATING)

80100-455-670XW

Unavailable

4

RUBBER, RR. FENDER SETTING (NOT AVAILABLE)

80102-292-670

Unavailable

5

RUBBER B, RR. FENDER MOUNT (NOT AVAILABLE)

80103-286-020

Unavailable

6

*95003-17001-10M This part replaces 80103-319-670.

95003-17010-10S

Unavailable

7

BOX, TOOL *NH1* (BLACK)

83500-286-030B

Unavailable

8

CAP, TOOL BOX *NH1* (BLACK)

83541-286-000B

Unavailable

9

MARK, TIRE CAUTION (NOT AVAILABLE)

87505-456-670

Unavailable

10

WASHER (12X32) (NOT AVAILABLE)

90530-286-600

Unavailable

11

BOLT, RR. FENDER MOUNT (NOT AVAILABLE)

90156-292-671

Unavailable

12

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

12

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

12

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

13

BOLT, HEX. (8X65) This part replaces 92000-08065-0B.

92101-08065-0B

Unavailable

14

WASHER, SPRING (6MM)

94111-06000

$1.49

15

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

15

PIN, COTTER (2.0X35)

94201-20350

$1.49
