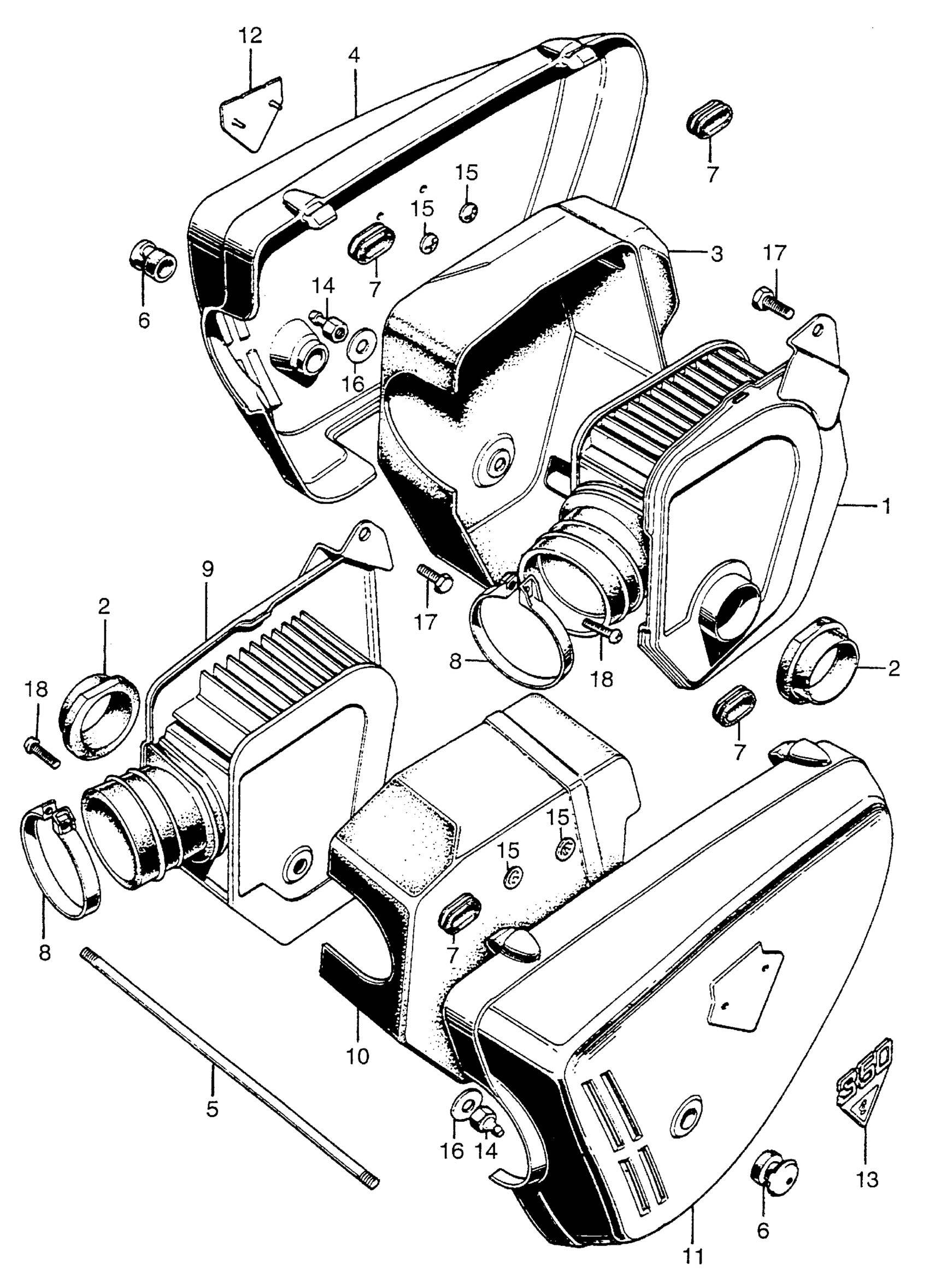

Honda CL350K5A MOTORCYCLE, JPN, VIN# CL350-5000001 AIR CLEANER Diagram

#

Description
Price

1

ELEMENT, R. AIR CLEANER

17210-310-000

$62.87

2

TUBE, AIR CLEANER JOINT (NOT AVAILABLE)

17213-286-000

Unavailable

3

CASE, R. AIR CLEANER (NOT AVAILABLE)

17214-286-610

Unavailable

4

COVER, R. AIR CLEANER *R25* (LIGHT RUBY RED) (NOT AVAILABLE)

17231-344-671HX

Unavailable

4

COVER, R. AIR CLEANER *PB50MS* (HAWAIIAN BLUE METALLIC) (NOT AVAILABLE)

17231-344-671MK

Unavailable

6

GROMMET B, AIR CLEANER HOUSING

17245-292-000

$15.84

7

GROMMET A, AIR CLEANER HOUSING

17247-240-000

$2.92

8

BAND, AIR CLEANER CONNECTING TUBE (56) This part replaces 17255-286-000.

95018-56200

$9.55

8

BAND, AIR CLEANER CONNECTING TUBE (56) This part replaces 17255-317-670.

95018-56200

$9.55

8

BAND, AIR CLEANER CONNECTING TUBE (56) This part replaces 90651-GHB-710.

95018-56200

$9.55

8

BAND, AIR CLEANER CONNECTING TUBE (56)

95018-56200

$9.55

9

ELEMENT, L. AIR CLEANER

17310-310-000

$55.05

10

CASE, L. AIR CLEANER (NOT AVAILABLE)

17313-286-610

Unavailable

11

COVER, L. AIR CLEANER *R25* (LIGHT RUBY RED) (NOT AVAILABLE)

17331-345-670HX

Unavailable

11

COVER, L. AIR CLEANER *PB50MS* (HAWAIIAN BLUE METALLIC) (NOT AVAILABLE)

17331-345-670MK

Unavailable

12

EMBLEM, AIR CLEANER COVER (NOT AVAILABLE)

87125-455-000

Unavailable

13

EMBLEM, L. AIR CLEANER COVER (NOT AVAILABLE)

87126-455-000

Unavailable

14

NUT, AIR CLEANER ELEMENT MOUNT (NOT AVAILABLE)

90301-286-000

Unavailable

15

NUT, SPEED (3MM)

90313-567-000

$3.97

16

WASHER, AIR CLEANER MOUNT (NOT AVAILABLE)

90546-283-000

Unavailable

17

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

17

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

17

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

18

SCREW, PAN (5X16)

93500-05016-0A

$1.49
