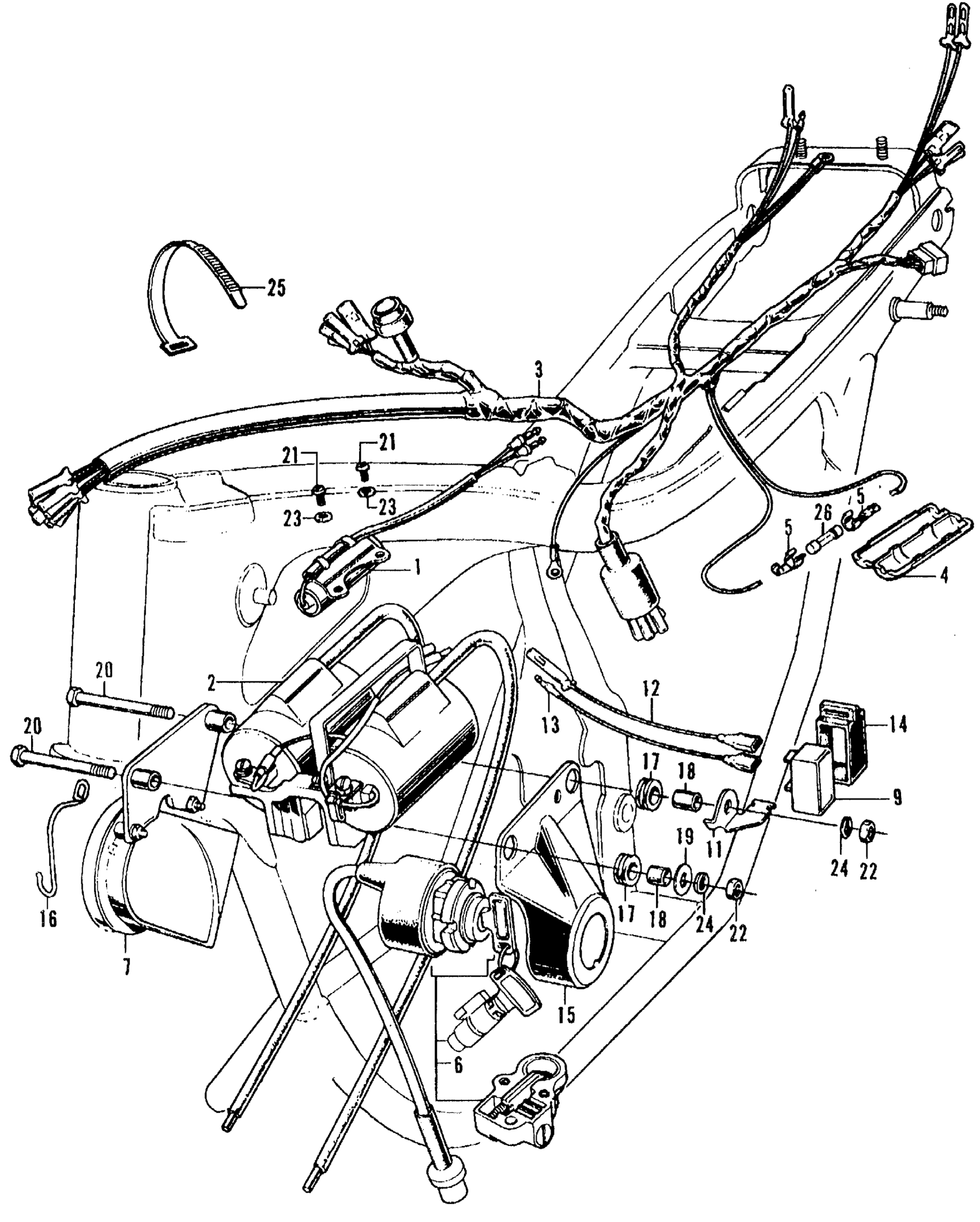

Honda CL350K4A MOTORCYCLE, JPN, VIN# CL350-4000001 WIRE HARNESS + IGNITION COIL + SWITCH Diagram

#

Description
Price

1

CONDENSER (TOYO)

30280-292-672

Unavailable

2

COIL ASSY., IGNITION (NOT AVAILABLE) This part replaces 30500-310-670.

30500-312-007

Unavailable

2

COIL ASSY., IGNITION (NOT AVAILABLE)

30500-312-007

Unavailable

3

WIRE HARNESS (NOT AVAILABLE) | Use from Frame SN 4058313

32100-344-672

Unavailable

4

CASE, FUSE CONNECTOR

32111-230-000

$4.28

5

CONNECTOR, FUSE

32112-230-000

$3.64

6

LOCK SET (NOT AVAILABLE)

35011-346-670

Unavailable

7

HORN ASSY. (NOT AVAILABLE)

38100-310-014

Unavailable

9

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38300-292-670.

38301-KJ6-743

$60.65

9

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-KJ6-741.

38301-KJ6-743

$60.65

9

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-KJ6-742.

38301-KJ6-743

$60.65

9

RELAY, TURN SIGNAL (MITSUBA)

38301-KJ6-743

$60.65

11

STAY, TURN SIGNAL RELAY (NOT AVAILABLE)

38301-292-672

Unavailable

12

SUB-WIRE A, TURN SIGNAL RELAY (NOT AVAILABLE)

38304-243-670

Unavailable

13

SUB-WIRE B, TURN SIGNAL RELAY (NOT AVAILABLE)

38305-243-670

Unavailable

14

SUSPENSION, TURN SIGNAL RELAY (NOT AVAILABLE)

38306-292-670

Unavailable

15

BRACKET, MAIN SWITCH *NH1* (BLACK) (NOT AVAILABLE)

50375-292-020B

Unavailable

16

CLAMP, TACHOMETER CABLE (NOT AVAILABLE)

50462-286-000

Unavailable

17

RUBBER, RR. FENDER CUSHION

80101-283-000

$4.91

18

COLLAR, NUMBER BRACKET SETTING

84706-286-000

$2.99

19

WASHER (18MM) This part replaces 90581-701-000.

90581-831-650

$1.87

19

WASHER (18MM)

90581-831-650

$1.87

20

BOLT, HEX. (6X78) (NOT AVAILABLE)

92000-06078

Unavailable

21

SCREW, PAN (5X8)

93500-05008-0A

$1.49

22

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM)

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

23

WASHER, SPRING (5MM)

94111-05000

$1.49

24

WASHER, SPRING (6MM)

94111-06000

$1.49

25

BAND B3, CABLE HARNESS

95014-62300

$2.25

26

FUSE A (15A)

98200-11500

$1.49
