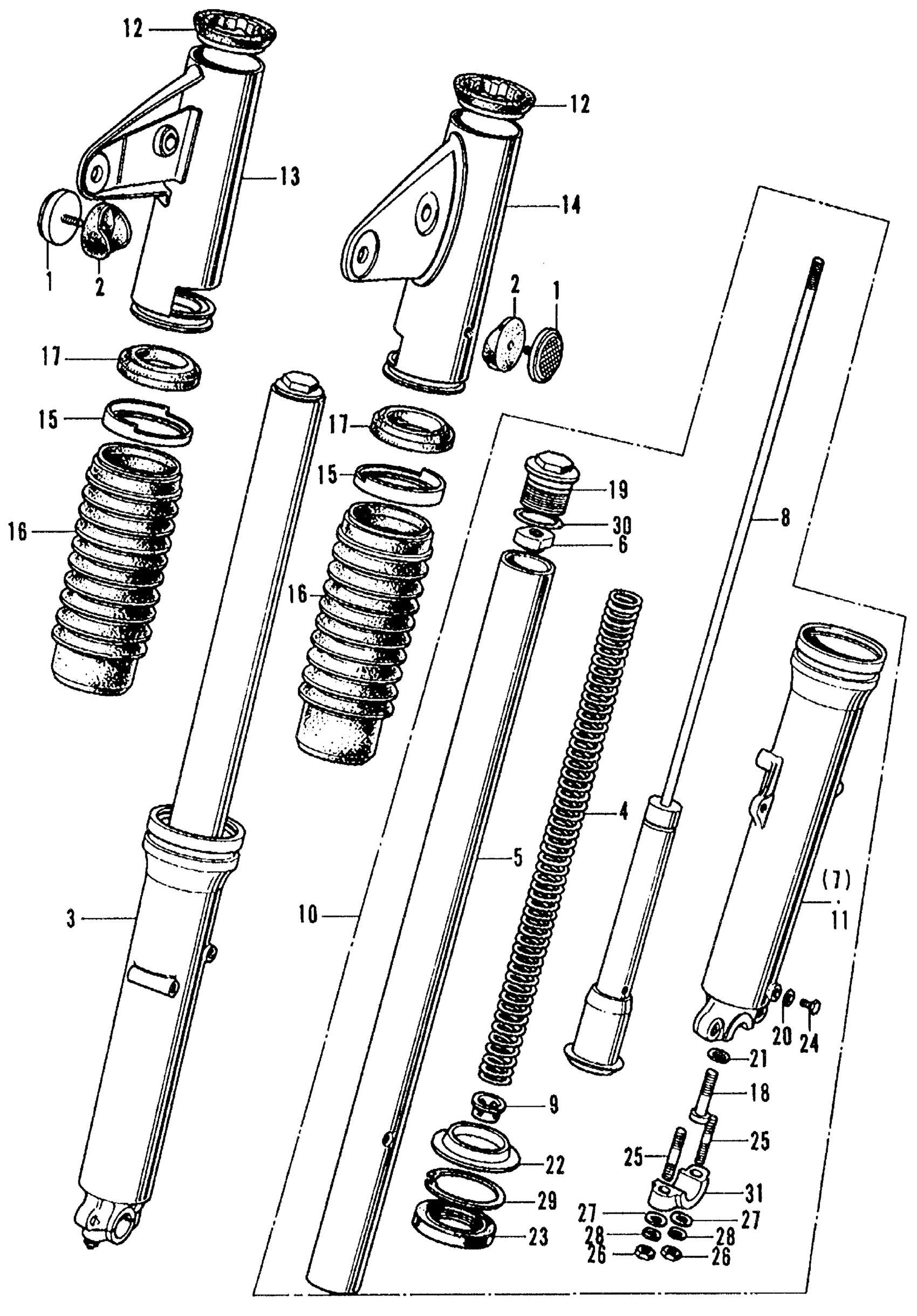

Honda CL350K4A MOTORCYCLE, JPN, VIN# CL350-4000001 CL FRONT FORK K4 Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX This part replaces 33741-340-670.

33741-102-870

$32.91

2

BASE, FR. REFLEX REFLECTOR

33743-341-670

Unavailable

3

FORK ASSY., R. FR. (NOT AVAILABLE)

51400-317-701

Unavailable

4

SPRING, FR. FORK (NOT AVAILABLE)

51401-317-701

Unavailable

5

PIPE, FR. FORK (NOT AVAILABLE)

51410-317-700

Unavailable

6

NUT, LOCK (NOT AVAILABLE)

51413-317-700

Unavailable

7

CASE, R. FR. FORK (LOWER)

51421-317-700

Unavailable

8

DAMPER (NOT AVAILABLE) | Use from Frame SN 4058163

51430-344-000

Unavailable

9

SEAT, RR. RUBBER SPRING (NOT AVAILABLE)

51461-317-701

Unavailable

10

FORK ASSY., L. FR. (NOT AVAILABLE)

51500-317-701

Unavailable

11

CASE, L. FR. FORK (LOWER)

51521-317-700

Unavailable

12

RUBBER A, FORK COVER (NOT AVAILABLE)

51601-317-700

Unavailable

13

COVER, R. FR. FORK (UPPER) *MRCR2* (CHROME PLATING)

51602-345-670XW

Unavailable

14

COVER, L. FR. FORK (UPPER) *MRCR2* (CHROME PLATING) (NOT AVAILABLE)

51606-345-670XW

Unavailable

15

RIB, FR. FORK

51608-300-000

$19.43

16

BOOT, FR. FORK (NOT AVAILABLE)

51611-317-700

Unavailable

17

RUBBER B, FR. FORK COVER

51622-317-700

Unavailable

18

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

Unavailable

18

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

Unavailable

19

BOLT, FR. FORK (NOT AVAILABLE)

90123-317-700

Unavailable

20

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.28

21

WASHER, SPECIAL (8MM) | Use up to Frame SN 4058162

90544-283-000

$2.65

22

DUST SEAL (33X47X10) (NOT AVAILABLE) | Use from Frame SN 4058163

91254-333-010

Unavailable

23

OIL SEAL (33X46X10.2)

91255-312-003

$15.12

24

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.37

24

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.37

24

BOLT, HEX. (6X8)

92101-06008-0A

$1.37

25

BOLT, STUD (8X50) This part replaces 92700-08050-3B.

92900-08028-3B

$1.47

25

BOLT, STUD (8X50) This part replaces 92700-08050-30.

92900-08028-3B

$1.47

25

BOLT, STUD (8X50)

92900-08028-3B

$1.47

26

NUT, HEX. (8MM)

94030-08000

Unavailable

27

WASHER, PLAIN (8MM)

94101-08000

Unavailable

28

WASHER, SPRING (8MM)

94111-08000

Unavailable

29

CIRCLIP (INNER) (47MM) (NOT AVAILABLE)

94521-47000

$2.21

30

O-RING (23X2.4)

94608-30000

$1.10

31

HOLDER 1C, FR. FORK AXLE

95014-41000

$13.12
