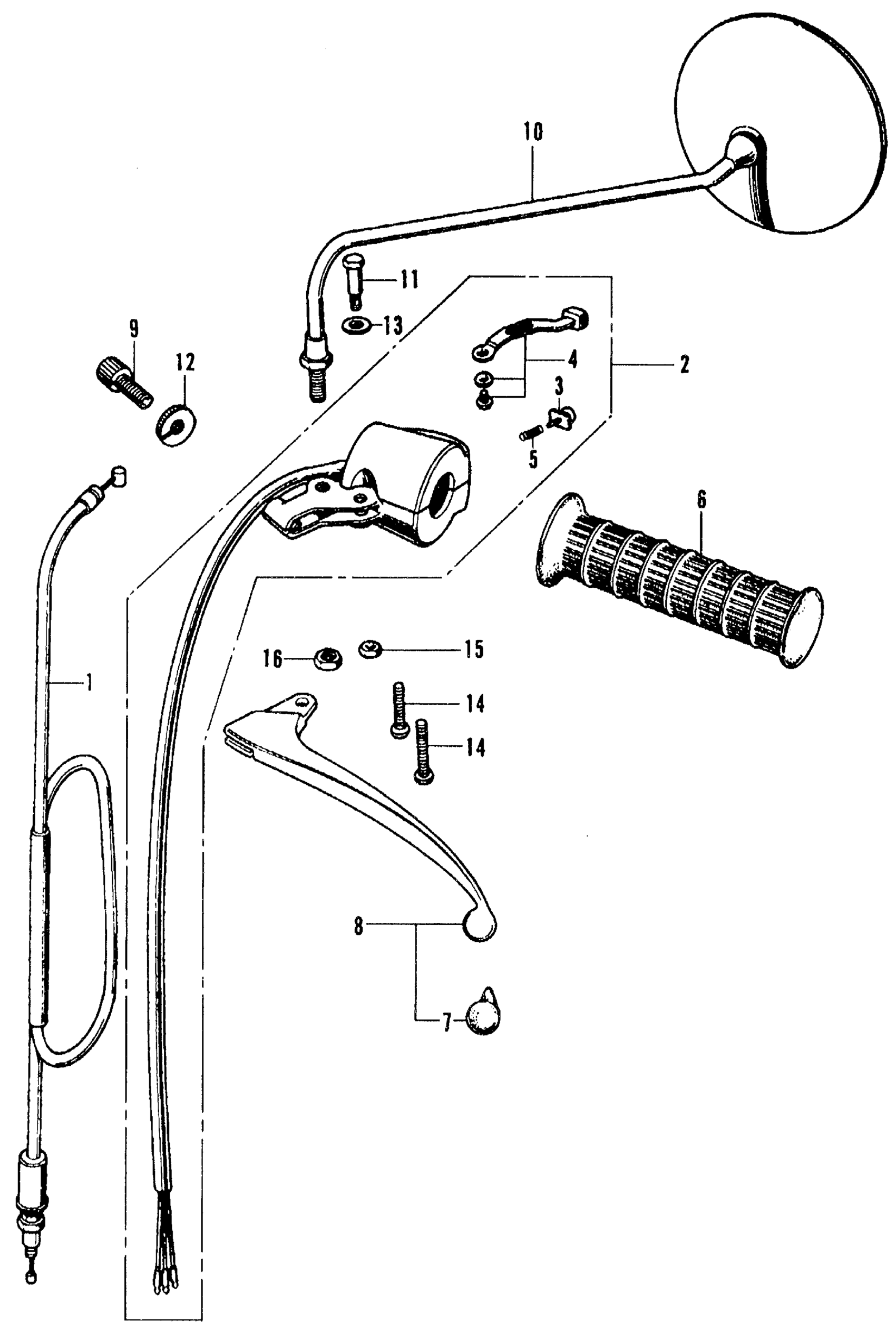

Honda CL350K3A MOTORCYCLE, JPN, VIN# CL350-3000001 LEFT HANDLE SWITCH + CABLE Diagram

#

Description
Price

1

CABLE, CLUTCH This part replaces 22870-290-010.

22870-379-000

Unavailable

1

CABLE, CLUTCH

22870-379-000

Unavailable

2

SWITCH ASSY., TURN SIGNAL & HORN (TOYO)

35250-300-033

Unavailable

3

BUTTON, HORN SWITCH PUSH

35317-001-310

$4.62

4

BUTTON, HORN SWITCH PUSH (NOT AVAILABLE)

35317-310-810

Unavailable

5

SPRING, BUTTON

35318-259-000

$5.33

6

GRIP, L. HANDLEBAR

95011-14200

$14.81

7

CAP A, LEVER This part replaces 53180-286-000.

95010-16001

$5.97

7

CAP A, LEVER This part replaces 95010-16000.

95010-16001

$5.97

7

CAP A, LEVER

95010-16001

$5.97

8

LEVER, L. HANDLE This part replaces 53178-329-000.

53178-369-700

$28.35

8

LEVER, L. HANDLE

53178-369-700

$28.35

8

LEVER, L. HANDLE This part replaces 53190-286-670.

53178-369-700

$28.35

8

LEVER, L. HANDLE This part replaces 53190-329-000.

53178-369-700

$28.35

8

LEVER, L. HANDLE This part replaces 53190-329-010.

53178-369-700

$28.35

8

LEVER, L. HANDLE This part replaces 53190-369-700.

53178-369-700

$28.35

8

LEVER, L. HANDLE This part replaces 53190-371-980.

53178-369-700

$28.35

9

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

10

MIRROR, L. (NOT AVAILABLE)

88120-235-000

Unavailable

11

BOLT, HANDLEBAR LEVER PIVOT (NOT AVAILABLE)

90114-268-000

Unavailable

11

BOLT, HANDLEBAR LEVER PIVOT

90114-310-000

$4.90

12

NUT, FIXING

90321-315-670

$7.31

12

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

13

WASHER (7X12)

90501-310-000

$1.74

14

SCREW, PAN (5X25)

93500-05025-0A

$1.49

15

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM)

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

16

NUT, HEX. (10MM)

94001-10000-0S

$1.49
