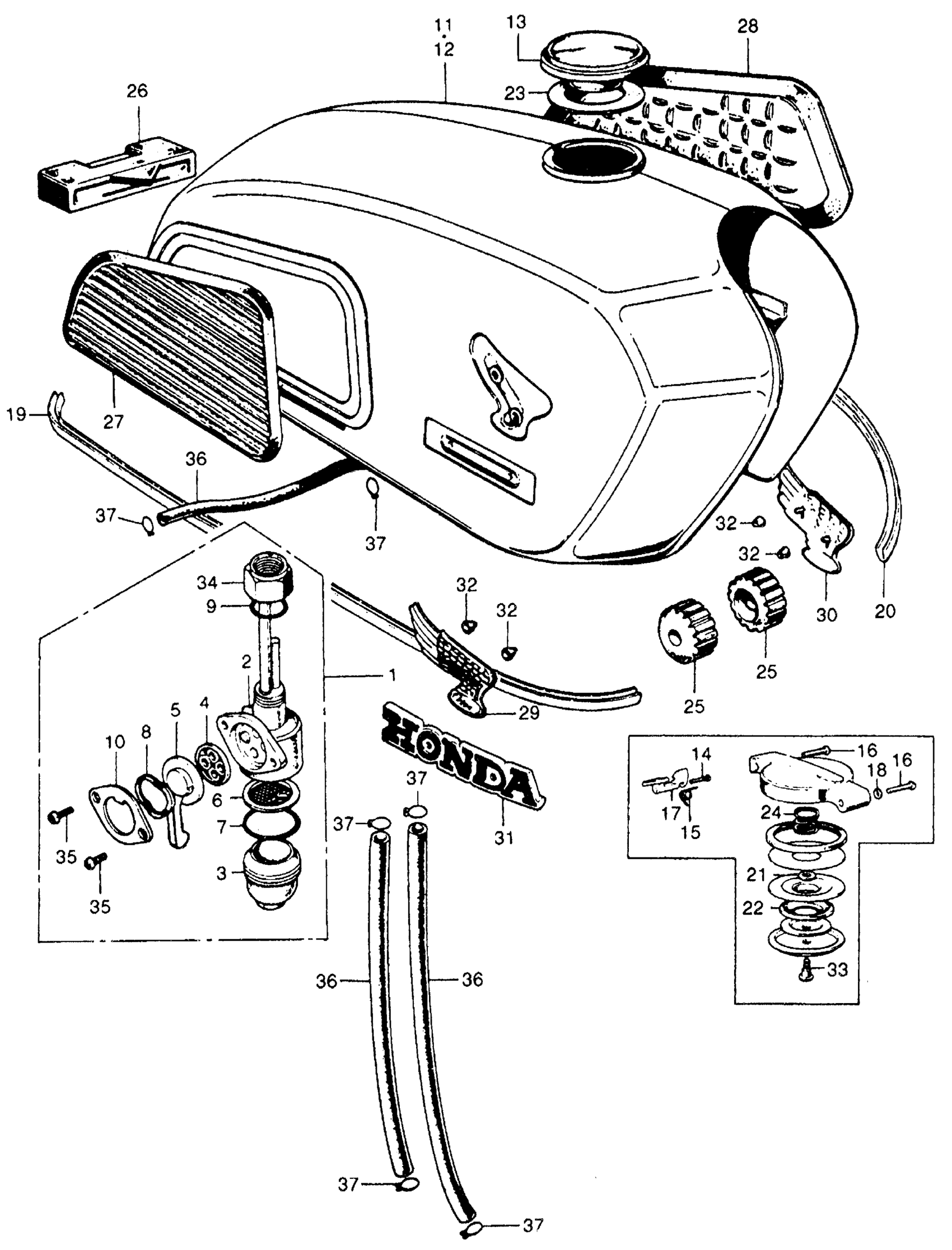

Honda CL350K3A MOTORCYCLE, JPN, VIN# CL350-3000001 FUEL TANK + FUEL VALVE K3 Diagram

#

Description
Price

NI

LABEL, DRIVE CAUTION *NH0* (CHAMPIONSHIP WHITE) | Use from Frame SN 3051279

87560-323-670A

$3.00

1

PETCOCK ASSY.

16950-292-000

$72.05

2

BODY, PETCOCK (NOT AVAILABLE)

16951-292-000

Unavailable

3

CUP, FUEL STRAINER

16952-028-000

Unavailable

3

CUP, FUEL STRAINER This part replaces 16952-283-000.

16952-028-000

Unavailable

4

GASKET, PETCOCK

16953-283-000

$12.77

5

LEVER, FUEL (NOT AVAILABLE)

16953-298-000

Unavailable

6

SCREEN, FUEL STRAINER This part replaces 16954-283-000.

16957-028-000

$16.22

6

SCREEN, FUEL STRAINER This part replaces 16957-011-000.

16957-028-000

$16.22

6

SCREEN, FUEL STRAINER

16957-028-000

$16.22

6

SCREEN, FUEL STRAINER This part replaces 16957-028-004.

16957-028-000

$16.22

7

O-RING (2.4X18.6) This part replaces 16955-283-000.

16075-GHB-B00

$4.67

8

SPRING, PETCOCK LEVER

16955-816-004

Unavailable

9

GASKET, JOINT NUT

16956-283-000

$4.67

10

PLATE, PETCOCK LEVER SETTING (NOT AVAILABLE)

16961-298-000

Unavailable

11

TANK, FUEL *Y2C* (CANDY GOLD) (NOT AVAILABLE) This part replaces 17500-317-670CQ.

17050-317-670CQ

Unavailable

11

TANK, FUEL *G7M* (DERBY GREEN METALLIC) (NOT AVAILABLE) This part replaces 17500-317-670FC.

17050-317-670FC

Unavailable

11

TANK, FUEL *R25* (LIGHT RUBY RED) (NOT AVAILABLE) This part replaces 17500-317-670HX.

17050-317-670HX

Unavailable

11

TANK, FUEL *Y2C* (CANDY GOLD) (NOT AVAILABLE)

17050-317-670CQ

Unavailable

11

TANK, FUEL *G7M* (DERBY GREEN METALLIC) (NOT AVAILABLE)

17050-317-670FC

Unavailable

11

TANK, FUEL *R25* (LIGHT RUBY RED) (NOT AVAILABLE)

17050-317-670HX

Unavailable

12

TANK, FUEL *YR1C* (CANDY TOPAZ ORANGE) (NOT AVAILABLE)

17050-318-670DD

Unavailable

12

TANK, FUEL *PB12M* (STRATO BLUE METALLIC) (NOT AVAILABLE)

17050-318-670FB

Unavailable

12

TANK, FUEL *Y2M* (POPPY YELLOW METALLIC)

17050-318-670FS

Unavailable

12

TANK, FUEL *YR1C* (CANDY TOPAZ ORANGE) (NOT AVAILABLE) This part replaces 17500-318-670DD.

17050-318-670DD

Unavailable

12

TANK, FUEL *PB12M* (STRATO BLUE METALLIC) (NOT AVAILABLE) This part replaces 17500-318-670FB.

17050-318-670FB

Unavailable

12

TANK, FUEL *Y2M* (POPPY YELLOW METALLIC) This part replaces 17500-318-670FS.

17050-318-670FS

Unavailable

14

PIN, FUEL FILLER CAP CHECK (NA USE ALT:17550-377-315)

17513-300-300

Unavailable

15

SPRING, FUEL FILLER CAP CHECK (NA USE ALT:17550-377-315)

17515-300-300

Unavailable

16

PIN, FUEL FILLER CAP (NOT AVAILABLE)

17516-300-300

Unavailable

17

CHECK, FUEL FILLER CAP (NA USE ALT:17550-377-315)

17517-300-340

Unavailable

18

WASHER, FILLER CAP FRICTION (NOT AVAILABLE)

17520-300-300

Unavailable

21

WASHER (NOT AVAILABLE)

17523-300-000

Unavailable

22

SEPARATOR A, FUEL (NOT AVAILABLE)

17524-300-000

Unavailable

23

GASKET, FUEL FILLER CAP

17525-300-000

$7.49

24

SPRING, SEAT (NOT AVAILABLE)

17526-300-000

Unavailable

26

RUBBER, RR. FUEL TANK

17613-286-000

$15.86

31

EMBLEM B, FUEL TANK (NOT AVAILABLE)

87123-316-670

Unavailable

33

SCREW (NOT AVAILABLE)

90167-300-000

Unavailable

34

NUT, FUEL VALVE JOINT (NOT AVAILABLE)

90303-268-000

Unavailable

35

SCREW, PAN (3X6)

93500-03006-0A

$1.49

35

SCREW, PAN (3X6)

93500-03006-0G

Unavailable

36

BULK HOSE, FUEL (5.5X3000) (5.5X320) | Use from Frame SN 3009988

95001-55003-60M

$47.32

36

BULK HOSE, FUEL (5.5X3000) (5.5X220)

95001-55003-60M

$47.32

36

BULK HOSE, FUEL (5.5X3000) (5.5X240)

95001-55003-60M

$47.32

37

CLIP, TUBE (B10) | Use from Frame SN 3009988

95002-02100

$1.90

37

CLIP, TUBE (C9) | Use up to Frame SN 3009987

95002-50000

$1.49
