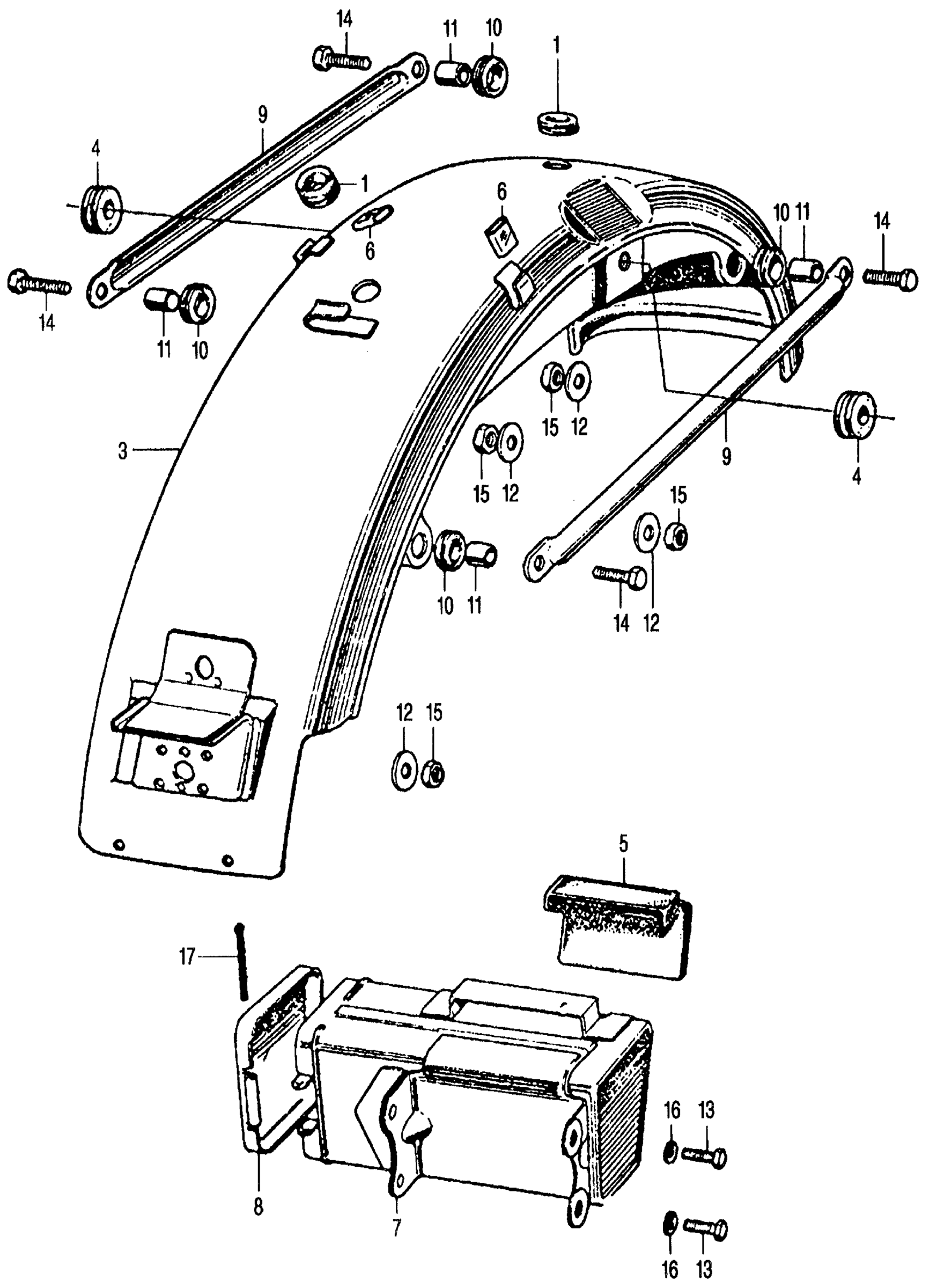

Honda CL350K2A MOTORCYCLE, JPN, VIN# CL350-2000001 REAR FENDER + TOOL BOX K2 Diagram

#

Description
Price

1

GROMMET, WIRE HARNESS

32983-011-000

$3.31

3

FENDER, RR. *MRCR2* (CHROME PLATING) (NOT AVAILABLE)

80100-286-674XW

Unavailable

4

RUBBER, RR. FENDER SETTING (NOT AVAILABLE)

80102-292-670

Unavailable

5

RUBBER B, RR. FENDER MOUNT (NOT AVAILABLE)

80103-286-020

Unavailable

6

*95003-17001-10M | Use from Frame SN 2036262 This part replaces 80103-319-670.

95003-17010-10S

Unavailable

7

BOX, TOOL *NH1* (BLACK)

83500-286-030B

Unavailable

8

CAP, TOOL BOX *NH1* (BLACK)

83541-286-000B

Unavailable

9

BRACKET, RR. FENDER (NOT AVAILABLE)

84101-286-010

Unavailable

10

RUBBER, BRACKET CUSHION

84705-292-000

$2.79

11

COLLAR, NUMBER BRACKET SETTING

84706-286-000

$2.99

12

WASHER (18MM) This part replaces 90581-701-000.

90581-831-650

$1.87

12

WASHER (18MM)

90581-831-650

$1.87

13

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

13

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

13

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

14

BOLT, HEX. (6X16) This part replaces 92000-06016-0B.

92101-06016-0B

$1.49

14

BOLT, HEX. (6X16) This part replaces 92000-06016-02.

92101-06016-0B

$1.49

14

BOLT, HEX. (6X16)

92101-06016-0B

$1.49

15

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

15

NUT, HEX. (6MM)

94002-06000-0S

$1.49

16

WASHER, SPRING (6MM)

94111-06000

$1.49

17

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

17

PIN, COTTER (2.0X35)

94201-20350

$1.49
