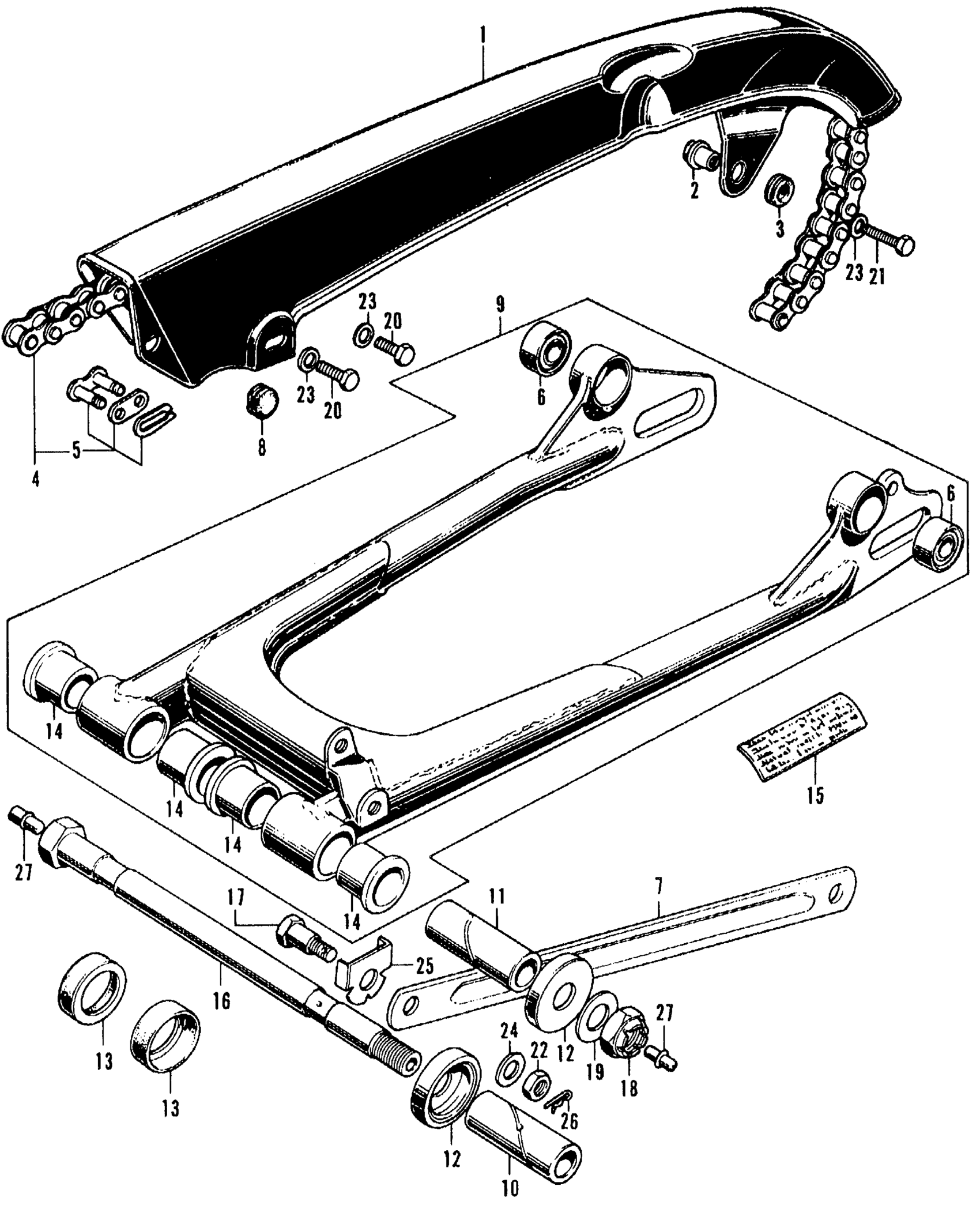

Honda CL350K2A MOTORCYCLE, JPN, VIN# CL350-2000001 DRIVE CHAIN + CASE + SWINGARM Diagram

#

Description
Price

1

CASE, DRIVE CHAIN *NH1* (BLACK) (NOT AVAILABLE)

40510-317-000B

Unavailable

2

NUT, CHAIN CASE MOUNTING (NOT AVAILABLE)

40512-317-000

Unavailable

3

RUBBER, CHAIN CASE SETTING

40513-310-000

$2.55

4

CHAIN, DRIVE (RK50KS-102L) (TAKASAGO) (NOT AVAILABLE) This part replaces 40530-286-003.

405W3-413-505

Unavailable

5

MASTER LINK This part replaces 40531-286-003.

40531-413-951

Unavailable

5

MASTER LINK This part replaces 40531-333-003.

40531-413-951

Unavailable

5

MASTER LINK This part replaces 40531-413-003.

40531-413-951

Unavailable

5

MASTER LINK

40531-413-951

Unavailable

6

RUBBER, RR. SWINGARM (LOWER)

40548-268-000

$7.95

7

ARM, RR. BRAKE STOPPER (NOT AVAILABLE)

43431-286-010

Unavailable

8

PLUG

50318-041-600

$2.11

9

SWINGARM, RR. *NH1* (BLACK) (NOT AVAILABLE)

52100-317-000B

Unavailable

10

COLLAR, SWINGARM CENTER (NOT AVAILABLE)

52141-268-000

Unavailable

11

COLLAR, SWINGARM CENTER (NOT AVAILABLE)

52141-286-000

Unavailable

12

CAP, DUST SEAL (NOK) This part replaces 52144-268-000.

52144-356-005

$17.31

12

CAP, DUST SEAL (NOK) This part replaces 52144-329-000.

52144-356-005

$17.31

12

CAP, DUST SEAL (NOK)

52144-356-005

$17.31

13

RUBBER, SWINGARM DUST SEAL CAP This part replaces 52145-268-000.

52145-329-000

$7.36

13

RUBBER, SWINGARM DUST SEAL CAP

52145-329-000

$7.36

14

BUSH, SWINGARM PIVOT This part replaces 52174-286-300.

52174-329-300

Unavailable

14

BUSH, SWINGARM PIVOT

52174-329-300

Unavailable

15

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

16

BOLT, SWINGARM PIVOT This part replaces 90121-286-000.

90121-349-690

Unavailable

17

BOLT, RR. BRAKE STOPPER ARM

90133-286-000

$4.48

18

NUT, LOCK (14MM) (NOT AVAILABLE)

90354-290-303

Unavailable

20

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

20

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

20

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

21

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

21

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

21

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

22

NUT, HEX. (8MM)

94002-08000-0S

$1.49

23

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

23

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

23

WASHER, PLAIN (6MM)

94101-06800

$1.49

24

WASHER, PLAIN (8MM)

94101-08000

$1.49

25

WASHER D, TONGUED (NOT AVAILABLE) This part replaces 90532-286-000.

94108-41000

Unavailable

26

PIN, LOCK (8MM)

94251-08000

$1.49

27

FITTING, GREASE (A.45) This part replaces 96201-30000.

96201-30001

$1.49

27

FITTING, GREASE (A.45)

96201-30001

$1.49
