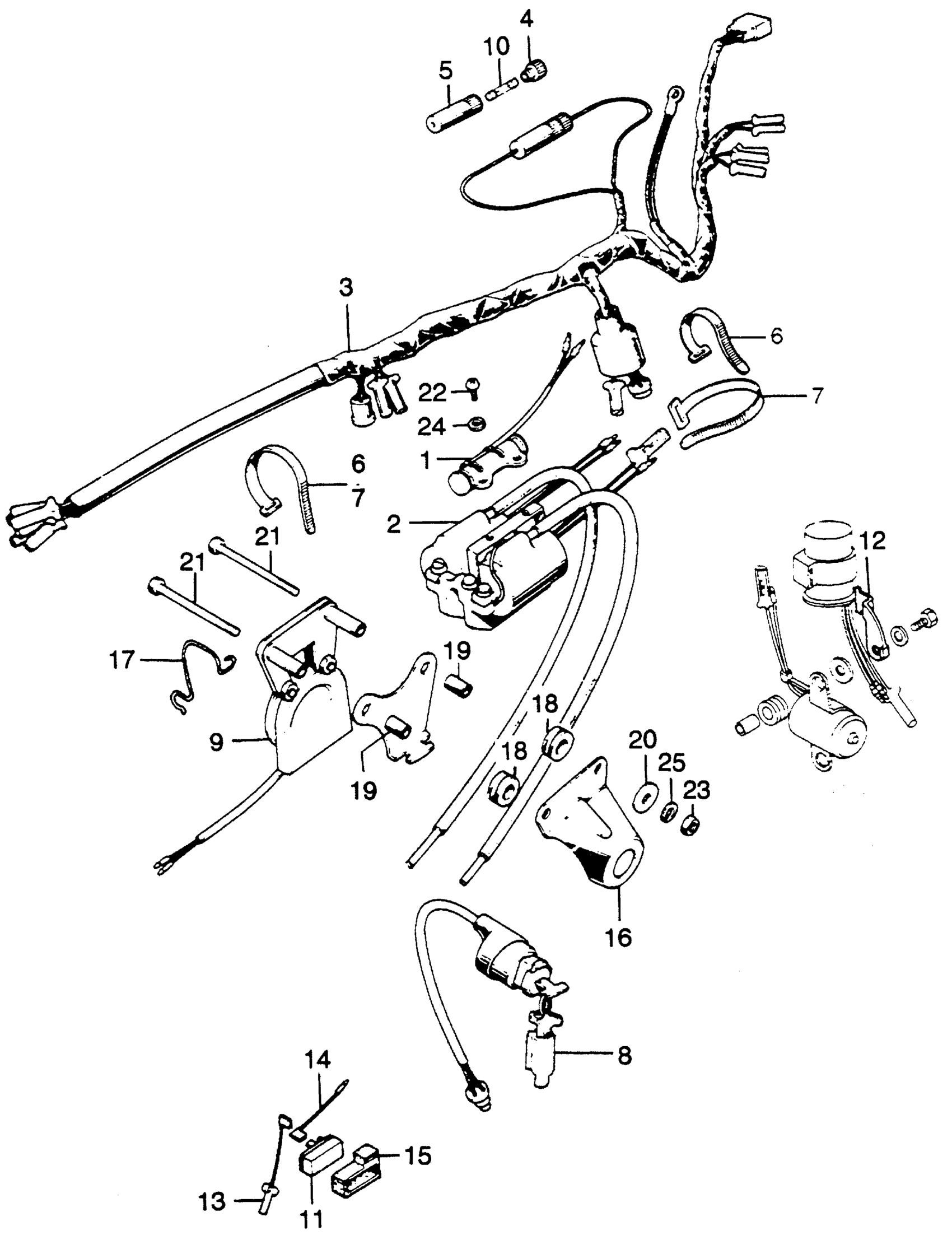

Honda CL350A MOTORCYCLE, JPN, VIN# CL350-1000001 WIRE HARNESS + IGNITION COIL Diagram

#

Description
Price

1

CONDENSER (TOYO) This part replaces 30280-292-671.

30280-292-672

Unavailable

1

CONDENSER (TOYO)

30280-292-672

Unavailable

2

COIL ASSY., IGNITION (NOT AVAILABLE) This part replaces 30500-286-004.

30500-312-007

Unavailable

2

COIL ASSY., IGNITION (NOT AVAILABLE) This part replaces 30500-286-007.

30500-312-007

Unavailable

2

COIL ASSY., IGNITION (NOT AVAILABLE) This part replaces 30500-310-670.

30500-312-007

Unavailable

2

COIL ASSY., IGNITION (NOT AVAILABLE)

30500-312-007

Unavailable

3

WIRE HARNESS (NOT AVAILABLE) | Use from Frame SN 1042663

32100-286-305

Unavailable

3

WIRE HARNESS (NOT AVAILABLE) | Use up to Frame SN 1033993 This part replaces 32100-286-671.

32100-286-672

Unavailable

3

WIRE HARNESS (NOT AVAILABLE) | Use up to Frame SN 1042662

32100-286-672

Unavailable

3

WIRE HARNESS (NOT AVAILABLE) | Use from Frame SN 1042663 This part replaces 32100-286-673.

32100-286-305

Unavailable

4

CONNECTOR B, FUSE (NOT AVAILABLE)

32106-253-010

Unavailable

5

CONNECTOR A, FUSE (NOT AVAILABLE)

32112-253-010

Unavailable

6

BAND B1, CABLE This part replaces 32161-268-000.

32161-404-000

$2.23

6

BAND B1, CABLE

32161-404-000

$2.23

6

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

7

BAND B2, CABLE HARNESS | Use up to Frame SN 1028787 This part replaces 32161-286-000.

95014-62200

$2.11

7

BAND B2, CABLE HARNESS | Use from Frame SN 1028788 This part replaces 32161-286-000.

95014-62200

$2.11

7

BAND B2, CABLE HARNESS | Use up to Frame SN 1028787 This part replaces 32162-283-000.

95014-62200

$2.11

7

BAND B2, CABLE HARNESS | Use up to Frame SN 1028787 This part replaces 32162-286-000.

95014-62200

$2.11

7

BAND B2, CABLE HARNESS | Use from Frame SN 1028788 This part replaces 32162-286-000.

95014-62200

$2.11

7

BAND B2, CABLE HARNESS | Use up to Frame SN 1028787

95014-62200

$2.11

7

BAND B2, CABLE HARNESS | Use from Frame SN 1028788

95014-62200

$2.11

8

SWITCH, IGNITION This part replaces 35010-292-013.

35010-315-017

Unavailable

8

SWITCH, IGNITION This part replaces 35010-300-003.

35010-315-017

Unavailable

8

SWITCH, IGNITION This part replaces 35010-303-003.

35010-315-017

Unavailable

8

SWITCH, IGNITION This part replaces 35010-315-007.

35010-315-017

Unavailable

8

SWITCH, IGNITION

35010-315-017

Unavailable

8

SWITCH, IGNITION This part replaces 35010-336-611.

35010-315-017

Unavailable

9

HORN ASSY. (NOT AVAILABLE)

38100-286-014

Unavailable

10

FUSE A (15A) This part replaces 38201-250-000.

98200-11500

$1.49

10

FUSE A (15A)

98200-11500

$1.49

11

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38300-292-670.

38301-KJ6-743

$60.65

11

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-KJ6-741.

38301-KJ6-743

$60.65

11

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-KJ6-742.

38301-KJ6-743

$60.65

11

RELAY, TURN SIGNAL (MITSUBA)

38301-KJ6-743

$60.65

12

STAY, TURN SIGNAL RELAY (NOT AVAILABLE) | Use from Frame SN 1042663

38301-292-672

Unavailable

12

STAY, TURN SIGNAL RELAY This part replaces 38301-286-670.

38301-286-671

Unavailable

12

STAY, TURN SIGNAL RELAY

38301-286-671

Unavailable

12

STAY, TURN SIGNAL RELAY | Use up to Frame SN 1042662

38301-286-671

Unavailable

13

SUB-WIRE A, TURN SIGNAL RELAY (NOT AVAILABLE) | Use from Frame SN 1046529

38304-243-670

Unavailable

13

SUB-WIRE A, TURN SIGNAL RELAY (NOT AVAILABLE) | Use up to Frame SN 1046528

38304-292-670

Unavailable

14

SUB-WIRE B, TURN SIGNAL RELAY (NOT AVAILABLE) | Use from Frame SN 1046529

38305-243-670

Unavailable

14

SUB-WIRE B, TURN SIGNAL RELAY (NOT AVAILABLE) | Use up to Frame SN 1046528

38305-292-670

Unavailable

15

SUSPENSION, TURN SIGNAL RELAY (NOT AVAILABLE)

38306-292-670

Unavailable

16

BRACKET, MAIN SWITCH (NOT AVAILABLE) | Use up to Frame SN 1024640

50375-292-010Z

Unavailable

16

BRACKET, MAIN SWITCH *NH1* (BLACK) (NOT AVAILABLE) | Use from Frame SN 1024641

50375-292-020B

Unavailable

17

CLAMP, TACHOMETER CABLE (NOT AVAILABLE)

50462-286-000

Unavailable

18

RUBBER, RR. FENDER CUSHION | Use from Frame SN 1024641

80101-283-000

$4.91

18

RUBBER, BRACKET CUSHION

84705-292-000

$2.79

19

COLLAR, NUMBER BRACKET SETTING | Use from Frame SN 1024641

84706-286-000

$2.99

20

WASHER (18MM) | Use from Frame SN 1024641 This part replaces 90581-701-000.

90581-831-650

$1.87

20

WASHER (18MM) | Use from Frame SN 1024641

90581-831-650

$1.87

21

BOLT, HEX. (6X80) (SOURCE: VINTAGE PARTS INC.) This part replaces 92000-06080.

92101-06080-0A

Unavailable

21

BOLT, HEX. (6X80) (SOURCE: VINTAGE PARTS INC.)

92101-06080-0A

Unavailable

22

SCREW, PAN (5X8)

93500-05008-0A

$1.49

23

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM)

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

24

WASHER, SPRING (5MM)

94111-05000

$1.49

25

WASHER, SPRING (6MM)

94111-06000

$1.49
