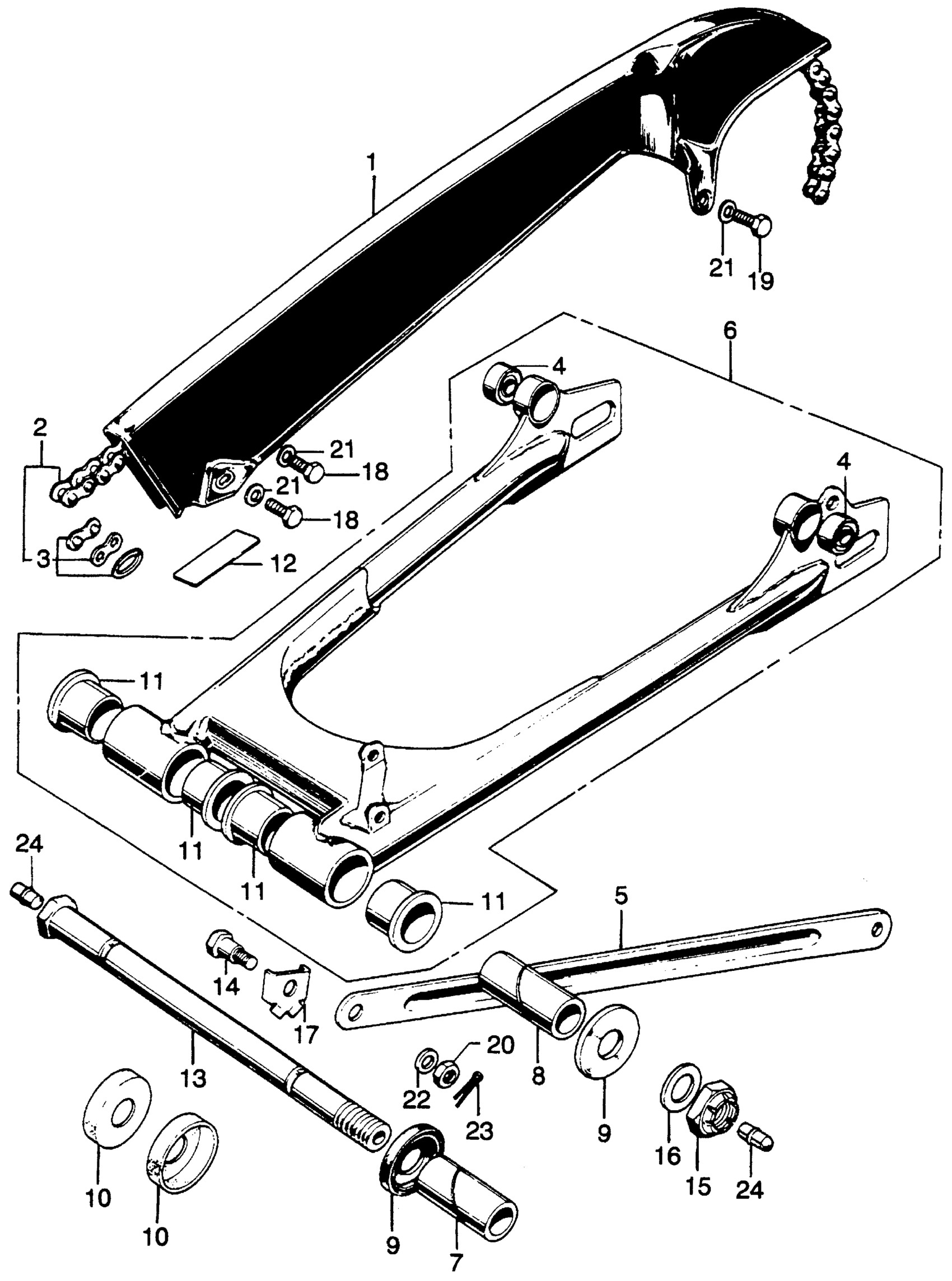

Honda CL350A MOTORCYCLE, JPN, VIN# CL350-1000001 SWINGARM Diagram

#

Description
Price

1

CASE, DRIVE CHAIN *MRCR2* (CHROME PLATING) (NOT AVAILABLE)

40510-286-000XW

Unavailable

2

CHAIN, DRIVE (RK50KS-102L) (TAKASAGO) (NOT AVAILABLE) This part replaces 40530-286-003.

405W3-413-505

Unavailable

3

MASTER LINK This part replaces 40531-286-003.

40531-413-951

Unavailable

3

MASTER LINK This part replaces 40531-333-003.

40531-413-951

Unavailable

3

MASTER LINK This part replaces 40531-413-003.

40531-413-951

Unavailable

3

MASTER LINK

40531-413-951

Unavailable

4

RUBBER, RR. SWINGARM (LOWER)

40548-268-000

$7.95

5

ARM, RR. BRAKE STOPPER (NOT AVAILABLE)

43431-286-010

Unavailable

6

SWINGARM *NH1* (BLACK)

52100-286-010B

Unavailable

7

COLLAR, SWINGARM CENTER (NOT AVAILABLE)

52141-268-000

Unavailable

8

COLLAR, SWINGARM CENTER (NOT AVAILABLE)

52141-286-000

Unavailable

9

CAP, DUST SEAL (NOK) This part replaces 52144-268-000.

52144-356-005

$17.31

9

CAP, DUST SEAL (NOK) This part replaces 52144-329-000.

52144-356-005

$17.31

9

CAP, DUST SEAL (NOK)

52144-356-005

$17.31

10

RUBBER, SWINGARM DUST SEAL CAP This part replaces 52145-268-000.

52145-329-000

$7.36

10

RUBBER, SWINGARM DUST SEAL CAP

52145-329-000

$7.36

11

BUSH, SWINGARM PIVOT This part replaces 52174-286-300.

52174-329-300

Unavailable

11

BUSH, SWINGARM PIVOT

52174-329-300

Unavailable

12

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

13

BOLT, SWINGARM PIVOT This part replaces 90121-286-000.

90121-349-690

Unavailable

14

BOLT, RR. BRAKE STOPPER ARM

90133-286-000

$4.48

15

NUT, LOCK (14MM) (NOT AVAILABLE)

90354-290-303

Unavailable

16

WASHER (14X26) This part replaces 90526-216-000.

90527-634-670

Unavailable

16

WASHER (14X26)

90527-634-670

Unavailable

17

WASHER D, TONGUED (NOT AVAILABLE) This part replaces 90532-286-000.

94108-41000

Unavailable

17

WASHER D, TONGUED (NOT AVAILABLE)

94108-41000

Unavailable

18

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

18

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

18

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

19

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

20

NUT, HEX. (8MM)

94002-08000-0S

$1.49

21

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

21

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

21

WASHER, PLAIN (6MM)

94101-06800

$1.49

22

WASHER, PLAIN (8MM)

94101-08000

$1.49

23

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

23

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

23

PIN, COTTER (2.0X22)

94201-20220

$1.49

23

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

23

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

23

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

23

PIN, COTTER (2.0X35)

94201-20350

$1.49

23

PIN, COTTER (2.0X22)

94201-29220

$1.49

24

FITTING, GREASE (A.45)

96201-30001

$1.49
