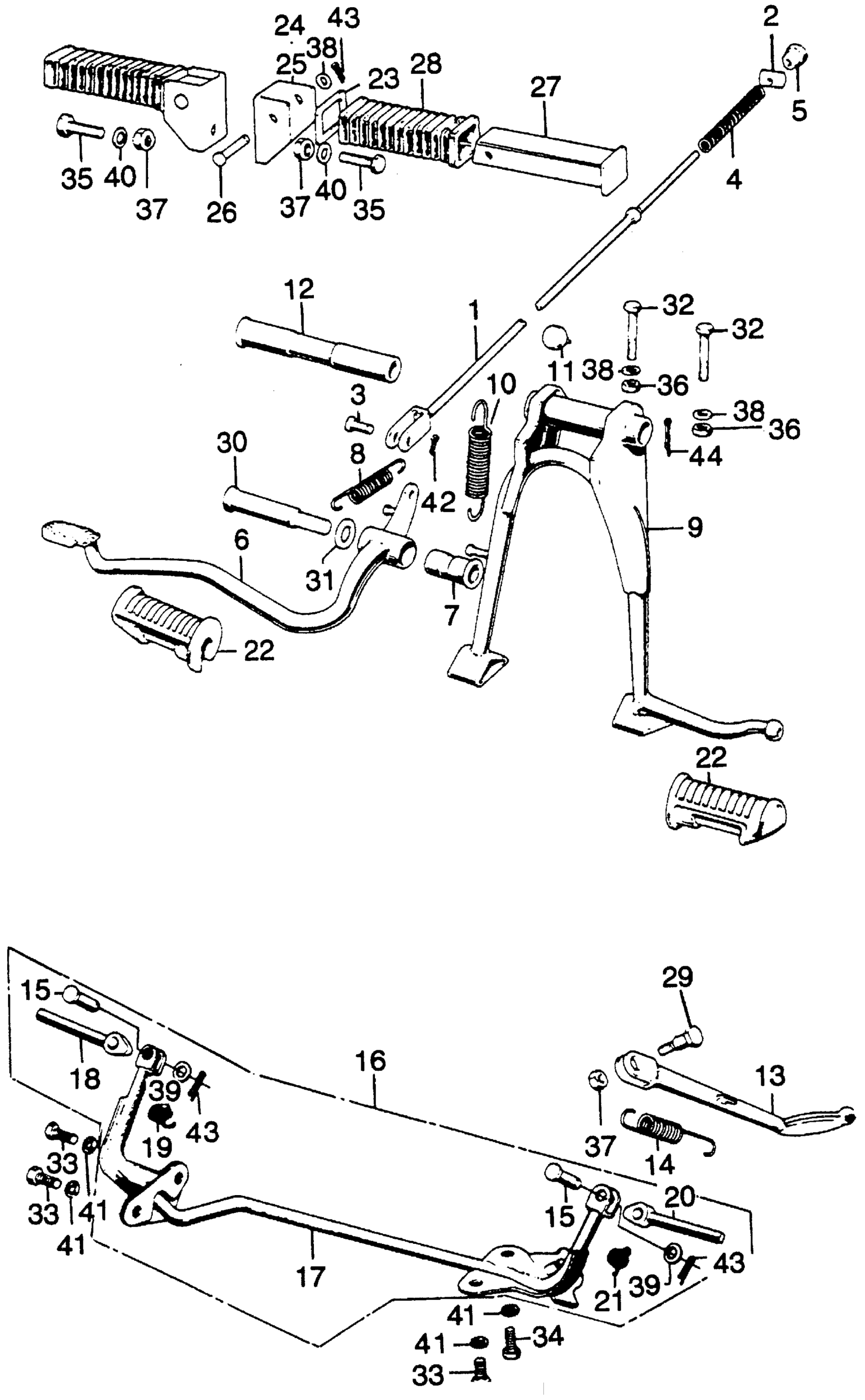

Honda CL350A MOTORCYCLE, JPN, VIN# CL350-1000001 STAND + STEP Diagram

#

Description
Price

1

ROD, RR. BRAKE (NOT AVAILABLE) | Use up to Frame SN 1022920 This part replaces 43451-286-000.

43451-286-010

Unavailable

1

ROD, RR. BRAKE (NOT AVAILABLE)

43451-286-010

Unavailable

2

JOINT B, BRAKE ARM This part replaces 43453-250-000.

95015-32001

$1.49

2

JOINT B, BRAKE ARM This part replaces 95015-32000.

95015-32001

$1.49

2

JOINT, BRAKE ARM

95015-32001

$1.49

3

PIN B, BRAKE ROD JOINT | Use up to Frame SN 1022920 This part replaces 43471-292-000.

95015-52000

$2.03

3

PIN B, BRAKE ROD JOINT This part replaces 43471-292-010.

95015-52000

$2.03

3

PIN B, BRAKE ROD JOINT | Use up to Frame SN 1022920 This part replaces 43471-292-010.

95015-52000

$2.03

3

PIN B, BRAKE ROD JOINT This part replaces 46517-361-000.

95015-52000

$2.03

3

PIN B, BRAKE ROD JOINT | Use up to Frame SN 1022920 This part replaces 46517-361-000.

95015-52000

$2.03

3

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

3

PIN B, BRAKE ROD JOINT | Use up to Frame SN 1022920

95015-52000

$2.03

4

SPRING A, BRAKE ROD This part replaces 43472-212-000.

95014-73100

$1.49

4

SPRING A, BRAKE ROD

95014-73100

$1.49

4

SPRING A, BRAKE ROD This part replaces 95014-73300.

95014-73100

$1.49

5

NUT B, BRAKE ROD ADJUSTING This part replaces 43486-250-000.

95015-42000

$1.83

5

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

6

PEDAL, BRAKE

46500-286-000

Unavailable

7

COLLAR, BRAKE PEDAL (NOT AVAILABLE)

46506-286-000

Unavailable

8

SPRING, BRAKE PEDAL (NOT AVAILABLE) This part replaces 46514-286-010.

46514-286-020

Unavailable

8

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-286-020

Unavailable

9

STAND, MAIN *NH1* (BLACK) (NOT AVAILABLE)

50500-290-000B

Unavailable

10

SPRING F, MAIN STAND (NOT AVAILABLE) This part replaces 50522-286-000.

95014-71602

Unavailable

10

SPRING F, MAIN STAND (NOT AVAILABLE) This part replaces 95014-71600.

95014-71602

Unavailable

10

SPRING F, MAIN STAND (NOT AVAILABLE) This part replaces 95014-71601.

95014-71602

Unavailable

10

SPRING F, MAIN STAND (NOT AVAILABLE)

95014-71602

Unavailable

11

RUBBER B, STAND STOPPER This part replaces 50524-011-000.

95011-62000

$1.49

11

RUBBER B, STAND STOPPER

95011-62000

$1.49

12

SHAFT, MAIN STAND PIVOT This part replaces 50526-286-000.

50526-399-000

Unavailable

12

SHAFT, MAIN STAND PIVOT

50526-399-000

Unavailable

13

BAR, SIDE STAND (NOT AVAILABLE) This part replaces 50530-294-000.

50530-341-670

Unavailable

13

BAR, SIDE STAND (NOT AVAILABLE) This part replaces 50530-300-000.

50530-341-670

Unavailable

13

BAR, SIDE STAND (NOT AVAILABLE) This part replaces 50530-341-000.

50530-341-670

Unavailable

13

BAR, SIDE STAND (NOT AVAILABLE)

50530-341-670

Unavailable

14

SPRING D, SIDE STAND | Use up to Frame SN 1046888 This part replaces 50542-273-000.

95014-72402

$2.92

14

SPRING D, SIDE STAND This part replaces 50542-286-000.

95014-72402

$2.92

14

SPRING D, SIDE STAND | Use up to Frame SN 1046888 This part replaces 50542-286-000.

95014-72402

$2.92

14

SPRING D, SIDE STAND This part replaces 95014-72400.

95014-72402

$2.92

14

SPRING D, SIDE STAND | Use up to Frame SN 1046888 This part replaces 95014-72400.

95014-72402

$2.92

14

SPRING D, SIDE STAND This part replaces 95014-72401.

95014-72402

$2.92

14

SPRING D, SIDE STAND | Use up to Frame SN 1046888 This part replaces 95014-72401.

95014-72402

$2.92

14

SPRING D, SIDE STAND

95014-72402

$2.92

14

SPRING D, SIDE STAND | Use up to Frame SN 1046888

95014-72402

$2.92

15

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

15

PIN, STEP BAR JOINT

50603-033-010

$3.30

16

BAR ASSY., STEP *NH1* (BLACK) (NOT AVAILABLE)

50610-290-670B

Unavailable

17

BAR ASSY., STEP *NH1* (BLACK) (NOT AVAILABLE)

50610-290-670B

Unavailable

17

BAR ASSY., STEP *NH1* (BLACK) (NOT AVAILABLE) This part replaces 50615-290-671B.

50610-290-670B

Unavailable

18

ARM, R. STEP *NH1* (BLACK)

50616-283-020B

Unavailable

19

SPRING, R. FOOTPEG RETURN (NOT AVAILABLE)

50617-283-000

Unavailable

20

ARM, L. STEP *NH1* (BLACK)

50642-283-020B

Unavailable

21

SPRING, L. STEP RETURN (NOT AVAILABLE)

50644-283-000

Unavailable

22

RUBBER, STEP This part replaces 50661-056-000.

50661-110-000

$10.76

22

RUBBER, STEP

50661-110-000

$10.76

22

RUBBER, STEP This part replaces 50661-283-010.

50661-110-000

$10.76

22

RUBBER, STEP This part replaces 95011-23000.

50661-110-000

$10.76

23

WASHER, FOOTPEG This part replaces 50712-024-000.

95015-91000

$1.31

23

WASHER, FOOTPEG

95015-91000

$1.31

24

BRACKET B, PILLION STEP (NOT AVAILABLE) This part replaces 50713-286-000.

95015-72100

Unavailable

24

BRACKET B, PILLION STEP (NOT AVAILABLE)

95015-72100

Unavailable

25

BRACKET C, PILLION STEP (NOT AVAILABLE) This part replaces 50713-290-000.

95015-73200

Unavailable

25

BRACKET C, PILLION STEP (NOT AVAILABLE)

95015-73200

Unavailable

26

PIN B, PILLION FOOTPEG This part replaces 50714-286-000.

95015-82000

$2.41

26

PIN B, PILLION FOOTPEG

95015-82000

$2.41

27

BAR B, PILLION STEP This part replaces 50715-283-000.

95015-62000

$30.68

27

BAR B, PILLION STEP

95015-62000

$30.68

28

RUBBER, PILLION STEP This part replaces 50731-024-000.

95011-31000

$7.16

28

RUBBER, PILLION STEP

95011-31000

$7.16

29

SCREW, SIDE STAND PIVOT

90108-283-000

$7.72

30

BOLT, RR. BRAKE PIVOT

90128-286-000

Unavailable

31

WASHER (14X26) This part replaces 90526-216-000.

90527-634-670

Unavailable

31

WASHER (14X26)

90527-634-670

Unavailable

32

BOLT, HEX. (6X35) This part replaces 92000-06036.

92201-06035-0A

$1.75

32

BOLT, HEX. (6X35) This part replaces 92200-06035.

92201-06035-0A

$1.75

32

BOLT, HEX. (6X35)

92201-06035-0A

$1.75

33

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

33

BOLT, HEX. (8X16)

92101-08016-0A

$1.49

34

BOLT, HEX. (8X25) This part replaces 92000-08025-0A.

92101-08025-0A

$1.74

34

BOLT, HEX. (8X25)

92101-08025-0A

$1.74

35

BOLT, HEX. (10X25) This part replaces 92000-10025-0A.

92101-10025-0A

$2.19

35

BOLT, HEX. (10X25)

92101-10025-0A

$2.19

36

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

36

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

36

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

36

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

36

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

36

NUT, HEX. (6MM)

94001-06200-0S

$1.49

36

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

37

NUT, HEX. (10MM)

94001-10000-0S

$1.49

38

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

38

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

38

WASHER, PLAIN (6MM)

94101-06800

$1.49

39

WASHER, PLAIN (8MM)

94101-08000

$1.49

40

WASHER, PLAIN (10MM)

94101-10000

$1.49

41

WASHER, SPRING (8MM)

94111-08000

$1.49

42

PIN, COTTER (1.6X12)

94201-16120

$1.49

43

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

43

PIN, COTTER (1.6X25)

94201-16250

$1.49

44

PIN, COTTER (2.5MM)

94201-25300

$1.49
