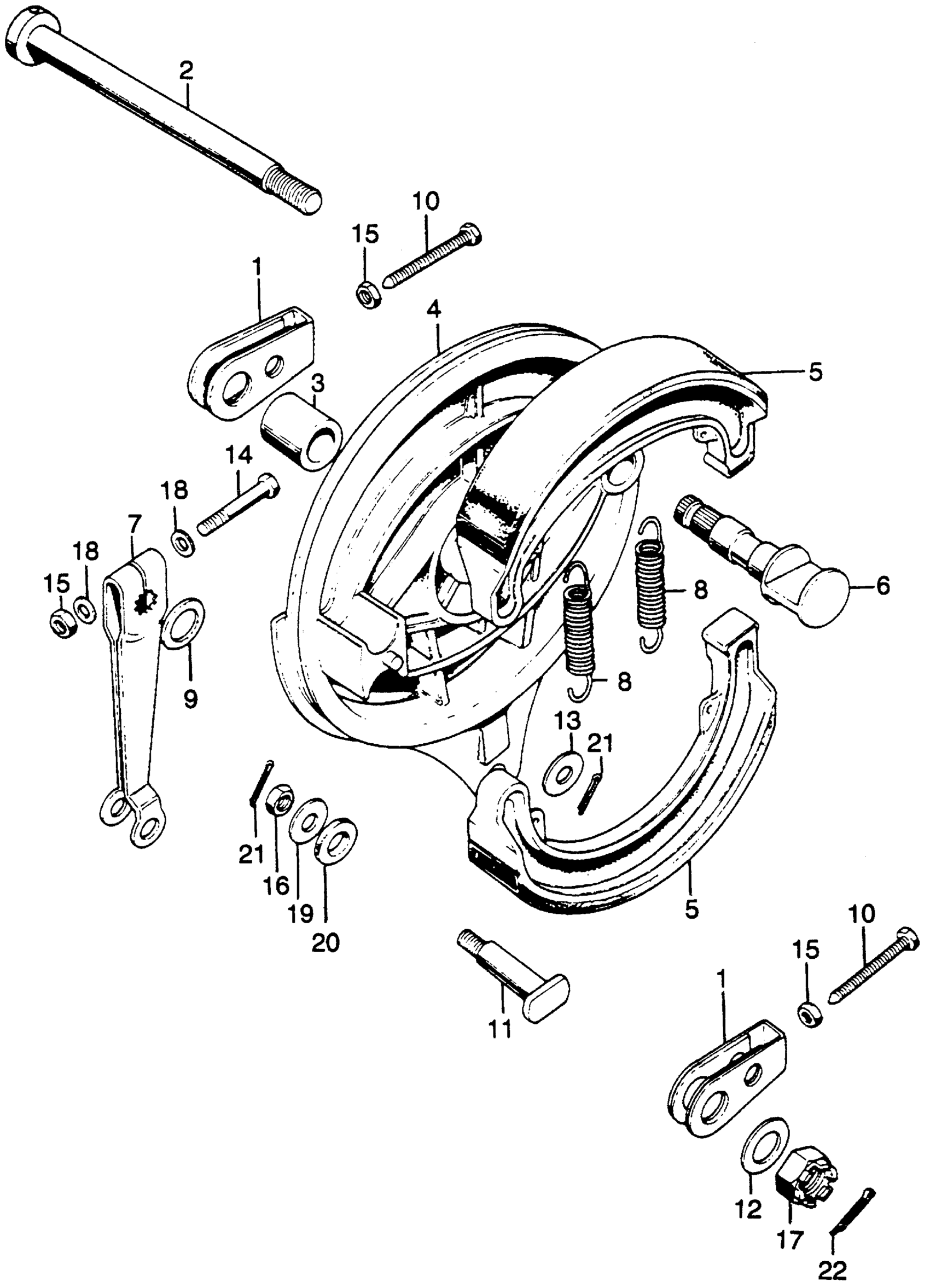

Honda CL350A MOTORCYCLE, JPN, VIN# CL350-1000001 REAR BRAKE PANEL Diagram

#

Description
Price

NI

SHOE SET, RR. BRAKE This part replaces 06430-HC4-671.

06430-HM5-A80

$36.79

NI

SHOE SET, RR. BRAKE This part replaces 06430-HC4-901.

06430-HM5-A80

$36.79

NI

SHOE SET, RR. BRAKE

06430-HM5-A80

$36.79

NI

SHOE SET, RR. BRAKE This part replaces 431A2-KG4-006.

06430-HM5-A80

$36.79

1

ADJUSTER, DRIVE CHAIN This part replaces 40543-286-000.

95014-17000

Unavailable

1

ADJUSTER, DRIVE CHAIN

95014-17000

Unavailable

2

AXLE, RR. WHEEL (NOT AVAILABLE) This part replaces 42301-286-010.

42301-286-020

Unavailable

2

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-286-020

Unavailable

3

COLLAR, RR. BRAKE PANEL SIDE (NOT AVAILABLE)

42313-286-000

Unavailable

4

PANEL, RR. BRAKE

43100-286-010

Unavailable

5

SHOE, RR. BRAKE (ASK) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 43120-KG4-000.

43120-KG4-006

Unavailable

5

SHOE, RR. BRAKE (ASK) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 43120-KG4-003.

43120-KG4-006

Unavailable

5

SHOE, RR. BRAKE (ASK) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

43120-KG4-006

Unavailable

5

SHOE, RR. BRAKE (ASK) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 43120-286-000.

43120-KG4-006

Unavailable

5

SHOE, RR. BRAKE (ASK) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 43120-369-670.

43120-KG4-006

Unavailable

5

SHOE, RR. BRAKE (ASK) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 43120-943-680.

43120-KG4-006

Unavailable

6

CAM, RR. BRAKE

43141-286-010

Unavailable

7

ARM, RR. BRAKE (NOT AVAILABLE) This part replaces 43410-286-000.

43410-333-670

Unavailable

7

ARM, RR. BRAKE (NOT AVAILABLE) This part replaces 43410-310-000.

43410-333-670

Unavailable

8

SPRING, BRAKE SHOE

45133-240-000

Unavailable

9

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

10

BOLT, CHAIN ADJUSTING

90119-258-000

$5.99

11

BOLT, RR. BRAKE PANEL STOPPER (NOT AVAILABLE)

90127-283-000

Unavailable

12

WASHER (16.5X30) (NOT AVAILABLE)

90523-286-000

Unavailable

13

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

14

BOLT, HEX. (6X35) This part replaces 92200-06035.

92201-06035-0A

$1.75

14

BOLT, HEX. (6X35) This part replaces 92200-06036.

92201-06035-0A

$1.75

14

BOLT, HEX. (6X36)

92201-06035-0A

$1.75

15

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM)

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

16

NUT, HEX. (8MM)

94001-08000-0S

$1.49

17

NUT, CASTLE (16MM) (NOT AVAILABLE)

94011-16220-0S

Unavailable

18

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

18

WASHER, PLAIN (6MM)

94101-06800

$1.49

19

WASHER A, HANDLE HOLDER SETTING | Use from Frame SN 1006763

90524-030-000

$1.49

19

WASHER, PLAIN (8MM) | Use up to Frame SN 1006762

94101-08000

$1.49

20

RUBBER, STOPPER ARM CUSHION | Use from Frame SN 1006763

43434-286-000

$2.92

20

WASHER, SPRING (8MM) | Use up to Frame SN 1006762

94111-10000

$1.49

21

PIN, COTTER (2.0X15)

94201-20150

$1.49

22

PIN, COTTER (4.0X30)

94201-40300

$1.49
