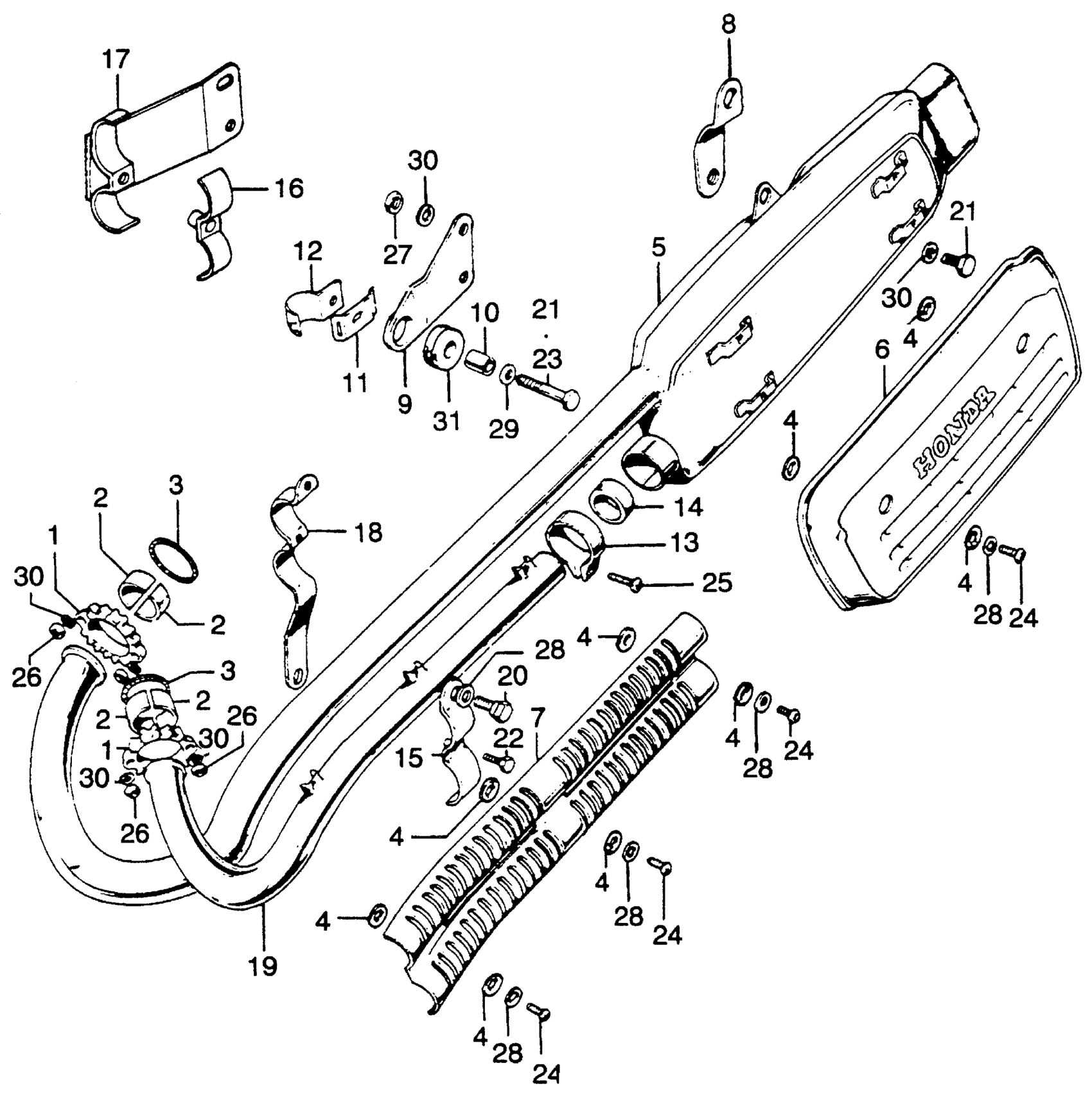

Honda CL350A MOTORCYCLE, JPN, VIN# CL350-1000001 MUFFLER (CL) Diagram

#

Description
Price

1

JOINT, EX. PIPE | Use up to Frame SN 1020152

18231-286-010

$34.69

1

JOINT, EX. PIPE | Use from Frame SN 1020153 to 1057068 This part replaces 18231-286-020.

18231-312-000

Unavailable

1

JOINT, EX. PIPE | Use from Frame SN 1020153 to 1057068 This part replaces 18231-286-030.

18231-312-000

Unavailable

1

JOINT, EX. PIPE | Use from Frame SN 1020153 This part replaces 18231-286-030.

18231-312-000

Unavailable

1

JOINT, EX. PIPE | Use from Frame SN 1020153 to 1057068

18231-312-000

Unavailable

1

JOINT, EX. PIPE | Use from Frame SN 1020153

18231-312-000

Unavailable

2

COLLAR, EX. PIPE JOINT

18233-286-000

Unavailable

3

GASKET, EX. PIPE This part replaces 18291-286-000.

18291-286-306

$7.19

3

GASKET, EX. PIPE

18291-286-306

$7.19

4

GASKET, PROTECTOR

18292-167-890

$1.88

4

GASKET, PROTECTOR This part replaces 18292-290-000.

18292-167-890

$1.88

4

GASKET, PROTECTOR This part replaces 18292-329-000.

18292-167-890

$1.88

5

MUFFLER, R. EX. (NOT AVAILABLE) This part replaces 18300-290-020.

18300-290-027

Unavailable

5

MUFFLER, R. EX. (NOT AVAILABLE)

18300-290-027

Unavailable

6

PROTECTOR, MUFFLER (NOT AVAILABLE)

18315-290-000

Unavailable

7

PROTECTOR, EX. PIPE (NOT AVAILABLE)

18325-290-020

Unavailable

8

STAY, RR. MUFFLER MOUNT (NOT AVAILABLE)

18340-290-000

Unavailable

9

STAY, FR. MUFFLER MOUNT *NH1* (BLACK) | Use up to Frame SN 1026254

18345-290-010B

Unavailable

9

STAY, FR. MUFFLER MOUNT *NH1* (BLACK) (NOT AVAILABLE) | Use from Frame SN 1026255

18345-290-020B

Unavailable

10

COLLAR, FR. MUFFLER MOUNT (NOT AVAILABLE) | Use from Frame SN 1026255

18346-290-000

Unavailable

11

BRACKET A, MUFFLER MOUNT *NH1* (BLACK) (NOT AVAILABLE)

18354-290-010B

Unavailable

12

BRACKET B, MUFFLER MOUNT *NH1* (BLACK) (NOT AVAILABLE)

18355-290-010B

Unavailable

13

BAND, R. MUFFLER (NOT AVAILABLE) This part replaces 18371-294-000.

18371-286-300

Unavailable

14

GASKET, MUFFLER This part replaces 18391-290-000.

18391-290-306

Unavailable

15

HOLDER A, EX. PIPE (NOT AVAILABLE) | Use from Frame SN 1017963

18395-290-010

Unavailable

16

HOLDER A, EX. PIPE (NOT AVAILABLE) | Use up to Frame SN 1017962 This part replaces 18395-290-303.

18395-294-000

Unavailable

16

HOLDER A, EX. PIPE (NOT AVAILABLE) | Use up to Frame SN 1017962

18395-294-000

Unavailable

17

HOLDER B, EX. PIPE (NOT AVAILABLE) | Use up to Frame SN 1017962

18396-290-303

Unavailable

18

HOLDER C, EX. PIPE (NOT AVAILABLE) | Use from Frame SN 1017963

18397-290-000

Unavailable

19

PIPE, L. EX. (NOT AVAILABLE)

18420-290-010

Unavailable

20

BOLT, HEX. (6X14) BOLT, FLANGE (6X14) This part replaces 92000-06014.

92101-06014-0A

$1.49

20

BOLT, HEX. (6X14)

92101-06014-0A

$1.49

21

BOLT, HEX. (8X16) | Use up to Frame SN 1026254 This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

21

BOLT, HEX. (8X16) | Use from Frame SN 1026255 This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

21

BOLT, HEX. (8X16) | Use up to Frame SN 1026254

92101-08016-0A

$1.49

21

BOLT, HEX. (8X16) | Use from Frame SN 1026255

92101-08016-0A

$1.49

22

BOLT, HEX. (8X28) This part replaces 92000-08028-0A.

92101-08028-0A

$1.80

22

BOLT, HEX. (8X28)

92101-08028-0A

$1.80

23

BOLT, HEX. (8X32) | Use from Frame SN 1026255 This part replaces 92000-08032-0A.

92101-08032-0B

$2.39

23

BOLT, HEX. (8X32) | Use from Frame SN 1026255 This part replaces 92000-08032-0B.

92101-08032-0B

$2.39

23

BOLT, HEX. (8X32) | Use from Frame SN 1026255

92101-08032-0B

$2.39

24

SCREW, PAN (6X14)

93500-06014-02

$1.49

25

SCREW, PAN (6X16) This part replaces 93500-06016.

93500-06016-0A

$1.49

25

SCREW, PAN (6X16)

93500-06016-0A

$1.49

26

NUT, HEX. (6MM) | Use up to Frame SN 1020152 This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) | Use up to Frame SN 1020152 This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) | Use up to Frame SN 1020152 This part replaces 94001-06000.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) | Use up to Frame SN 1020152 This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) | Use up to Frame SN 1020152 This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) | Use up to Frame SN 1020152

94001-06200-0S

$1.49

26

NUT, HEX. (8MM) | Use from Frame SN 1020153

94001-08000-0S

$1.49

26

NUT, HEX. (6MM) | Use up to Frame SN 1020152 This part replaces 94030-06000.

94001-06200-0S

$1.49

27

NUT, HEX. (8MM)

94001-08000-0S

$1.49

28

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

28

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

28

WASHER, PLAIN (6MM)

94101-06800

$1.49

29

WASHER, PLAIN (8MM)

94101-08000

$1.49

30

WASHER, SPRING (8MM)

94111-08000

$1.49

31

RUBBER, RR. FENDER SETTING (NOT AVAILABLE) | Use from Frame SN 1026255

80102-292-670

Unavailable
