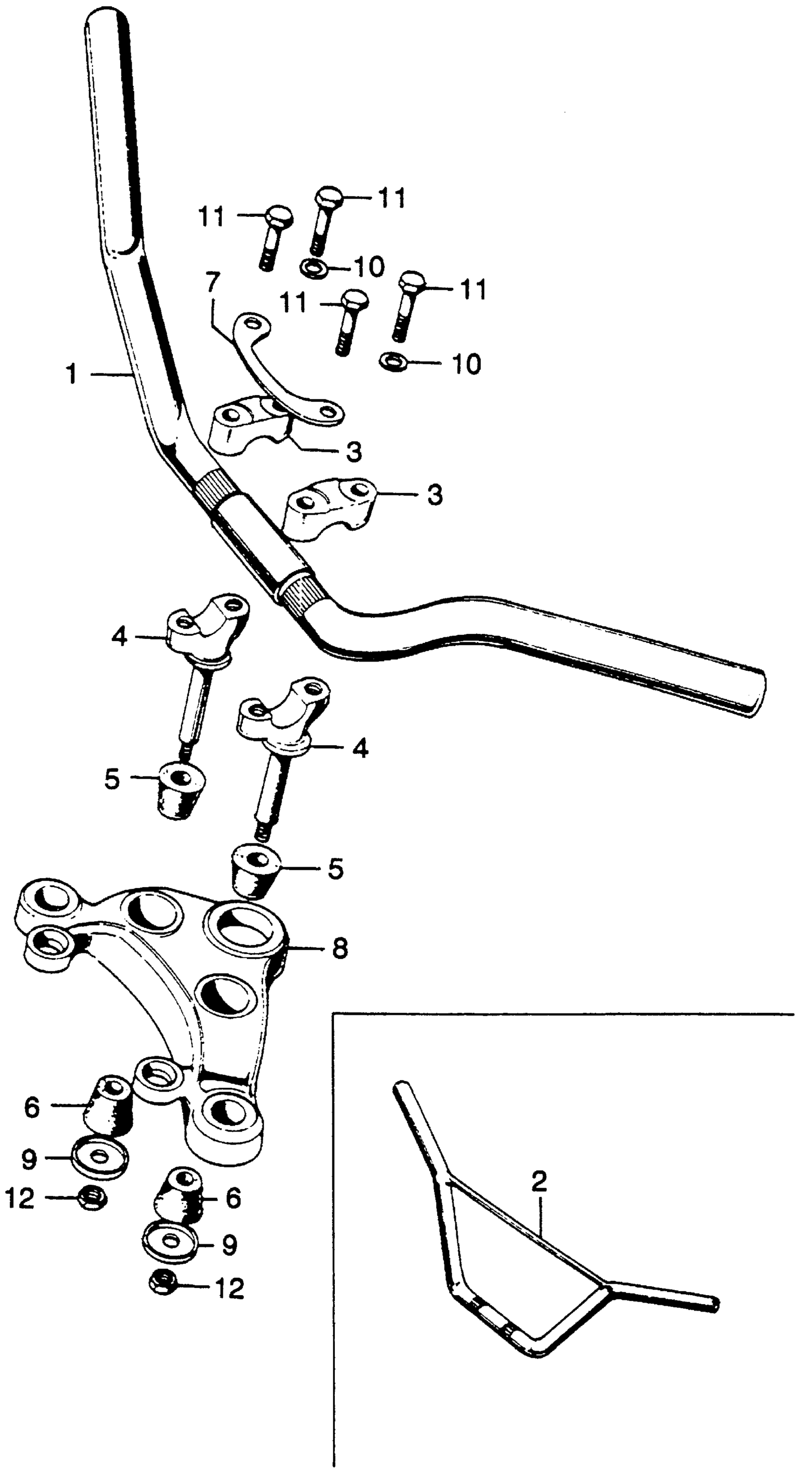

Honda CL350A MOTORCYCLE, JPN, VIN# CL350-1000001 HANDLEBAR + TOP BRIDGE Diagram

#

Description
Price

2

HANDLEBAR (NOT AVAILABLE)

53100-290-000

Unavailable

3

HOLDER B1, HANDLEBAR (UPPER) This part replaces 53131-283-000.

95014-22100

$11.14

3

HOLDER B1, HANDLEBAR (UPPER)

95014-22100

$11.14

4

HOLDER, HANDLEBAR (LOWER) | Use up to Frame SN 1062038

53132-292-010

Unavailable

5

RUBBER, HANDLEBAR CUSHION | Use up to Frame SN 1051146 This part replaces 53133-237-000.

53133-237-680

$4.56

5

RUBBER, HANDLEBAR CUSHION | Use from Frame SN 1051147 This part replaces 53133-237-000.

53133-237-680

$4.56

5

RUBBER, HANDLEBAR CUSHION | Use up to Frame SN 1051146

53133-237-680

$4.56

5

RUBBER, HANDLEBAR CUSHION | Use from Frame SN 1051147

53133-237-680

$4.56

6

RUBBER, HANDLEBAR CUSHION | Use from Frame SN 1051147

53133-303-000

$5.76

7

HOLDER, CABLE (NOT AVAILABLE)

53139-286-000

Unavailable

8

BRIDGE, FORK TOP (NOT AVAILABLE) | Use up to Frame SN 1041831

53231-286-000

Unavailable

8

BRIDGE, FORK TOP | Use from Frame SN 1041832

53231-286-010

Unavailable

9

WASHER, RUBBER | Use up to Frame SN 1051146

90535-292-000

$1.97

9

WASHER, PLAIN (8MM) | Use from Frame SN 1051147

94101-08000

$0.76

10

WASHER, PLAIN (8MM)

90518-921-000

$1.21

10

WASHER, PLAIN (8MM) This part replaces 90518-931-000.

90518-921-000

$1.21

10

WASHER, PLAIN (8MM) This part replaces 90555-283-000.

90518-921-000

$1.21

11

BOLT, HEX. (8X32) This part replaces 92000-08032-0B.

92101-08032-0B

$2.80

11

BOLT, HEX. (8X32)

92101-08032-0B

$2.80

12

NUT, HEX. (8MM)

94030-08000

Unavailable
