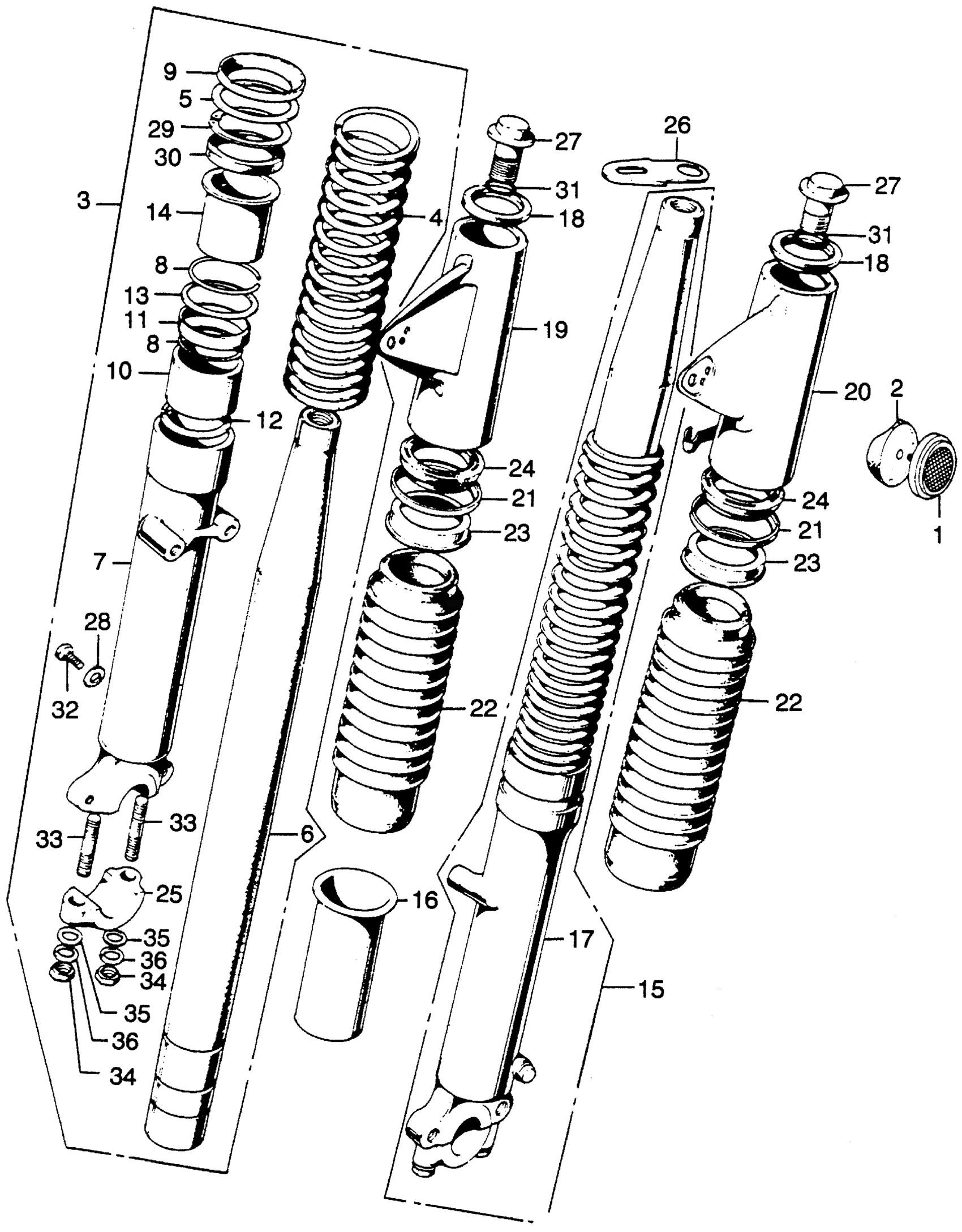

Honda CL350A MOTORCYCLE, JPN, VIN# CL350-1000001 FRONT FORK (CL) Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX | Use from Frame SN 1054116 This part replaces 33741-286-670.

33741-315-000

$25.26

1

REFLECTOR, FR. REFLEX | Use from Frame SN 1054116

33741-315-000

$25.26

2

BASE, FR. REFLEX REFLECTOR | Use from Frame SN 1054116 This part replaces 33743-286-670.

33743-341-670

Unavailable

2

BASE, FR. REFLEX REFLECTOR | Use from Frame SN 1054116

33743-341-670

Unavailable

3

FORK ASSY., R. FR. (NOT AVAILABLE)

51400-290-010

Unavailable

4

SPRING, FR. FORK (NOT AVAILABLE)

51401-286-010

Unavailable

5

SEAT, FR. FORK SPRING (NOT AVAILABLE)

51407-290-000

Unavailable

6

PIPE, FR. FORK (NOT AVAILABLE)

51410-286-020

Unavailable

7

CASE, R. FR. FORK (LOWER) (NOT AVAILABLE)

51420-290-020

Unavailable

8

RING, PISTON STOPPER (NOT AVAILABLE)

51424-283-000

Unavailable

9

GUIDE, SPRING (LOWER) (NOT AVAILABLE)

51427-286-000

Unavailable

10

PISTON, FR. FORK

51442-286-300

Unavailable

11

VALVE, FR. DAMPER (NOT AVAILABLE)

51443-268-020

Unavailable

12

RING, FR. FORK PISTON SNAP (NOT AVAILABLE)

51445-268-000

Unavailable

13

RING, FORK VALVE STOPPER (NOT AVAILABLE)

51446-268-000

Unavailable

14

GUIDE, FR. FORK PIPE (NOT AVAILABLE) This part replaces 51451-286-000.

51451-298-690

Unavailable

14

GUIDE, FR. FORK PIPE (NOT AVAILABLE)

51451-298-690

Unavailable

15

FORK ASSY., L. FR.

51500-290-010

Unavailable

16

GUIDE, SPRING (NOT AVAILABLE)

51509-286-000

Unavailable

17

CASE, L. FR. FORK (LOWER) (NOT AVAILABLE)

51520-290-020

Unavailable

18

RUBBER, FORK COVER (UPPER)

51601-292-010

Unavailable

19

COVER, R. FR. FORK (UPPER) (NOT AVAILABLE) | (Optional). Use up to Frame SN 1054115

51602-290-671Z

Unavailable

19

COVER, R. FR. FORK (UPPER) (NOT AVAILABLE) | (Optional). Use from Frame SN 1054116

51602-290-672Z

Unavailable

20

COVER, L. FR. FORK (UPPER) | (Optional). Use up to Frame SN 1054115

51606-290-671Z

Unavailable

20

COVER, L. FR. FORK (UPPER) (NOT AVAILABLE) | (Optional). Use from Frame SN 1054116

51606-290-672Z

Unavailable

21

RIB, FR. FORK (NOT AVAILABLE)

51608-290-010

Unavailable

22

BOOT, FR. FORK (NOT AVAILABLE)

51611-290-010

Unavailable

23

SEAT, SPRING (UPPER)

51620-290-010

Unavailable

24

RUBBER B, FR. FORK COVER (NOT AVAILABLE)

51622-290-000

Unavailable

25

HOLDER 1C, FR. FORK AXLE This part replaces 51634-292-000.

95014-41000

$13.38

25

HOLDER 1C, FR. FORK AXLE

95014-41000

$13.38

26

KEEPER, HELMET (NOT AVAILABLE)

53126-292-670

Unavailable

27

BOLT, FR. FORK (NOT AVAILABLE)

90123-292-000

Unavailable

28

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

29

CIRCLIP (OUTER) (44MM) (NOT AVAILABLE)

90601-286-000

$13.57

30

OIL SEAL (33X44X9)

91255-286-003

$10.42

31

O-RING (11.9X2.2) This part replaces 91304-703-000.

91370-461-000

$2.39

31

O-RING (11.9X2.2)

91370-461-000

$2.39

32

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

32

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

32

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

33

BOLT 2, STUD (8X32) This part replaces 92700-08049-0B.

92900-08032-0E

$2.17

33

BOLT 2, STUD (8X32) This part replaces 92700-08050.

92900-08032-0E

$2.17

33

BOLT 2, STUD (8X32) This part replaces 92700-08050-0A.

92900-08032-0E

$2.17

33

BOLT 2, STUD (8X32) This part replaces 92700-08050-0B.

92900-08032-0E

$2.17

33

BOLT 2, STUD (8X32) This part replaces 92700-08050-0E.

92900-08032-0E

$2.17

33

BOLT 2, STUD (8X32) This part replaces 92700-08050-00.

92900-08032-0E

$2.17

33

BOLT 2, STUD (8X32) This part replaces 92700-08050-05.

92900-08032-0E

$2.17

33

BOLT, STUD (8X50) This part replaces 92700-08050-3B.

92900-08028-3B

$1.59

33

BOLT, STUD (8X50) This part replaces 92700-08050-30.

92900-08028-3B

$1.59

33

BOLT, STUD (8X50)

92900-08028-3B

$1.59

33

BOLT 2, STUD (8X32)

92900-08032-0E

$2.17

34

NUT, HEX. (8MM)

94001-08000-0S

$1.49

35

WASHER, PLAIN (8MM)

94101-08000

$1.49

36

WASHER, SPRING (8MM)

94111-08000

$1.49
