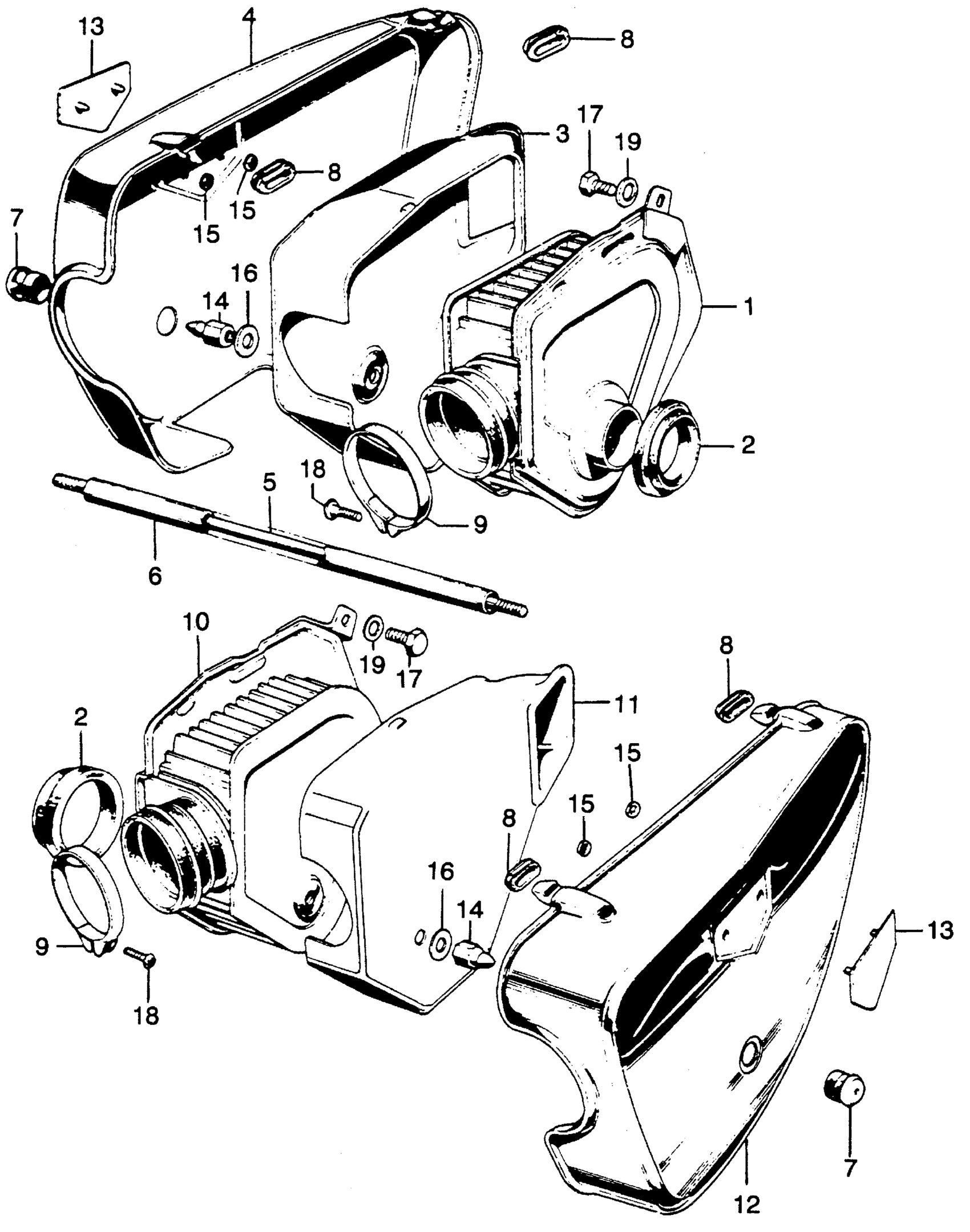

Honda CL350A MOTORCYCLE, JPN, VIN# CL350-1000001 AIR CLEANER Diagram

#

Description
Price

1

ELEMENT, R. AIR CLEANER This part replaces 17210-286-010.

17210-310-000

$62.87

1

ELEMENT, R. AIR CLEANER

17210-310-000

$62.87

2

TUBE, AIR CLEANER JOINT (NOT AVAILABLE)

17213-286-000

Unavailable

3

CASE, R. AIR CLEANER | Use up to Frame SN 1057068 This part replaces 17214-286-010.

17214-286-020

Unavailable

3

CASE, R. AIR CLEANER

17214-286-020

Unavailable

3

CASE, R. AIR CLEANER | Use up to Frame SN 1057068

17214-286-020

Unavailable

4

COVER, R. AIR CLEANER *NH0* (CHAMPIONSHIP WHITE) (NOT AVAILABLE)

17231-286-010A

Unavailable

5

BAR, AIR CLEANER ELEMENT SETTTING (NOT AVAILABLE)

17240-286-000

Unavailable

6

COLLAR, CLEANER SETTING BAR (NOT AVAILABLE) | Use up to Frame SN 1057068

17241-286-000

Unavailable

7

GROMMET B, AIR CLEANER HOUSING

17245-292-000

$15.84

8

GROMMET A, AIR CLEANER HOUSING

17247-240-000

$2.92

9

BAND, AIR CLEANER CONNECTING TUBE (56) This part replaces 17255-286-000.

95018-56200

$9.55

9

BAND, AIR CLEANER CONNECTING TUBE (56) This part replaces 90651-GHB-710.

95018-56200

$9.55

9

BAND, AIR CLEANER CONNECTING TUBE (56)

95018-56200

$9.55

10

ELEMENT, L. AIR CLEANER This part replaces 17310-286-010.

17310-310-000

$55.05

10

ELEMENT, L. AIR CLEANER

17310-310-000

$55.05

11

CASE, L. AIR CLEANER (NOT AVAILABLE) | Use up to Frame SN 1057068 This part replaces 17313-286-010.

17313-286-020

Unavailable

11

CASE, L. AIR CLEANER (NOT AVAILABLE)

17313-286-020

Unavailable

12

COVER, L. AIR CLEANER *NH0* (CHAMPIONSHIP WHITE) (NOT AVAILABLE)

17331-286-010A

Unavailable

13

EMBLEM, AIR CLEANER COVER *PB42* (SARDINE BLUE) (NOT AVAILABLE)

87128-287-010AS

Unavailable

13

EMBLEM, AIR CLEANER COVER *PB2C* (CANDY BLUE GREEN) (NOT AVAILABLE)

87128-287-010AZ

Unavailable

13

EMBLEM, AIR CLEANER COVER *G14* (PINE GREEN) (NOT AVAILABLE)

87128-287-010BA

Unavailable

13

EMBLEM, AIR CLEANER COVER *R18* (DAYTONA ORANGE) (NOT AVAILABLE)

87128-287-010BB

Unavailable

13

EMBLEM, AIR CLEANER COVER *PB39* (CALIFORNIA BLUE) (NOT AVAILABLE)

87128-287-010BC

Unavailable

13

EMBLEM, AIR CLEANER COVER *R19* (BEANS MAROON) (NOT AVAILABLE)

87128-287-010BM

Unavailable

14

NUT, AIR CLEANER ELEMENT MOUNT (NOT AVAILABLE)

90301-286-000

Unavailable

15

NUT, SPEED (3MM) This part replaces 90313-512-000.

90313-567-000

$3.97

15

NUT, SPEED (3MM)

90313-567-000

$3.97

16

WASHER, AIR CLEANER MOUNT (NOT AVAILABLE)

90546-283-000

Unavailable

17

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

17

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

17

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

18

SCREW, PAN (5X16)

93500-05016-0A

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

19

WASHER, PLAIN (6MM)

94101-06800

$1.49
