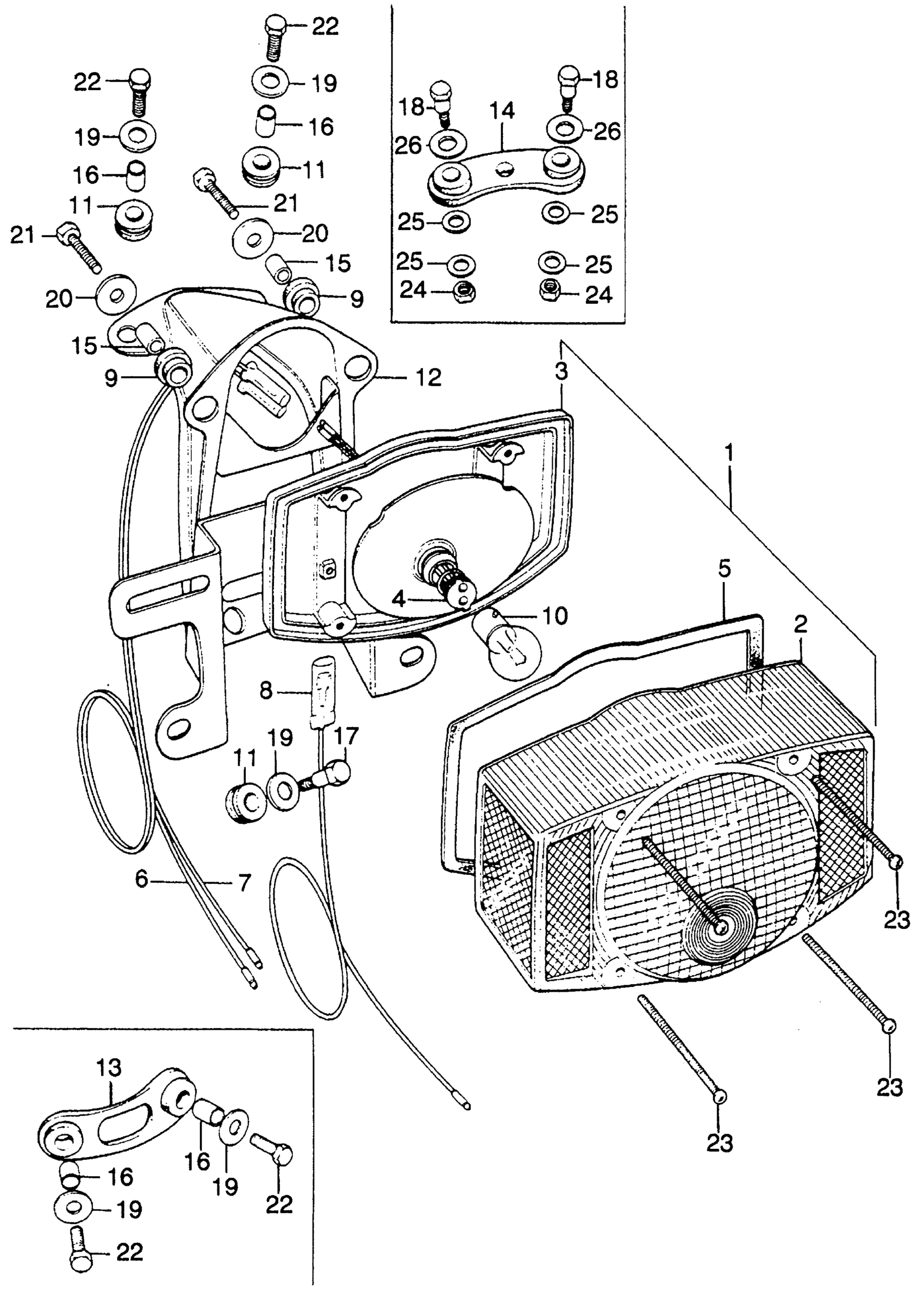

Honda CL175K6A MOTORCYCLE, JPN, VIN# CL175-7000001 TO CL175-7030148 TAILLLIGHT K6-K7 Diagram

#

Description
Price

1

TAILLIGHT UNIT (NOT AVAILABLE)

33701-342-671

Unavailable

2

LENS, TAILLIGHT

33702-341-671

Unavailable

3

BASE, TAILLIGHT (NOT AVAILABLE)

33703-342-671

Unavailable

4

WIRE, TAILLIGHT

33708-098-000

Unavailable

4

WIRE, TAILLIGHT This part replaces 33708-341-671.

33708-098-000

Unavailable

5

GASKET, TAILLIGHT LENS

33709-341-671

Unavailable

6

WIRE, STOP LIGHT (NOT AVAILABLE)

33710-342-670

Unavailable

7

WIRE, TAILLIGHT (NOT AVAILABLE)

33711-342-670

Unavailable

8

CABLE, TAILLIGHT GROUND (NOT AVAILABLE)

33712-342-670

Unavailable

9

GASKET B, TAILLIGHT BASE

33719-077-671

$1.59

10

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY)

34906-MG9-771

$4.15

10

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY) This part replaces 34906-341-671.

34906-MG9-771

$4.15

11

RUBBER, RR. FENDER CUSHION

80101-283-000

$4.91

12

BRACKET, NUMBER PLATE *NH1* (BLACK) (NOT AVAILABLE)

84701-341-670B

Unavailable

15

COLLAR, TAILLIGHT UNIT

84706-342-000

Unavailable

16

COLLAR, NUMBER BRACKET SET (NOT AVAILABLE)

84707-342-000

Unavailable

17

BOLT, TAILLIGHT SETTING

90162-283-000

$4.24

17

BOLT, TAILLIGHT SETTING This part replaces 90162-292-000.

90162-283-000

$4.24

19

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

20

WASHER (20MM)

90581-310-000

$1.90

20

WASHER (20MM) This part replaces 90581-342-000.

90581-310-000

$1.90

21

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

21

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

21

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

22

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

22

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

23

SCREW, PAN (4X55)

93500-04055-0B

$1.49

24

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM)

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

25

WASHER, PLAIN (6MM)

94101-06800

$1.49

26

WASHER, PLAIN (8MM)

94101-08000

$1.49
