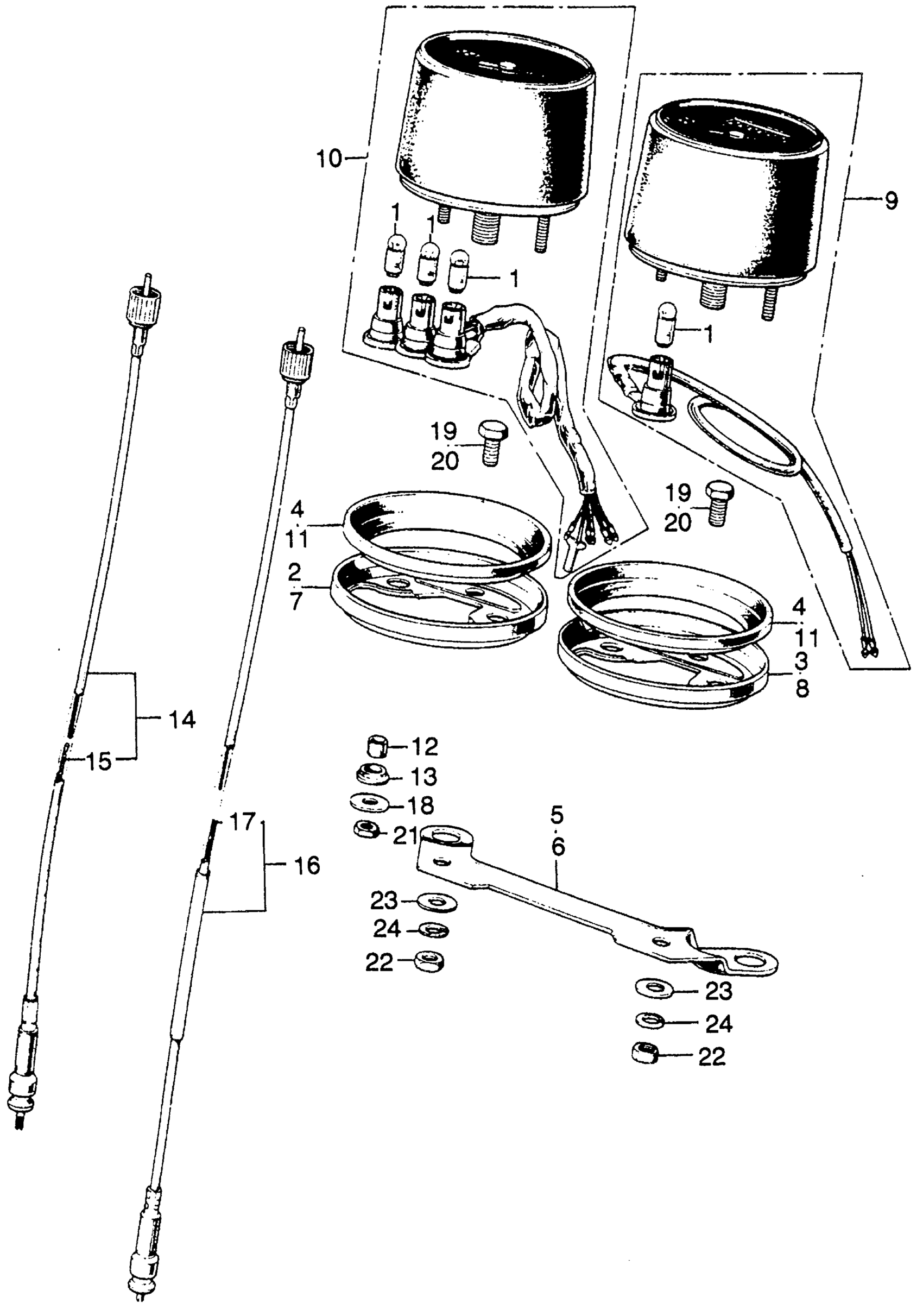

Honda CL175K6A MOTORCYCLE, JPN, VIN# CL175-7000001 TO CL175-7030148 SPEEDOMETER + TACHOMETER Diagram

#

Description
Price

1

BULB, DASH (12V3.4W) (IMASEN)

34902-259-000

$2.18

6

PLATE, METER SET (NOT AVAILABLE)

37211-307-670

Unavailable

7

RING, R. METER SET

37212-307-670

Unavailable

8

RING, L. METER SET

37213-307-670

Unavailable

9

SPEEDOMETER ASSY. (MILES) (NOT AVAILABLE)

37230-342-670

Unavailable

10

TACHOMETER ASSY. (NOT AVAILABLE)

37240-342-670

Unavailable

11

RUBBER, METER

37242-307-670

Unavailable

12

COLLAR, METER SETTING

37243-307-670

$2.44

13

RUBBER, METER SETTING

37244-307-670

$2.67

14

CABLE ASSY., TACHOMETER

37260-KB7-010

Unavailable

14

CABLE ASSY., TACHOMETER This part replaces 37260-MG1-000.

37260-KB7-010

Unavailable

14

CABLE ASSY., TACHOMETER This part replaces 37260-296-000.

37260-KB7-010

Unavailable

14

CABLE ASSY., TACHOMETER This part replaces 37260-362-000.

37260-KB7-010

Unavailable

14

CABLE ASSY., TACHOMETER This part replaces 37260-438-000.

37260-KB7-010

Unavailable

16

CABLE ASSY., SPEEDOMETER | Use from Frame SN 7030149 This part replaces 44830-307-000.

44830-389-770

Unavailable

16

CABLE ASSY., SPEEDOMETER

44830-389-770

Unavailable

16

CABLE ASSY., SPEEDOMETER | Use up to Frame SN 7030148 This part replaces 44830-343-670.

44830-389-770

Unavailable

16

CABLE ASSY., SPEEDOMETER | Use from Frame SN 7030149 This part replaces 44830-351-000.

44830-389-770

Unavailable

16

CABLE ASSY., SPEEDOMETER | Use from Frame SN 7030149 This part replaces 44830-362-000.

44830-389-770

Unavailable

16

CABLE ASSY., SPEEDOMETER | Use from Frame SN 7030149 This part replaces 44831-307-000.

44830-389-770

Unavailable

18

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

20

BOLT, HEX. (8X16) (NOT AVAILABLE) This part replaces 95100-08016.

95300-08016-00

Unavailable

20

BOLT, HEX. (8X16) (NOT AVAILABLE) This part replaces 95100-08016-00.

95300-08016-00

Unavailable

20

BOLT, HEX. (8X16) (NOT AVAILABLE) This part replaces 95300-08016.

95300-08016-00

Unavailable

20

BOLT, HEX. (8X16) (NOT AVAILABLE)

95300-08016-00

Unavailable

21

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM)

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

22

NUT, HEX. (8MM)

94001-08000-0S

$1.49

23

WASHER, PLAIN (8MM)

94101-08000

$1.49

24

WASHER, SPRING (8MM)

94111-08000

$1.49
