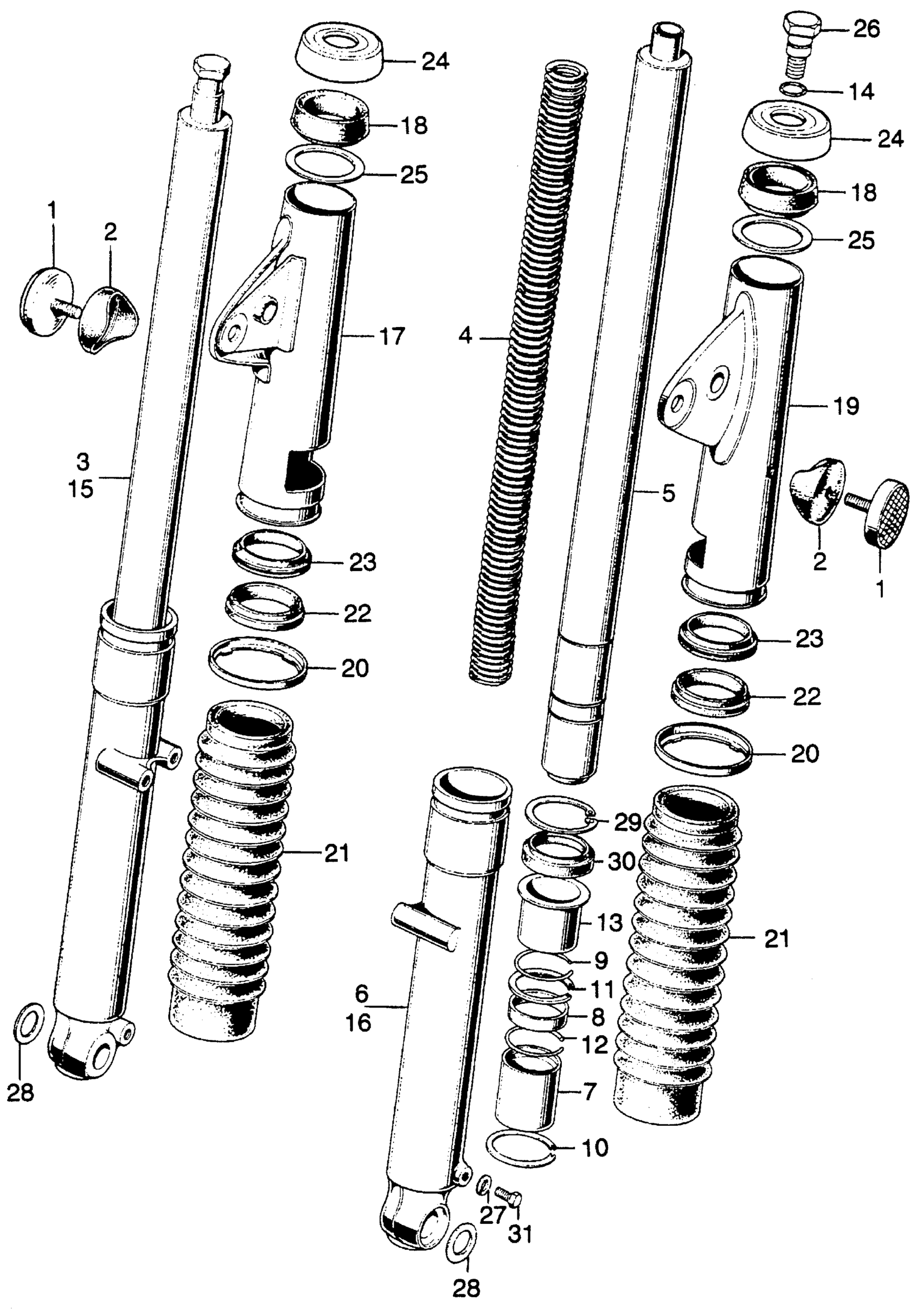

Honda CL175K6A MOTORCYCLE, JPN, VIN# CL175-7000001 TO CL175-7030148 CL175 FRONT FORK K4-K6 Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX This part replaces 33741-340-670.

33741-102-870

$35.84

2

BASE, FR. REFLEX REFLECTOR (NOT AVAILABLE)

33743-342-670

Unavailable

3

FORK ASSY., R. FR. (NOT AVAILABLE)

51400-343-670

Unavailable

4

SPRING, FR. FORK (NOT AVAILABLE)

51401-216-000

Unavailable

5

PIPE, FR. FORK (NOT AVAILABLE)

51410-336-000

Unavailable

6

CASE, R. FR. FORK (LOWER)

51420-337-000

Unavailable

7

PISTON, FR. FORK (NOT AVAILABLE)

94603-31200

Unavailable

8

VALVE, FR. DAMPER (NOT AVAILABLE)

51443-222-000

Unavailable

9

RING A, SNAP (31MM)

94570-31000

Unavailable

10

RING B, SNAP (31MM)

94580-31000

Unavailable

11

RING, FORK VALVE STOPPER (NOT AVAILABLE)

51446-222-000

Unavailable

12

RING A, SNAP (31MM)

94570-31000

Unavailable

13

GUIDE, FR. FORK PIPE (NOT AVAILABLE)

51451-342-000

Unavailable

14

O-RING (8.4X2.4)

94608-10000

$1.49

15

FORK ASSY., L. FR.

51500-343-670

Unavailable

16

CASE, L. FR. FORK (LOWER)

51520-337-000

Unavailable

17

COVER, R. FR. FORK (UPPER) *MRCR2* (CHROME PLATING)

51602-343-670XW

Unavailable

18

SHOCK ABSORBER, FR. COVER (UPPER) (NOT AVAILABLE)

51603-315-000

Unavailable

19

COVER, L. FR. FORK (UPPER) *MRCR2* (CHROME PLATING)

51606-343-670XW

Unavailable

20

RIB, FR. FORK (NOT AVAILABLE)

51608-247-000

Unavailable

21

BOOT, FR. FORK (NOT AVAILABLE)

51611-316-670

Unavailable

22

DUST SEAL, FR. FORK (NOT AVAILABLE)

51621-247-000

Unavailable

23

FORK, FR. FORK COVER (LOWER) (NOT AVAILABLE)

51622-223-000

Unavailable

24

CAP, FR. FORK COVER (UPPER) (NOT AVAILABLE)

51623-235-670

Unavailable

25

WASHER, COVER (UPPER/LOWER) (NOT AVAILABLE)

51624-315-000

Unavailable

26

BOLT, FORK A

94605-10101

$5.21

27

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

28

WASHER (15.2X25)

90557-230-000

$2.39

29

CIRCLIP (INNER) (41MM) (NOT AVAILABLE)

94536-41120

Unavailable

30

OIL SEAL, FR. FORK This part replaces 91255-315-003.

91255-464-003

$11.16

30

OIL SEAL, FR. FORK

91255-464-003

$11.16

31

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

31

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

31

BOLT, HEX. (6X8)

92101-06008-0A

$1.49
