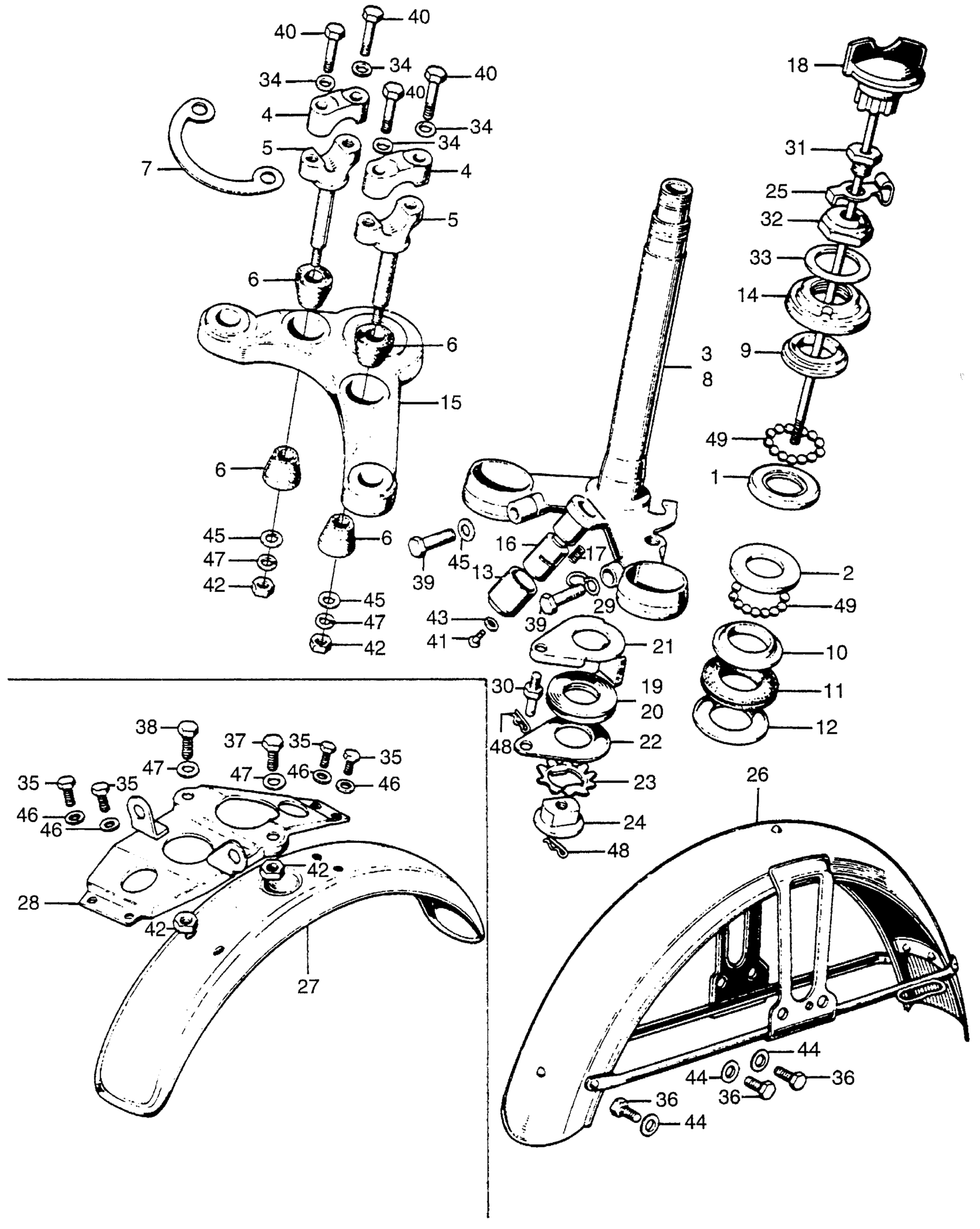

Honda CL175K3A MOTORCYCLE, JPN, VIN# CL175-4000001 CB/CL175STEERING STEM + FRONT FENDER Diagram

#

Description
Price

1

RACE, STEERING TOP BALL This part replaces 50301-200-315.

50301-268-010

$22.12

1

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$22.12

1

RACE, STEERING BALL (UPPER)

50301-268-010

$22.12

1

RACE, STEERING TOP BALL This part replaces 50301-268-305.

50301-268-010

$22.12

1

RACE, STEERING TOP BALL This part replaces 50302-200-000.

50301-268-010

$22.12

1

RACE, STEERING TOP BALL This part replaces 50302-200-305.

50301-268-010

$22.12

2

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$22.12

2

RACE, STEERING BALL (UPPER)

50301-268-010

$22.12

2

RACE, STEERING TOP BALL This part replaces 50301-268-305.

50301-268-010

$22.12

2

RACE, STEERING TOP BALL This part replaces 50302-200-305.

50301-268-010

$22.12

4

HOLDER B1, HANDLEBAR (UPPER) This part replaces 53131-283-000.

95014-22100

$12.13

4

HOLDER B1, HANDLEBAR (UPPER)

95014-22100

$12.13

5

HOLDER, HANDLEBAR (LOWER) (NOT AVAILABLE)

53132-303-000

$27.84

6

RUBBER, HANDLEBAR CUSHION

53133-303-000

$6.04

7

HOLDER, CABLE (NOT AVAILABLE)

53139-286-000

Unavailable

8

STEM, STEERING *NH1* (BLACK)

53020-307-010B

Unavailable

8

STEM, STEERING *NH1* (BLACK) This part replaces 53200-307-010B.

53020-307-010B

Unavailable

9

RACE, STEERING CONE (UPPER) (NOT AVAILABLE)

53211-200-305

Unavailable

10

RACE, STEERING CONE (LOWER)

53212-200-305

$19.80

11

DUST SEAL, STEERING HEAD

53214-200-000

$2.92

12

WASHER, STEERING HEAD DUST SEAL

53215-200-000

$1.77

13

COVER, HANDLEBAR LOCK CASE (NOT AVAILABLE)

53215-230-000

Unavailable

14

THREAD, STEERING HEAD TOP

53220-303-000

Unavailable

15

BRIDGE, FORK TOP

53230-307-000

Unavailable

16

LOCK, HANDLEBAR

35010-230-010

Unavailable

16

LOCK, HANDLEBAR This part replaces 53600-230-000.

35010-230-010

Unavailable

17

SPRING, HANDLEBAR LOCK (NOT AVAILABLE)

53631-268-020

Unavailable

18

KNOB, STEERING DAMPER (NOT AVAILABLE)

53740-236-010

Unavailable

20

DISK, STEERING DAMPER FRICTION (NOT AVAILABLE)

53750-307-000

Unavailable

21

PLATE A, STEERING DAMPER (NOT AVAILABLE)

53761-216-000

$4.52

22

PLATE B, STEERING DAMPER (NOT AVAILABLE)

53762-216-000

Unavailable

23

SPRING, STEERING DAMPER (NOT AVAILABLE)

53763-216-000

Unavailable

24

NUT, STEERING DAMPER SPRING (NOT AVAILABLE)

53764-283-000

Unavailable

25

SPRING, STEERING DAMPER LOCK (NOT AVAILABLE)

53765-283-000

Unavailable

27

FENDER, FR. (NOT AVAILABLE)

61100-307-670Z

Unavailable

28

STAY, FR. FENDER (NOT AVAILABLE)

61105-307-000Z

Unavailable

29

CLIP, CABLE

73265-307-000

Unavailable

30

BOLT, FRICTION DISK ANCHOR (NOT AVAILABLE)

90118-268-000

Unavailable

31

BOLT, DAMPER LOCK SPRING MOUNT (NOT AVAILABLE)

90131-268-010

Unavailable

32

NUT, STEERING STEM (NOT AVAILABLE)

90304-236-000

Unavailable

33

WASHER, STEERING STEM (NOT AVAILABLE)

90503-222-000

Unavailable

34

WASHER, PLAIN (8MM)

90518-921-000

$1.49

35

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

35

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

36

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

36

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

36

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

36

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

36

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

36

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

37

BOLT, HEX. (8X14) This part replaces 92000-08014-0A.

92101-08014-0A

$1.61

37

BOLT, HEX. (8X14)

92101-08014-0A

$1.61

38

BOLT, HEX. (8X25) This part replaces 92000-08025-0A.

92101-08025-0A

$1.74

38

BOLT, HEX. (8X25)

92101-08025-0A

$1.74

39

BOLT, HEX. (8X43)

92000-08043-0A

Unavailable

40

BOLT, FLANGE (8X36)

90111-362-000

$4.80

40

BOLT, FLANGE (8X36) This part replaces 93000-08036-0B.

90111-362-000

$4.80

41

SCREW, PAN (3X8)

93500-03008-0A

$1.49

42

NUT, HEX. (8MM)

94001-08000-0S

$1.49

43

WASHER, PLAIN (3MM)

94101-03000

$1.49

44

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

44

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

44

WASHER, PLAIN (6MM)

94101-06800

$1.49

45

WASHER, PLAIN (8MM)

94101-08000

$1.49

46

WASHER, SPRING (6MM)

94111-06000

$1.49

47

WASHER, SPRING (8MM)

94111-08000

$1.49

48

PIN, LOCK (6MM)

94251-06000

$1.49

49

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
