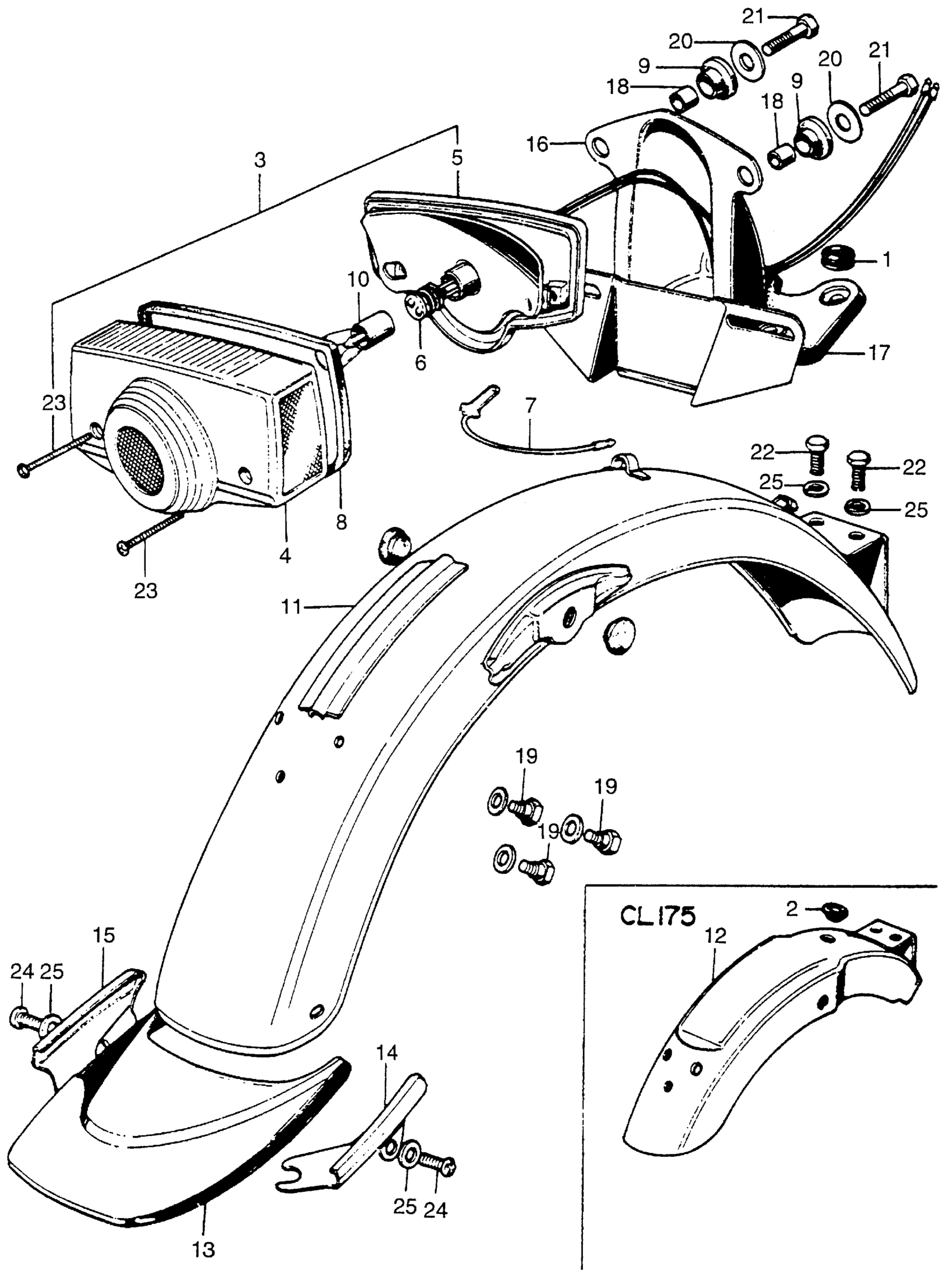

Honda CL175K3A MOTORCYCLE, JPN, VIN# CL175-4000001 CB/CL175REAR FENDER + TAILLIGHT Diagram

#

Description
Price

1

GROMMET A, AIR CLEANER HOUSING

17247-240-000

$2.92

2

GROMMET, WIRE HARNESS | Use from Frame SN 4004185

32983-011-000

$3.31

3

TAILLIGHT ASSY. (NOT AVAILABLE)

33701-307-670

Unavailable

4

LENS, TAILLIGHT

33702-077-671

$36.90

5

BASE, TAILLIGHT

33703-077-671

Unavailable

6

WIRE, TAILLIGHT

33707-303-000

Unavailable

7

CABLE, TAILLIGHT GROUND

33708-303-000

Unavailable

8

GASKET, TAILLIGHT

33709-077-671

$3.41

9

GASKET B, TAILLIGHT BASE

33719-077-671

$1.59

10

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 33551-568-610.

34906-313-671

$6.67

10

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 34901-504-003.

34906-313-671

$6.67

10

BULB, STOP & TAILLIGHT (12V23/7W)

34906-268-600

Unavailable

10

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 34906-268-810.

34906-313-671

$6.67

10

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY)

34906-313-671

$6.67

12

FENDER, RR. (NOT AVAILABLE)

80100-307-000Z

Unavailable

16

BRACKET, NUMBER PLATE (NOT AVAILABLE) This part replaces 84701-235-000B.

84701-235-670Z

Unavailable

16

BRACKET, NUMBER PLATE (NOT AVAILABLE)

84701-235-670Z

Unavailable

17

SEAT, NUMBER PLATE BRACKET (NOT AVAILABLE)

84702-307-000

Unavailable

18

COLLAR, NUMBER BRACKET SETTING

84706-286-000

$2.99

19

BOLT, TAILLIGHT SETTING

90162-283-000

$4.24

20

WASHER (18MM)

90581-831-650

$1.87

21

BOLT, HEX. (5X20) This part replaces 92000-05020-0B.

92101-05020-0B

Unavailable

22

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

22

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

22

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

23

SCREW, PAN (4X50)

93500-04050-0A

$1.49

24

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

24

SCREW, PAN (6X12)

93500-06012-0A

$1.49

24

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

25

WASHER, PLAIN (6MM)

94101-06800

$1.49
