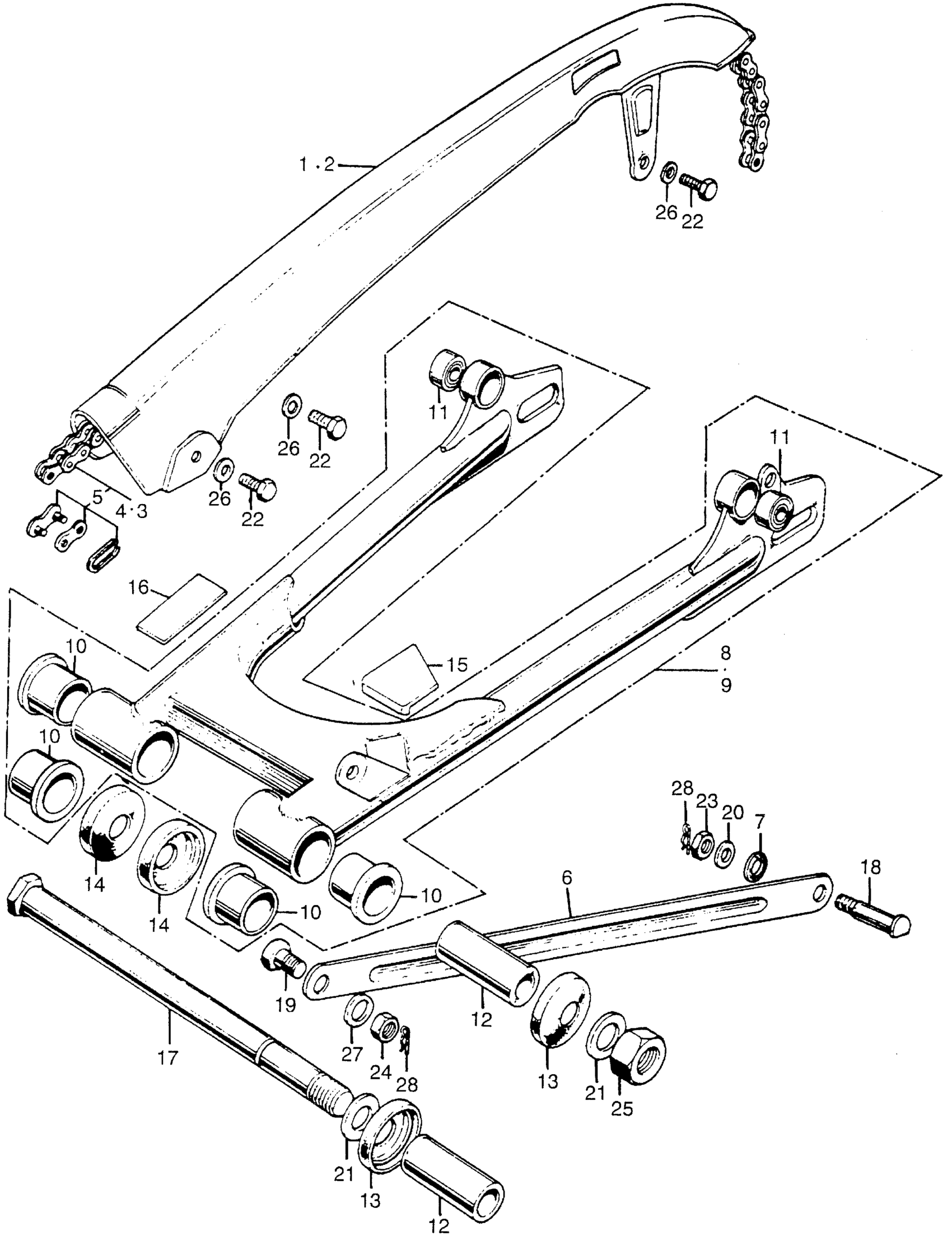

Honda CL175K3A MOTORCYCLE, JPN, VIN# CL175-4000001 CB/CL175CHAIN CASE + SWINGARM Diagram

#

Description
Price

2

CASE, DRIVE CHAIN *NH1* (BLACK) (NOT AVAILABLE)

40510-307-010B

Unavailable

3

CHAIN, DRIVE This part replaces 40530-240-000.

40530-222-000

Unavailable

5

MASTER LINK

40531-205-013

Unavailable

5

MASTER LINK This part replaces 40531-216-003.

40531-205-013

Unavailable

6

ARM, RR. BRAKE STOPPER (NOT AVAILABLE)

43431-304-000

Unavailable

7

RUBBER, STOPPER ARM CUSHION (NOT AVAILABLE)

43434-240-000

Unavailable

9

SWINGARM *NH1* (BLACK)

52100-307-010B

Unavailable

10

BUSHING, SWINGARM PIVOT (NOT AVAILABLE)

52108-240-300

Unavailable

11

BUSH, RR. SWINGARM RUBBER (LOWER) (NOT AVAILABLE)

52109-222-810

Unavailable

12

COLLAR, RR. SWINGARM (NOT AVAILABLE)

52121-354-000

Unavailable

12

COLLAR, RR. SWINGARM (NOT AVAILABLE) This part replaces 52141-240-000.

52121-354-000

Unavailable

13

CAP, DUST SEAL (NOK) This part replaces 52144-329-000.

52144-356-005

$17.31

13

CAP, DUST SEAL (NOK)

52144-356-005

$17.31

14

RUBBER, SWINGARM DUST SEAL CAP

52145-329-000

$7.36

15

SLIDER, CHAIN

52155-307-000

Unavailable

16

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

17

BOLT, SWINGARM PIVOT (NOT AVAILABLE)

90121-303-000

Unavailable

18

BOLT, RR. BRAKE PANEL STOPPER (NOT AVAILABLE)

90127-240-010

Unavailable

19

BOLT, RR. BRAKE STOPPER ARM (NOT AVAILABLE)

90133-303-000

Unavailable

20

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

21

WASHER (14X26) This part replaces 90526-216-000.

90527-634-670

Unavailable

21

WASHER (14X26)

90527-634-670

Unavailable

22

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

22

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

22

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

23

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM)

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

24

NUT, HEX. (8MM)

94001-08000-0S

$1.49

25

NUT, HEX. (14MM)

94001-14020-0S

Unavailable

26

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

26

WASHER, PLAIN (6MM)

94101-06800

$1.49

27

WASHER, PLAIN (8MM)

94101-08000

$1.49

28

PIN, LOCK (6MM)

94251-06000

$1.49
