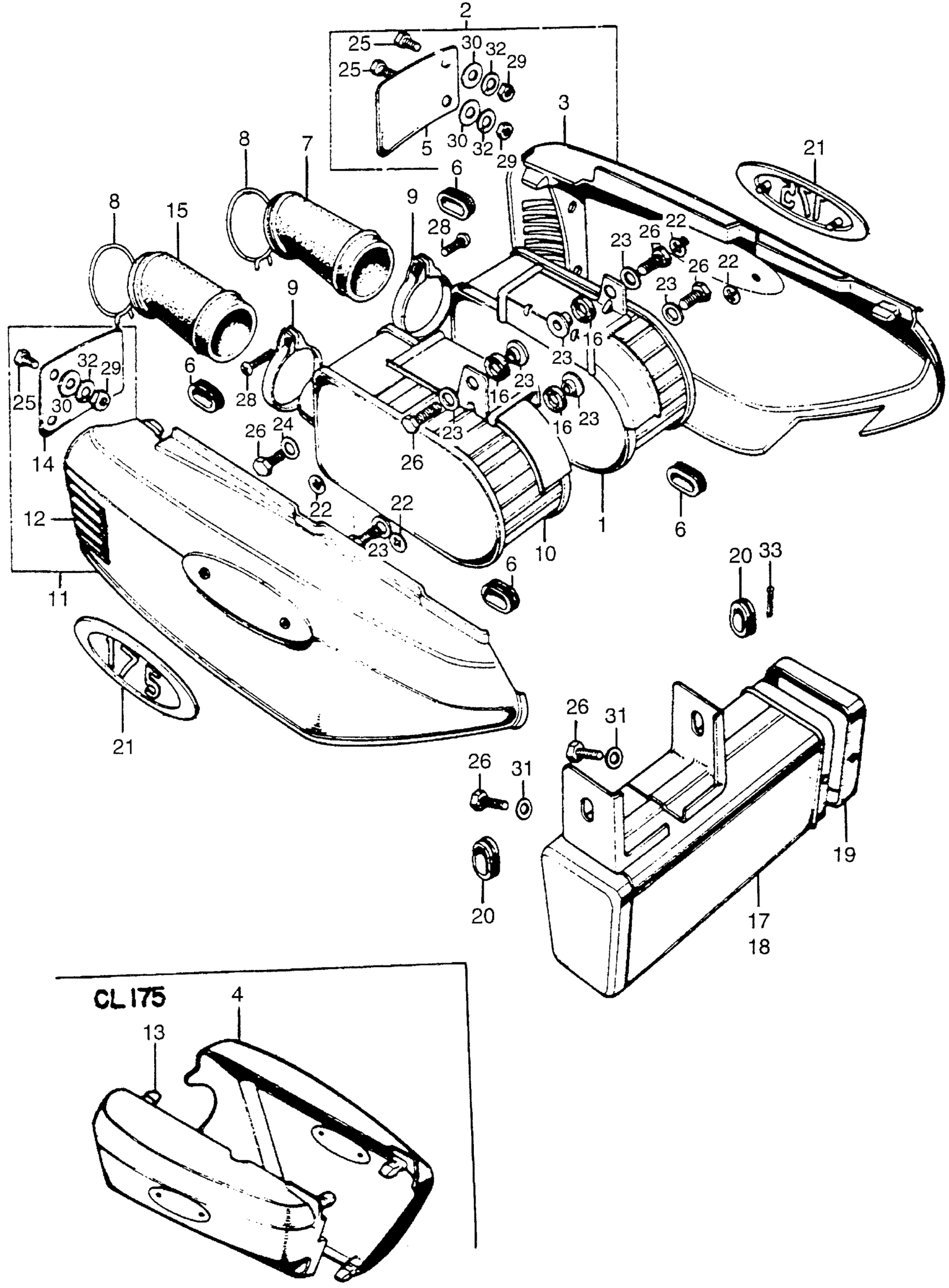

Honda CL175K3A MOTORCYCLE, JPN, VIN# CL175-4000001 CB/CL175AIR CLEANER + TOOL BOX Diagram

#

Description
Price

1

AIR CLEANER, R. | Use from Frame SN 4006451

17210-307-040

Unavailable

4

COVER, R. AIR CLEANER *R2C* (CANDY ORANGE)

17231-307-020XH

Unavailable

4

COVER, R. AIR CLEANER *PB1C* (CANDY BLUE) (NOT AVAILABLE)

17231-307-020XK

Unavailable

6

GROMMET A, AIR CLEANER HOUSING

17247-303-000

$8.13

7

TUBE, R. AIR CLEANER CONNECTING (NOT AVAILABLE)

17253-307-020

Unavailable

8

BAND A, AIR CLEANER IN. PIPE

17231-051-000

$4.63

8

BAND A, AIR CLEANER IN. PIPE This part replaces 17255-028-000.

17231-051-000

$4.63

9

BAND, AIR CLEANER CONNECTING TUBE (42) This part replaces 17255-246-000.

95018-42250

$7.72

9

BAND, AIR CLEANER CONNECTING TUBE (42) This part replaces 90652-GHB-640.

95018-42250

$7.72

9

BAND, AIR CLEANER CONNECTING TUBE (42)

95018-42250

$7.72

10

AIR CLEANER, L. (NOT AVAILABLE) | Use from Frame SN 4006451

17310-307-040

Unavailable

13

COVER, L. AIR CLEANER *R2C* (CANDY ORANGE)

17331-307-020XH

Unavailable

15

TUBE, L. AIR CLEANER CONNECTING (NOT AVAILABLE)

17353-307-020

Unavailable

16

RUBBER, STOPPER ARM CUSHION (NOT AVAILABLE) | Use from Frame SN 4006451

43434-240-000

Unavailable

18

BOX, TOOL *NH1* (BLACK)

83500-307-020B

Unavailable

19

CAP, TOOL BOX *NH1* (BLACK)

83541-286-000B

Unavailable

20

GROMMET, AIR CLEANER HOUSING

83551-240-300

$3.24

21

EMBLEM, AIR CLEANER HOUSING *PB2C* (CANDY BLUE GREEN) (NOT AVAILABLE)

87125-249-670AZ

Unavailable

21

EMBLEM, AIR CLEANER HOUSING *R2C* (CANDY ORANGE) (NOT AVAILABLE)

87125-249-670XH

Unavailable

21

EMBLEM, AIR CLEANER HOUSING *PB1C* (CANDY BLUE) (NOT AVAILABLE)

87125-249-670XK

Unavailable

22

NUT, SPEED (3MM) This part replaces 90313-512-000.

90313-567-000

$3.97

22

NUT, SPEED (3MM)

90313-567-000

$3.97

23

WASHER, NUMBER BRACKET CUSHION (NOT AVAILABLE) | Use from Frame SN 4006451

90563-307-000

Unavailable

24

WASHER (18MM)

90581-831-650

$1.87

26

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

26

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

26

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

26

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

26

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

26

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

26

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

26

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

26

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

28

SCREW, PAN (5X16)

93500-05016-0A

$1.49

33

PIN, COTTER (2.0X35)

94201-20350

$1.49
