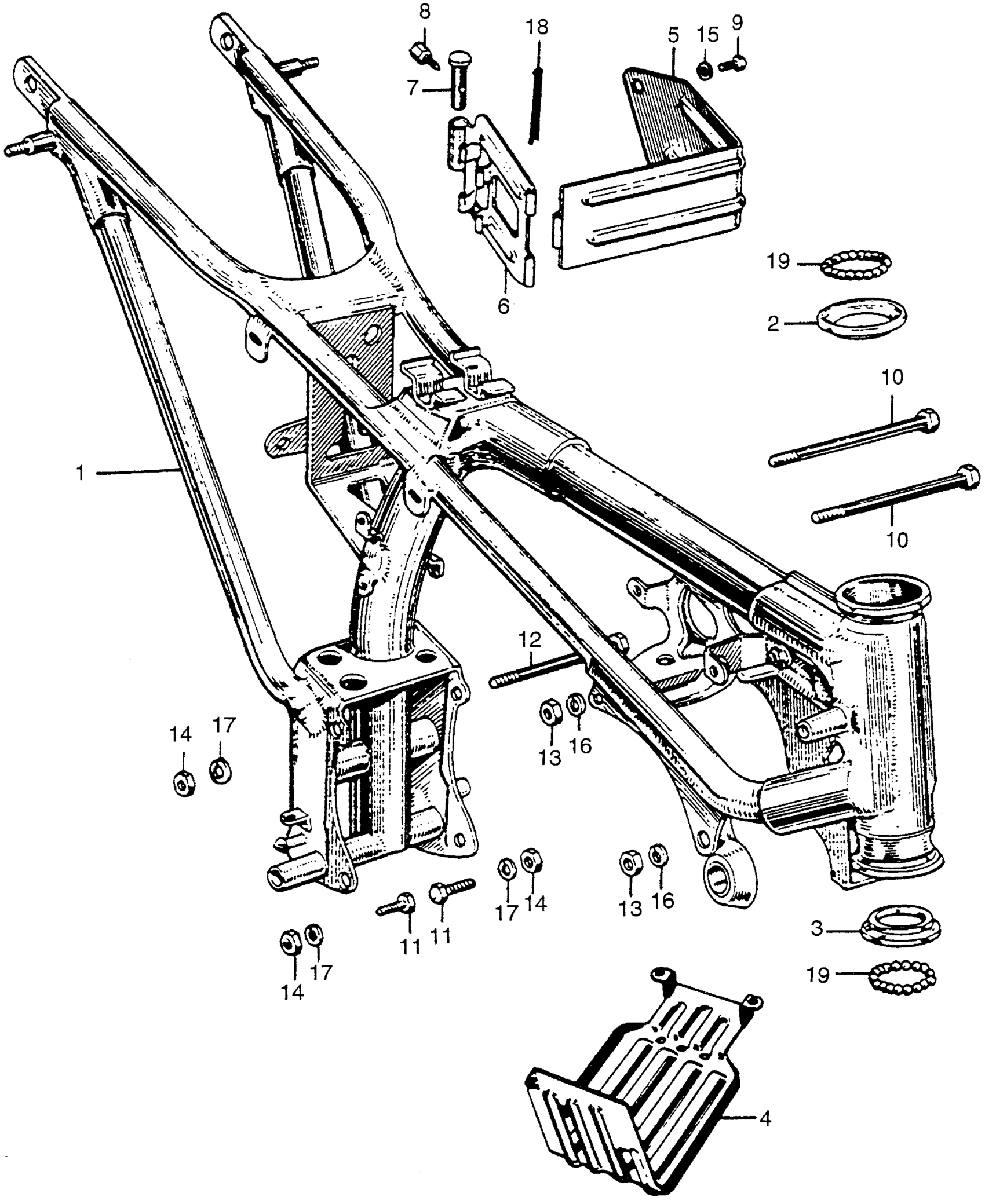

Honda CL175A MOTORCYCLE, JPN, VIN# CL175-1000001 CL175 FRAME Diagram

#

Description
Price

1

FRAME

50100-235-000Z

Unavailable

2

RACE, STEERING TOP BALL This part replaces 50301-200-315.

50301-268-010

$19.29

2

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$19.29

2

RACE, STEERING BALL (UPPER)

50301-268-010

$19.29

2

RACE, STEERING TOP BALL This part replaces 50301-268-305.

50301-268-010

$19.29

2

RACE, STEERING TOP BALL This part replaces 50302-200-000.

50301-268-010

$19.29

2

RACE, STEERING TOP BALL This part replaces 50302-200-305.

50301-268-010

$19.29

3

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$19.29

3

RACE, STEERING BALL (UPPER)

50301-268-010

$19.29

3

RACE, STEERING TOP BALL This part replaces 50301-268-305.

50301-268-010

$19.29

3

RACE, STEERING TOP BALL This part replaces 50302-200-305.

50301-268-010

$19.29

4

PLATE, SKID (NOT AVAILABLE)

50351-236-000

Unavailable

5

BAND A, BATTERY (NOT AVAILABLE)

83631-223-000

Unavailable

6

BAND B, BATTERY (NOT AVAILABLE)

83632-223-000

Unavailable

7

PIN, BATTERY BAND (NOT AVAILABLE) | Use up to Frame SN 1017755

83635-216-000

Unavailable

7

PIN, BATTERY BAND (NOT AVAILABLE) | Use from Frame SN 1017756

83635-246-000

Unavailable

8

BOLT, BATTERY BAND SETTING (NOT AVAILABLE) | Use up to Frame SN 1017755

90115-216-000

Unavailable

8

BOLT, BATTERY BAND SETTING (NOT AVAILABLE) | Use from Frame SN 1017756

90115-246-000

Unavailable

9

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.29

9

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.29

9

BOLT, HEX. (6X12)

92101-06012-0A

$1.29

10

| Use up to Frame SN 1017755 This part replaces 92000-08100.

92101-08100-0A

Unavailable

10

This part replaces 92000-08100-0A.

92101-08100-0A

Unavailable

11

BOLT, HEX. (10X40) | Use up to Frame SN 1017755 This part replaces 92000-10040.

92101-10040-0A

$2.58

11

BOLT, HEX. (10X40) This part replaces 92000-10040-0A.

92101-10040-0A

$2.58

11

BOLT, HEX. (10X40)

92101-10040-0A

$2.58

12

BOLT, HEX. (10X125) (SOURCE: VINTAGE PARTS INC.) | Use up to Frame SN 1017755 This part replaces 92000-10125.

92000-10125-0A

Unavailable

12

BOLT, HEX. (10X125) (SOURCE: VINTAGE PARTS INC.)

92000-10125-0A

Unavailable

13

NUT, HEX. (8MM) | Use up to Frame SN 1017755 This part replaces 94001-08000.

94030-08000

Unavailable

13

NUT, HEX. (8MM) | Use from Frame SN 1017756

94001-08000-0S

$1.19

13

NUT, HEX. (8MM) | Use up to Frame SN 1017755

94030-08000

Unavailable

13

NUT, HEX. (8MM) | Use up to Frame SN 1017755 This part replaces 94030-08200.

94030-08000

Unavailable

14

NUT, HEX. (10MM) | Use up to Frame SN 1017755 This part replaces 94001-10000.

94030-10000

$1.29

14

NUT, HEX. (10MM) | Use from Frame SN 1097756 This part replaces 94001-10000.

94030-10000

$1.29

14

NUT, HEX. (10MM) | Use up to Frame SN 1017755

94030-10000

$1.29

14

NUT, HEX. (10MM) | Use from Frame SN 1097756

94030-10000

$1.29

14

NUT, HEX. (10MM) | Use up to Frame SN 1017755 This part replaces 94030-10000-0S.

94030-10000

$1.29

14

NUT, HEX. (10MM) | Use from Frame SN 1097756 This part replaces 94030-10000-0S.

94030-10000

$1.29

15

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$0.59

15

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$0.59

15

WASHER, PLAIN (6MM)

94101-06800

$0.59

16

WASHER, SPRING (8MM)

94111-08000

$0.90

17

WASHER, SPRING (8MM)

94111-10000

$1.22

18

PIN, COTTER (4.0X65) (NOT AVAILABLE)

94201-40650

Unavailable

19

BALL, STEEL (#8) (1/4)

96211-08000

$1.13
