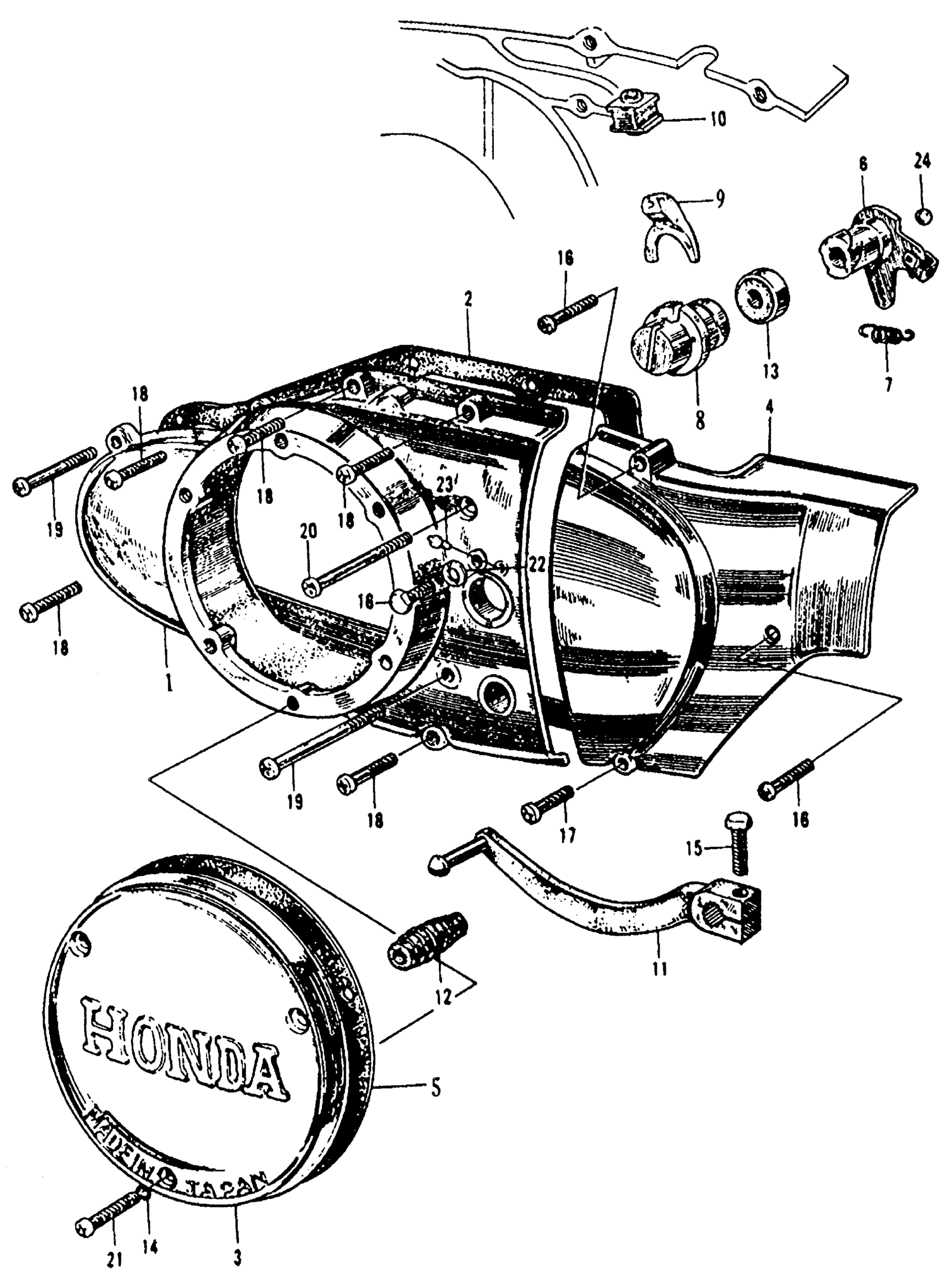

Honda CL160A MOTORCYCLE, JPN, VIN# CL160-1000001 CLUTCH ADJUSTER + LEFT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, L. CRANKCASE (NOT AVAILABLE)

11340-216-010

Unavailable

2

GASKET, L. CRANKCASE COVER (NOT AVAILABLE)

11395-216-000

Unavailable

3

COVER, ALTERNATOR (NOT AVAILABLE)

11431-216-000

Unavailable

4

COVER A, DRIVE CHAIN (NOT AVAILABLE)

11661-216-000

Unavailable

5

GASKET, DYNAMO COVER This part replaces 11691-216-000.

11691-354-306

Unavailable

5

GASKET, DYNAMO COVER This part replaces 11691-354-000.

11691-354-306

Unavailable

6

THREAD, CLUTCH LIFTER (NOT AVAILABLE) | Use from Engine SN 1045781

22810-216-030

Unavailable

7

SPRING, CLUTCH LEVER (NOT AVAILABLE)

22815-216-010

Unavailable

8

ADJUSTER, CLUTCH | Use from Engine SN 1045781 This part replaces 22841-216-010.

22841-216-030

Unavailable

8

ADJUSTER, CLUTCH (NOT AVAILABLE) | Use from Engine SN 1045781

22841-216-030

Unavailable

9

PIECE, ADJUSTER FIXING This part replaces 22844-200-000.

22844-200-010

Unavailable

9

PIECE, ADJUSTER FIXING

22844-200-010

Unavailable

10

JOINT, CLUTCH CABLE (NOT AVAILABLE)

22875-216-000

Unavailable

11

PEDAL, GEARSHIFT (NOT AVAILABLE)

24700-223-000

Unavailable

12

RUBBER, CHANGE PEDAL This part replaces 24781-205-000.

95011-40000

$1.49

12

RUBBER, CHANGE PEDAL This part replaces 24781-268-000.

95011-40000

$1.49

12

RUBBER, CHANGE PEDAL

95011-40000

$1.49

13

OIL SEAL (22X26X29X8) This part replaces 91205-200-000.

91205-200-005

Unavailable

13

OIL SEAL (22X26X29X8) (NOT AVAILABLE)

91205-200-005

Unavailable

14

O-RING (5.5X1.5)

91301-216-000

$2.38

15

BOLT, HEX. (6X25) This part replaces 92000-06024.

92101-06025-0A

$1.62

15

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

15

BOLT, HEX. (6X25) This part replaces 92000-06025-0A.

92101-06025-0A

$1.62

15

BOLT, HEX. (6X25)

92000-06025-00

Unavailable

15

BOLT, HEX. (6X25) This part replaces 92100-06025.

92101-06025-0A

$1.62

15

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

16

BOLT, HEX. (6X35) This part replaces 92000-06035.

92101-06035-0A

$1.77

16

BOLT, HEX. (6X35) This part replaces 92000-06035-0A.

92101-06035-0A

$1.77

16

BOLT, HEX. (6X35)

92101-06035-0A

$1.77

17

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

17

SCREW, PAN (6X20)

93500-06020-0A

$1.49

18

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

18

SCREW, PAN (6X25)

93500-06025-0A

$1.49

19

SCREW, PAN (6X32) This part replaces 93500-06032.

93500-06032-0A

$1.49

19

SCREW, PAN (6X32)

93500-06032-0A

$1.49

20

SCREW, PAN (6X40) This part replaces 93500-06038.

93500-06040-0A

$1.49

20

SCREW, PAN (6X40) This part replaces 93500-06038-0A.

93500-06040-0A

$1.49

20

SCREW, PAN (6X40)

93500-06040-0A

$1.49

21

SCREW, OVAL (6X18) This part replaces 93700-06018.

93700-06018-0A

Unavailable

22

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

22

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

22

WASHER, PLAIN (6MM)

94101-06800

$1.49

23

FITTING, GREASE (A.45) This part replaces 96201-30000.

96201-30001

$1.49

23

FITTING, GREASE (A.45)

96201-30001

$1.49

24

BALL, STEEL (#10) (5/16)

96211-10000

$1.49
