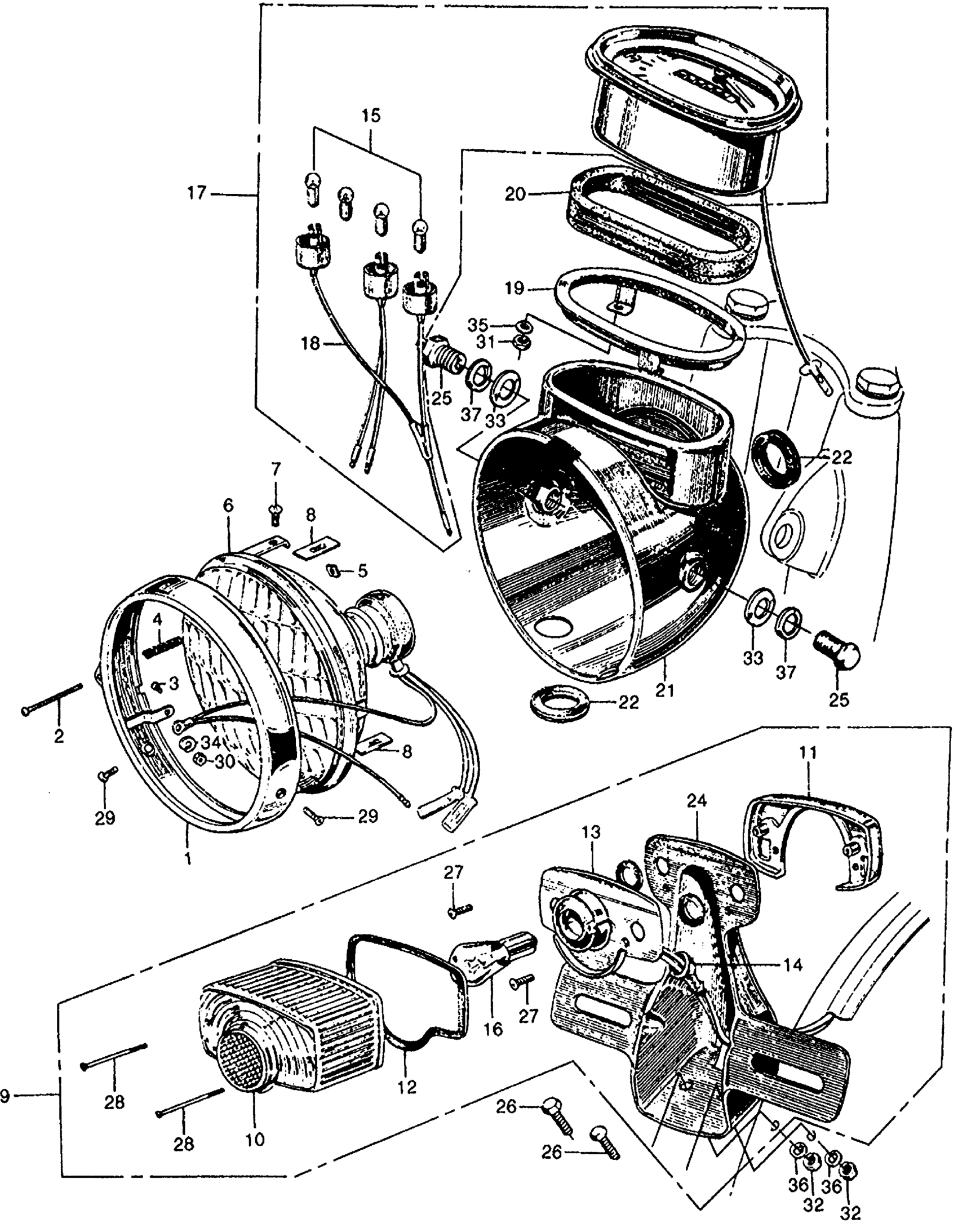

Honda CL160A MOTORCYCLE, JPN, VIN# CL160-1000001 CL160 HEADLIGHT + TAILLIGHT Diagram

#

Description
Price

NI

SHEET, NUMBER PLATE BRACKET (NOT AVAILABLE)

80134-223-000

Unavailable

1

RIM, HEADLIGHT (NOT AVAILABLE)

33101-216-670

Unavailable

2

SCREW, HEADLIGHT BEAM ADJ. (STANLEY) (NOT AVAILABLE)

33102-001-003

Unavailable

3

SCREW (3MM) (NOT AVAILABLE) This part replaces 33102-200-000.

33102-200-003

Unavailable

3

SCREW (3MM) (NOT AVAILABLE)

33102-200-003

Unavailable

4

SPRING, HEADLIGHT SETTING

33107-030-003

$2.54

5

NUT, HEADLIGHT BEAM ADJ. (NOT AVAILABLE)

33117-001-003

Unavailable

6

BULB, HEADLIGHT (12V-35/30W) (NOT AVAILABLE)

33120-216-670

Unavailable

7

SCREW, HEADLIGHT (NOT AVAILABLE)

33125-200-030

Unavailable

8

NUT, UNIT HOLDER This part replaces 33128-200-030.

33128-292-670

$2.94

8

NUT, UNIT HOLDER

33128-292-670

$2.94

9

TAILLIGHT ASSY. (12V-25/8W) (NOT AVAILABLE)

33700-223-000

Unavailable

10

LENS, TAILLIGHT (NOT AVAILABLE)

33701-268-680

Unavailable

11

PLATE, TAILLIGHT LENS HOLDER (NOT AVAILABLE)

33705-268-670

Unavailable

12

GASKET, TAILLIGHT LENS (NOT AVAILABLE)

33709-268-810

Unavailable

13

SOCKET, TAILLIGHT (NOT AVAILABLE) | Use up to Frame SN 1021550

33710-216-000

Unavailable

14

COVER, TERMINAL (NOT AVAILABLE)

33749-268-670

Unavailable

15

BULB, DASH (12V 3.4W) (STANLEY)

34902-259-000

$2.18

16

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 33551-568-610.

34906-313-671

$6.67

16

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 34901-504-003.

34906-313-671

$6.67

16

BULB (12V 23/8W) (STANLEY)

34905-425-671

$6.67

16

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 34906-268-810.

34906-313-671

$6.67

16

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY)

34906-313-671

$6.67

17

SPEEDOMETER (NOT AVAILABLE)

37200-223-000

Unavailable

18

SOCKET, PILOT BULB (NOT AVAILABLE)

37201-216-000

Unavailable

19

FRAME, SPEEDOMETER (NOT AVAILABLE)

37241-216-000

Unavailable

20

GASKET, SPEEDOMETER (NOT AVAILABLE) This part replaces 37242-222-000.

37242-283-000

Unavailable

20

GASKET, SPEEDOMETER (NOT AVAILABLE)

37242-283-000

Unavailable

21

CASE, HEADLIGHT (NOT AVAILABLE)

61301-216-821Z

Unavailable

22

GROMMET A, HEADLIGHT CASE (NOT AVAILABLE)

61302-268-020

Unavailable

24

BRACKET, NUMBER PLATE *NH1* (BLACK) (NOT AVAILABLE)

84701-223-000B

Unavailable

25

BOLT, LIGHT CASE SETTING (NOT AVAILABLE)

90154-268-000

Unavailable

26

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

26

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

26

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

27

SCREW, PAN (4X12) This part replaces 93500-04012.

93500-04012-0A

$1.49

27

SCREW, PAN (4X12)

93500-04012-0A

$1.49

27

SCREW, PAN (4X12) This part replaces 93500-04012-1A.

93500-04012-0A

$1.49

27

SCREW, PAN (4X12) This part replaces 93500-04012-10.

93500-04012-0A

$1.49

28

SCREW, OVAL (3X60) This part replaces 93700-03060.

93700-03060-0A

$0.98

28

SCREW, OVAL (3X60)

93700-03060-0A

$0.98

28

SCREW, OVAL (3X60) This part replaces 93700-03060-0B.

93700-03060-0A

$0.98

28

SCREW, OVAL (3X60) This part replaces 93700-03060-02.

93700-03060-0A

$0.98

29

SCREW, OVAL (5X10) (NOT AVAILABLE)

93700-05010-0B

Unavailable

29

SCREW, OVAL (5X10) (SOURCE: VINTAGE PARTS INC.) This part replaces 93700-05010-02.

93700-05010-0B

Unavailable

30

NUT, HEX. (3MM) (NOT AVAILABLE)

94001-03000

Unavailable

30

NUT, HEX. (3MM)

94001-03000-0S

$1.49

31

NUT, HEX. (5MM) This part replaces 94001-05000.

94001-05000-0S

$2.74

31

NUT, HEX. (5MM)

94001-05000-0S

$2.74

32

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM)

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

33

WASHER, PLAIN (10MM)

94101-10200

$1.49

34

WASHER, SPRING (3MM)

94111-03000

$1.49

35

WASHER, SPRING (5MM)

94111-05000

$1.49

36

WASHER, SPRING (6MM)

94111-06000

$1.49

37

WASHER, SPRING (8MM) (NOT AVAILABLE)

94111-08200

Unavailable
