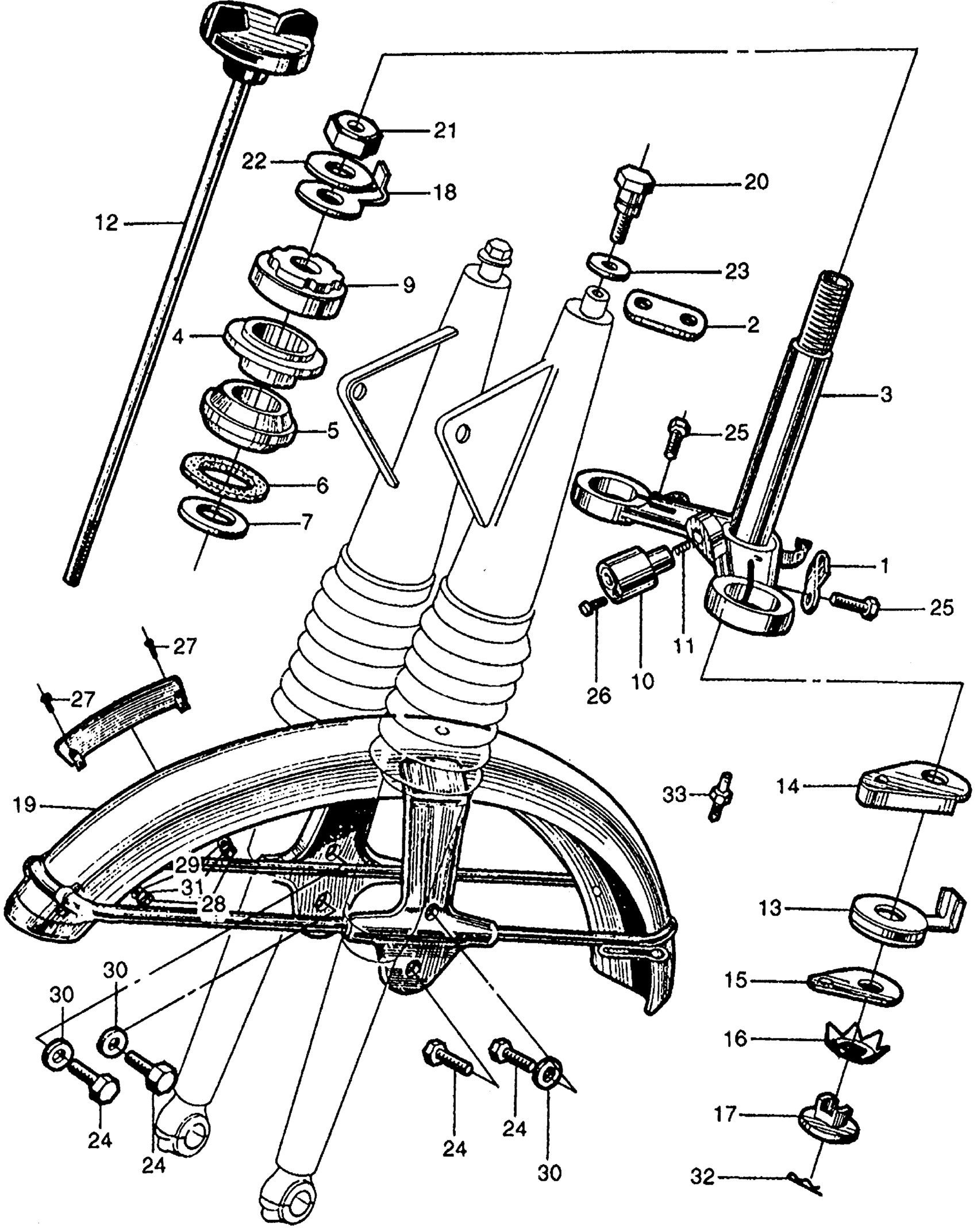

Honda CL160A MOTORCYCLE, JPN, VIN# CL160-1000001 CB/CL160STEERING STEM + FRONT FENDER Diagram

#

Description
Price

1

CLIP, FR. BRAKE CABLE (NOT AVAILABLE)

45465-216-000

Unavailable

2

KEEPER, HELMET (NOT AVAILABLE)

53126-216-810

Unavailable

3

STEM, STEERING (NOT AVAILABLE)

53200-216-000Z

Unavailable

4

RACE, STEERING STEM TOP CONE (NOT AVAILABLE)

53211-222-305

Unavailable

5

RACE, STEERING CONE (LOWER)

53212-200-305

$19.80

6

DUST SEAL, STEERING HEAD

53214-200-000

$2.92

7

WASHER, STEERING HEAD DUST SEAL

53215-200-000

$1.77

8

COVER, HANDLEBAR LOCK CASE (NOT AVAILABLE)

53215-230-000

Unavailable

9

THREAD, STEERING HEAD TOP This part replaces 53220-216-000.

53220-303-000

Unavailable

10

LOCK, HANDLEBAR (NOT AVAILABLE)

35010-230-010

Unavailable

10

LOCK, HANDLEBAR This part replaces 53600-230-000.

35010-230-010

Unavailable

11

SPRING, HANDLEBAR LOCK (NOT AVAILABLE)

53631-268-020

Unavailable

12

KNOB, STEERING DAMPER (NOT AVAILABLE)

53740-216-000

Unavailable

13

DISK, STEERING DAMPER FRICTION (NOT AVAILABLE) This part replaces 53750-216-000.

53750-307-000

Unavailable

14

PLATE A, STEERING DAMPER

53761-216-000

$4.52

15

PLATE B, STEERING DAMPER (NOT AVAILABLE)

53762-216-000

Unavailable

16

SPRING, STEERING DAMPER (NOT AVAILABLE)

53763-216-000

Unavailable

17

NUT, STEERING DAMPER SPRING

53764-283-000

Unavailable

18

SPRING, STEERING DAMPER LOCK (NOT AVAILABLE)

53765-216-000

Unavailable

19

FENDER, FR. *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE)

61100-223-000S

Unavailable

20

BOLT, FR. FORK (NOT AVAILABLE)

90123-273-000

Unavailable

21

NUT, STEERING HEAD STEM (NOT AVAILABLE)

90304-216-000

Unavailable

22

WASHER, STEERING STEM (NOT AVAILABLE)

90503-222-000

Unavailable

23

WASHER, FR. FORK (NOT AVAILABLE)

90506-273-000

Unavailable

24

BOLT, HEX. (8X10) This part replaces 92000-08010.

92101-08010-0A

$1.38

24

BOLT, HEX. (8X10) This part replaces 92000-08010-0A.

92101-08010-0A

$1.38

24

BOLT, HEX. (8X10) This part replaces 92100-08010-0A.

92101-08010-0A

$1.38

24

BOLT, HEX. (8X10)

92101-08010-0A

$1.38

32

PIN, LOCK (6MM)

94251-06000

$1.49

33

BOLT, FRICTION DISK ANCHOR (NOT AVAILABLE)

90118-268-000

Unavailable
