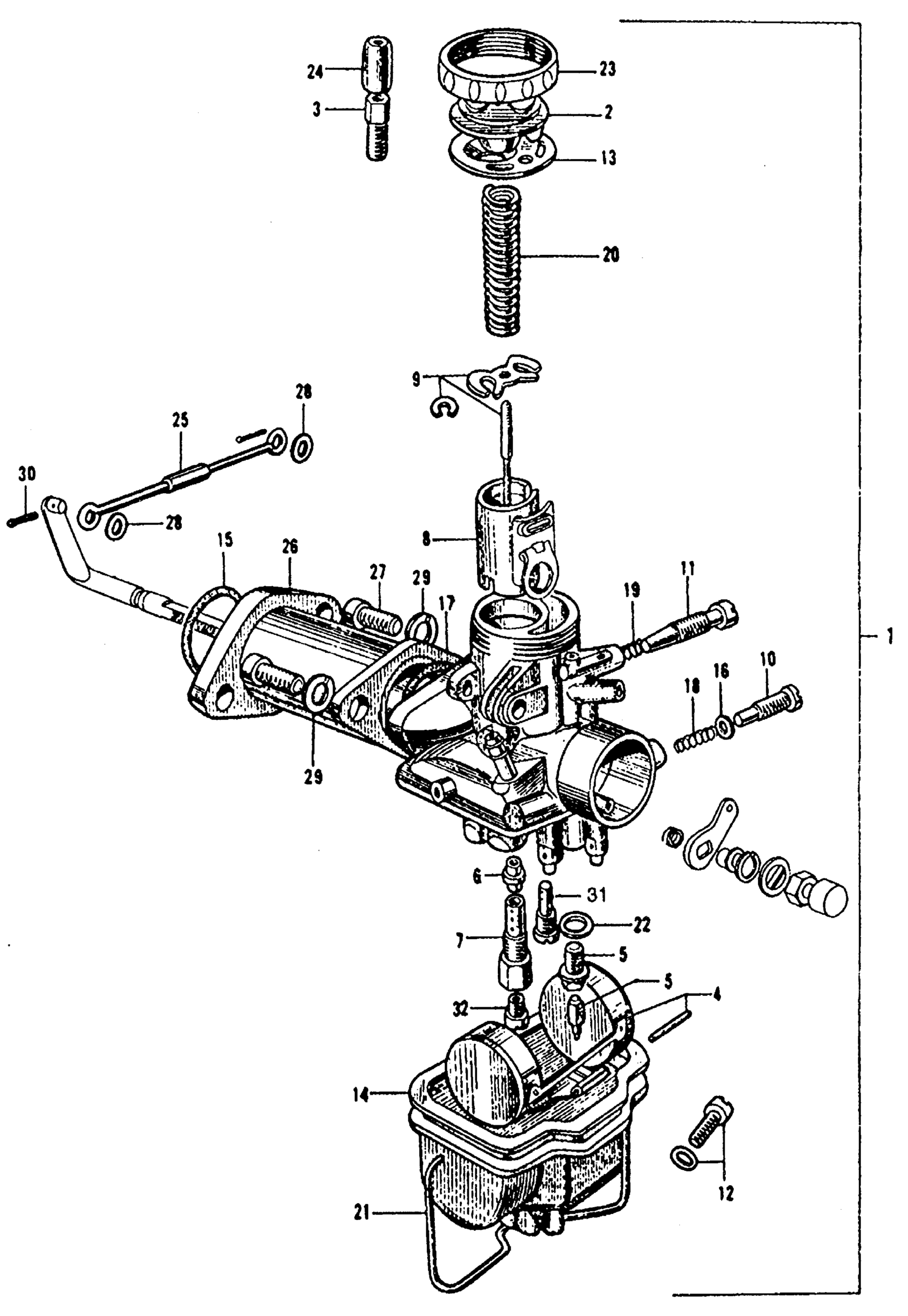

Honda CL160A MOTORCYCLE, JPN, VIN# CL160-1000001 CB/CL160RIGHT CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY., R. (NOT AVAILABLE)

16100-223-030

Unavailable

2

TOP, R. CARBURETOR (NOT AVAILABLE)

16014-235-004

Unavailable

2

TOP, R. CARBURETOR (NOT AVAILABLE) This part replaces 16111-217-004.

16014-235-004

Unavailable

3

ADJUSTER, CABLE (NOT AVAILABLE)

16118-217-004

Unavailable

4

FLOAT SET This part replaces 16013-046-004.

16013-116-700

$28.61

4

FLOAT SET

16013-116-700

$28.61

4

FLOAT SET This part replaces 16013-116-704.

16013-116-700

$28.61

4

FLOAT SET This part replaces 16122-201-004.

16013-116-700

$28.61

5

VALVE SET, FLOAT

16011-051-004

$16.40

5

VALVE SET, FLOAT This part replaces 16011-098-004.

16011-051-004

$16.40

5

VALVE SET, FLOAT This part replaces 16011-134-004.

16011-051-004

$16.40

5

VALVE SET, FLOAT This part replaces 16123-011-004.

16011-051-004

$16.40

5

VALVE SET, FLOAT This part replaces 16123-011-014.

16011-051-004

$16.40

5

VALVE SET, FLOAT This part replaces 16125-011-004.

16011-051-004

$16.40

6

NEEDLE, JET (NOT AVAILABLE)

16133-205-004

Unavailable

7

HOLDER, NEEDLE JET (NOT AVAILABLE)

16139-217-004

Unavailable

8

VALVE, THROTTLE (NOT AVAILABLE)

16141-217-004

Unavailable

9

NEEDLE, JET (NOT AVAILABLE)

16151-217-004

Unavailable

10

SCREW, AIR (NOT AVAILABLE)

16162-259-004

Unavailable

11

SCREW, THROTTLE STOP (NOT AVAILABLE)

16163-217-004

Unavailable

12

SCREW, DRAIN (NOT AVAILABLE)

16164-202-004

Unavailable

12

SCREW, DRAIN (NOT AVAILABLE) This part replaces 16164-225-004.

16164-202-004

Unavailable

13

WASHER, TOP (NOT AVAILABLE)

16171-217-004

Unavailable

14

WASHER, FLOAT CHAMBER

16172-030-004

Unavailable

15

O-RING (24X2.4)

16173-250-004

Unavailable

16

O-RING (2.8MM) (NOT AVAILABLE)

16175-260-004

Unavailable

17

O-RING (23X2.4) (NOT AVAILABLE)

16176-001-004

Unavailable

18

SPRING, AIR SCREW

16181-202-004

$3.70

19

SPRING, THROTTLE STOP (NOT AVAILABLE)

16182-011-004

Unavailable

20

SPRING, THROTTLE (NOT AVAILABLE)

16185-217-004

Unavailable

21

CLIP, FLOAT CHAMBER SET (NOT AVAILABLE)

16187-201-004

Unavailable

22

WASHER, FIBER (7MM) (NOT AVAILABLE)

16189-040-004

Unavailable

23

CAP, TOP (NOT AVAILABLE)

16193-217-004

Unavailable

24

CAP, CABLE SEALING This part replaces 16118-086-004.

16118-166-004

$8.08

24

CAP, CABLE SEALING

16118-166-004

$8.08

24

CAP, CABLE SEALING This part replaces 16118-190-004.

16118-166-004

$8.08

24

CAP, CABLE SEALING This part replaces 16194-028-004.

16118-166-004

$8.08

24

CAP, CABLE SEALING This part replaces 16194-040-004.

16118-166-004

$8.08

25

ROD, CHOKE LEVER (NOT AVAILABLE)

16250-217-004

Unavailable

26

ADAPTER, R. FLANGE (NOT AVAILABLE)

16034-235-004

Unavailable

26

ADAPTER, R. FLANGE (NOT AVAILABLE) This part replaces 16273-217-004.

16034-235-004

Unavailable

27

SCREW, PAN (6X14) This part replaces 93500-06014.

93500-06014-0A

$1.49

27

SCREW, PAN (6X14)

93500-06014-0A

$1.49

28

WASHER, PLAIN (5MM)

94101-05000

$1.49

29

WASHER, SPRING (6MM)

94111-06000

$1.49

30

PIN, SPLIT (1.0MM) This part replaces 94201-10100.

94201-10150

$1.49

30

PIN, SPLIT (1.0MM)

94201-10150

$1.49

31

JET, SLOW (#38) (NOT AVAILABLE)

99124-089-0380

Unavailable

31

JET, SLOW (#40) (NOT AVAILABLE)

99124-089-0400

Unavailable

31

JET, SLOW (#38) (NOT AVAILABLE)

99124-223-0350

Unavailable

31

JET, SLOW (#38) (NOT AVAILABLE) This part replaces 99124-223-0380.

99124-089-0380

Unavailable

31

JET, SLOW (#40) (NOT AVAILABLE) This part replaces 99124-223-0400.

99124-089-0400

Unavailable

31

JET, SLOW (#38) (NOT AVAILABLE) This part replaces 99139-03804.

99124-089-0380

Unavailable

32

JET, MAIN (#100) (NOT AVAILABLE)

99102-10004

Unavailable

32

JET, MAIN (#92) (NOT AVAILABLE)

99114-051-0920

Unavailable

32

JET, MAIN (#98) (NOT AVAILABLE)

99114-051-0980

Unavailable

32

JET, MAIN (#90) (NOT AVAILABLE) This part replaces 99114-09004.

99114-051-0900

Unavailable

32

JET, MAIN (#92) (NOT AVAILABLE) This part replaces 99114-09204.

99114-051-0920

Unavailable

32

JET, MAIN (#95) This part replaces 99114-09504.

99114-051-0950

Unavailable

32

JET, MAIN (#98) (NOT AVAILABLE) This part replaces 99114-09804.

99114-051-0980

Unavailable

32

JET, MAIN (#100) (NOT AVAILABLE) This part replaces 99114-10004.

99102-10004

Unavailable
