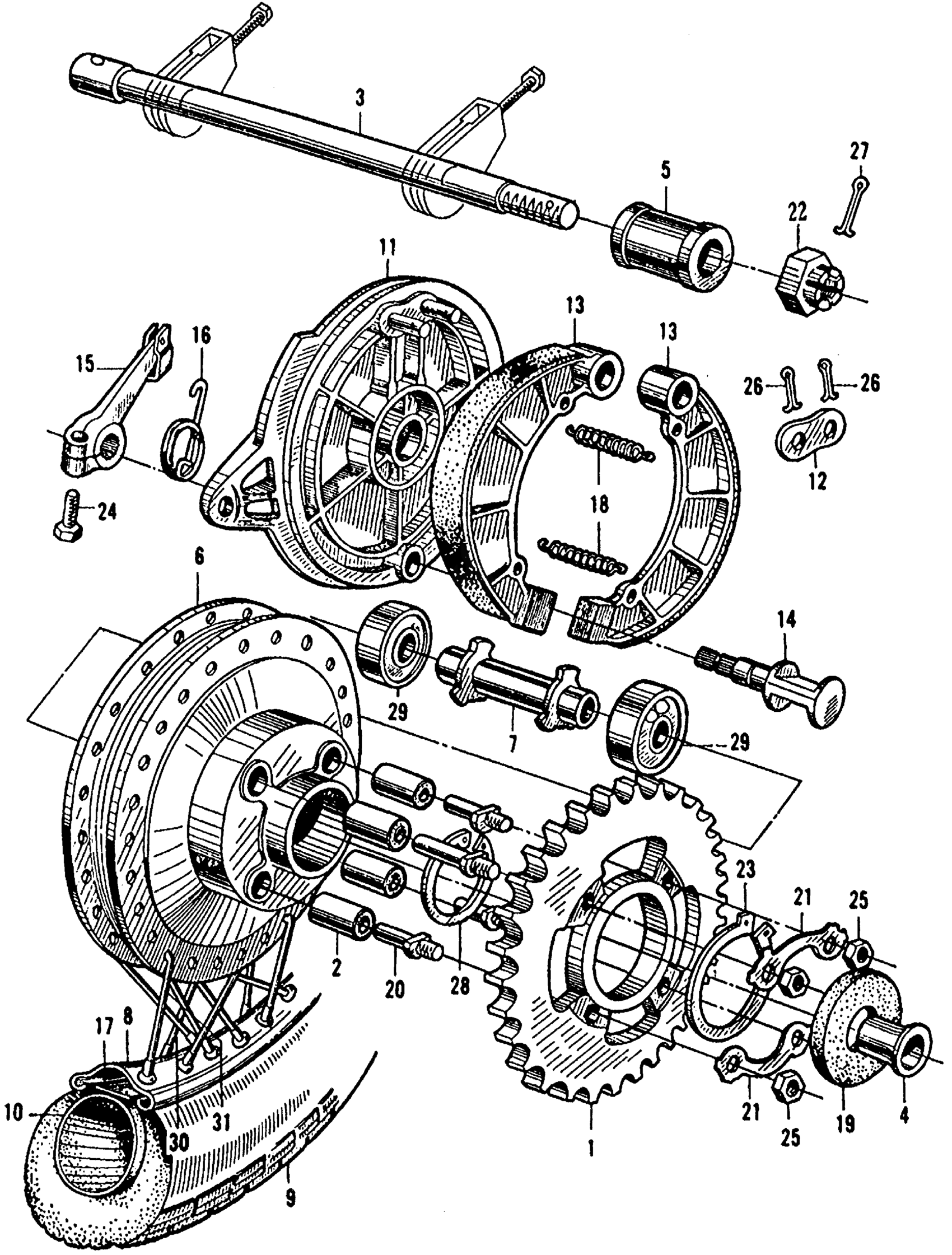

Honda CL160A MOTORCYCLE, JPN, VIN# CL160-1000001 CB/CL160REAR WHEEL Diagram

#

Description
Price

1

SPROCKET, FINAL DRIVEN (41T) (NOT AVAILABLE)

41201-107-000

Unavailable

1

SPROCKET, FINAL DRIVEN (39T) (NOT AVAILABLE)

41201-107-810

Unavailable

1

SPROCKET, FINAL DRIVEN (39T) (NOT AVAILABLE) This part replaces 41201-216-830.

41201-107-810

Unavailable

1

SPROCKET, FINAL DRIVEN (41T) (NOT AVAILABLE) This part replaces 41201-216-850.

41201-107-000

Unavailable

2

BUSH, RR. WHEEL DAMPER

41241-222-000

$16.64

2

BUSH, RR. WHEEL DAMPER This part replaces 41241-307-000.

41241-222-000

$16.64

3

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-216-000

Unavailable

4

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)

42311-216-000

Unavailable

5

COLLAR, RR. BRAKE PANEL SIDE (NOT AVAILABLE)

42313-216-000

Unavailable

6

HUB, RR. WHEEL (NOT AVAILABLE)

42601-216-000

Unavailable

7

COLLAR, RR. AXLE DISTANCE (NOT AVAILABLE)

42620-216-000

Unavailable

8

RIM, RR. WHEEL (NOT AVAILABLE)

42701-216-000

Unavailable

9

TIRE, RR. WHEEL (3.00-18) (4PR) (BS) (NOT AVAILABLE)

42711-223-813

Unavailable

9

TIRE, RR. WHEEL (3.00-18) (4PR) (NITTO) (NOT AVAILABLE) This part replaces 42711-268-000.

42711-307-006

Unavailable

9

TIRE, RR. WHEEL (3.00-18) (4PR) (NITTO) (NOT AVAILABLE)

42711-307-006

Unavailable

10

TUBE (275/300-18) (IRC) This part replaces 08400-21600.

42712-KC6-005

Unavailable

10

TUBE (275/300-18) (IRC) This part replaces 42712-166-004.

42712-KC6-005

Unavailable

10

TUBE (275/300-18) (IRC) This part replaces 42712-216-000.

42712-KC6-005

Unavailable

10

TUBE (275/300-18) (IRC) This part replaces 44712-028-000.

42712-KC6-005

Unavailable

10

TUBE (275/300-18) (IRC) This part replaces 44712-150-005.

42712-KC6-005

Unavailable

10

TUBE (275/300-18) (IRC) This part replaces 44712-205-000.

42712-KC6-005

Unavailable

10

TUBE (275/300-18) (IRC) This part replaces 44712-268-000.

42712-KC6-005

Unavailable

10

TUBE (275/300-18) (IRC) This part replaces 44712-268-222.

42712-KC6-005

Unavailable

10

TUBE (275/300-18) (IRC) This part replaces 44712-315-009.

42712-KC6-005

Unavailable

11

PANEL, RR. BRAKE (NOT AVAILABLE)

43100-216-000

Unavailable

12

WASHER, ANCHOR PIN

43102-319-000

$6.21

12

WASHER, ANCHOR PIN This part replaces 43106-222-300.

43102-319-000

$6.21

13

SHOE, RR. BRAKE This part replaces 43120-216-000.

43120-458-305

Unavailable

14

CAM, RR. BRAKE (NOT AVAILABLE)

43141-216-000

Unavailable

15

ARM, RR. BRAKE (NOT AVAILABLE)

43410-216-000

Unavailable

16

SPRING, RR. BRAKE ARM (NOT AVAILABLE)

43437-216-000

Unavailable

17

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-268-003.

42713-304-003

$6.69

17

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-268-810.

42713-304-003

$6.69

17

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-340-006.

42713-304-003

$6.69

17

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 44713-205-000.

42713-304-003

$6.69

18

SPRING, BRAKE SHOE (NOT AVAILABLE)

45133-216-000

Unavailable

19

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

19

DUST SEAL, WHEEL DAMPER (NOT AVAILABLE) This part replaces 90757-216-000.

90757-216-003

Unavailable

19

DUST SEAL, WHEEL DAMPER (NOT AVAILABLE)

90757-216-003

Unavailable

20

BOLT, DRIVEN SPROCKET FIXING

90128-216-000

$5.66

21

WASHER A3, TONGUED This part replaces 90522-222-000.

94108-13000

$1.49

21

WASHER A3, TONGUED This part replaces 90523-222-000.

94108-13000

$1.49

21

WASHER A3, TONGUED

94108-13000

$1.49

22

NUT, RR. WHEEL AXLE (NOT AVAILABLE)

90306-273-000

Unavailable

23

CIRCLIP (58MM)

90664-216-000

$5.55

24

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

24

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

24

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

25

NUT, HEX. (8MM) This part replaces 94002-08000.

94031-08000

$1.49

25

NUT, HEX. (8MM)

94031-08000

$1.49

26

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

26

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

26

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

26

PIN, SPLIT (2.5X30)

94201-25300

$1.49

26

PIN, SPLIT (2.5X30)

94201-25300

$1.49

27

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

27

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

27

PIN, SPLIT (3.0X45)

94201-30450

$1.49

28

CIRCLIP (INNER) (47MM)

94520-47000

$2.34

28

CIRCLIP (INNER) (47MM)

94521-47000

$2.39

28

CIRCLIP (INNER) (47MM) This part replaces 94524-47000.

94521-47000

$2.39

29

BEARING, RADIAL BALL (6303U) This part replaces 96140-63030.

96140-63030-10

$14.48

29

BEARING, RADIAL BALL (6303U) This part replaces 96140-63030-00.

96140-63030-10

$14.48

29

BEARING, RADIAL BALL (6303U)

96140-63030-10

$14.48

30

SPOKE A (NOT AVAILABLE)

97284-52148-1

Unavailable

31

SPOKE B

97682-52146-1

Unavailable
