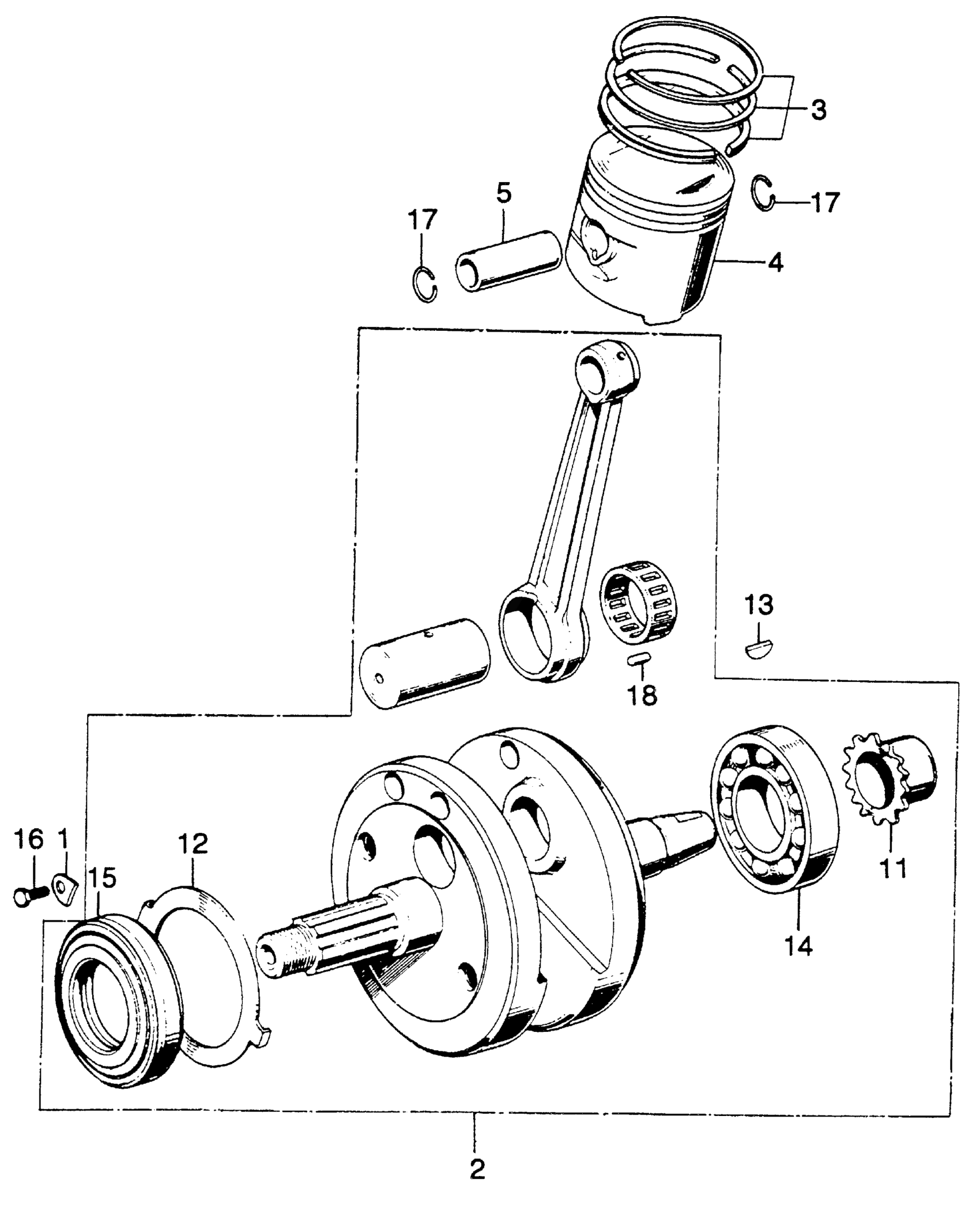

Honda CL125SA MOTORCYCLE, JPN, VIN# CL125S-1000001 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

PLATE, BEARING SETTING (NOT AVAILABLE)

11112-107-760

Unavailable

2

CRANKSHAFT (NOT AVAILABLE)

13000-331-770

Unavailable

3

RING SET, PISTON (STD) (TEIKOKU) This part replaces 13011-324-014.

13011-330-005

Unavailable

3

RING SET, PISTON (OS 0.25) (TEIKOKU) | (Optional). This part replaces 13021-324-014.

13021-330-005

Unavailable

3

RING SET, PISTON (OS 0.50) (TEIKOKU) | (Optional). This part replaces 13031-324-014.

13031-330-005

$70.03

3

RING SET, PISTON (0.75) (TEIKOKU) (NOT AVAILABLE) | (Optional). This part replaces 13041-324-014.

13041-330-005

Unavailable

3

RING SET, PISTON (1.00) (TEIKOKU) (NOT AVAILABLE) | (Optional). This part replaces 13051-324-014.

13051-330-005

Unavailable

3

RING SET, PISTON (STD) (TEIKOKU)

13011-330-005

Unavailable

3

RING SET, PISTON (OS 0.25) (TEIKOKU) | (Optional).

13021-330-005

Unavailable

3

RING SET, PISTON (OS 0.50) (TEIKOKU) | (Optional).

13031-330-005

$70.03

3

RING SET, PISTON (0.75) (TEIKOKU) (NOT AVAILABLE) | (Optional).

13041-330-005

Unavailable

3

RING SET, PISTON (1.00) (TEIKOKU) (NOT AVAILABLE) | (Optional).

13051-330-005

Unavailable

4

PISTON (OS 0.25) | (Optional). This part replaces 13102-324-000.

13102-323-405

Unavailable

4

PISTON (0.50) | (Optional). This part replaces 13103-324-000.

13103-323-405

Unavailable

4

PISTON (0.75) | (Optional). This part replaces 13104-324-000.

13104-330-000

Unavailable

4

PISTON This part replaces 13101-324-000.

13101-323-405

Unavailable

4

PISTON This part replaces 13101-330-000.

13101-323-405

Unavailable

4

PISTON (OS 0.25) | (Optional).

13102-323-405

Unavailable

4

PISTON (OS 0.25) | (Optional). This part replaces 13102-330-000.

13102-323-405

Unavailable

4

PISTON (0.50) | (Optional). This part replaces 13103-330-000.

13103-323-405

Unavailable

4

PISTON (0.75) | (Optional).

13104-330-000

Unavailable

4

PISTON (1.00) | (Optional).

13105-330-000

Unavailable

5

PIN, PISTON

13111-286-000

$26.03

5

PIN, PISTON

13111-440-000

$24.55

11

SPROCKET, TIMING (16T) This part replaces 14311-107-000.

14311-958-000

$41.06

11

SPROCKET, TIMING (16T)

14311-958-000

$41.06

12

WASHER, THRUST (30MM) (NOT AVAILABLE)

90451-324-300

Unavailable

13

KEY, WOODRUFF

90741-253-000

Unavailable

14

BEARING, RADIAL BALL (6305) (NACHI) This part replaces 91001-071-000.

91001-071-003

$46.05

14

BEARING, RADIAL BALL (6305) (NACHI)

91001-071-003

$46.05

15

BEARING, ROLLER

91011-107-760

Unavailable

16

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

16

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

16

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

17

CLIP, PISTON PIN (15MM)

94601-15000

$1.49

18

ROLLER (3X10) (NOT AVAILABLE)

96220-30100

Unavailable
